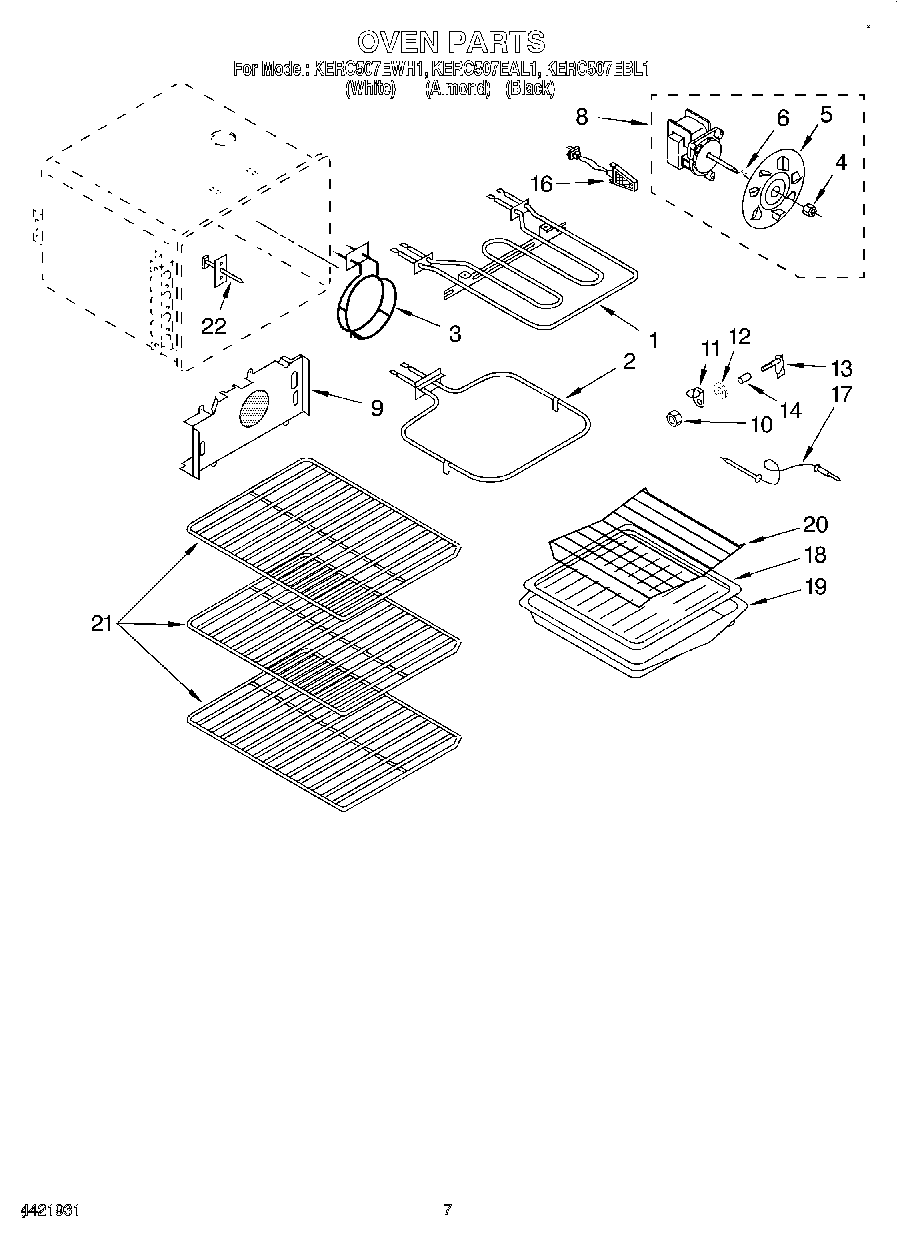

KERC507EWH1 05 – OVEN
Written by
in
KERC507EWH1 05 – OVEN
Products
Position
Product
1
Element, Broil
2
ELMNT-BAKE
3
340184 Whirlpool Screw
3
WPW10280189 Whirlpool Element
4
Nut (Left Hand)
5
Fan
6
E-Ring
8
Assembly, Fan
8
Screw, 10 x 1/2
9
Baffle, Convection
10
Lock-Nut, Cvr.Jack
11
Jack Cover
12
Gasket, Meat Probe
13
Receptacle, Probe
14
Spacer – Tubing
16
WP4448972 Whirlpool Oven Light
17
Probe
19
4396923 Whirlpool Broil Pan Set Gray Porcelain
20
Rack, Roasting
21
Rack, Standard (3)
22
Screw
22
Sensor, Heat
←
