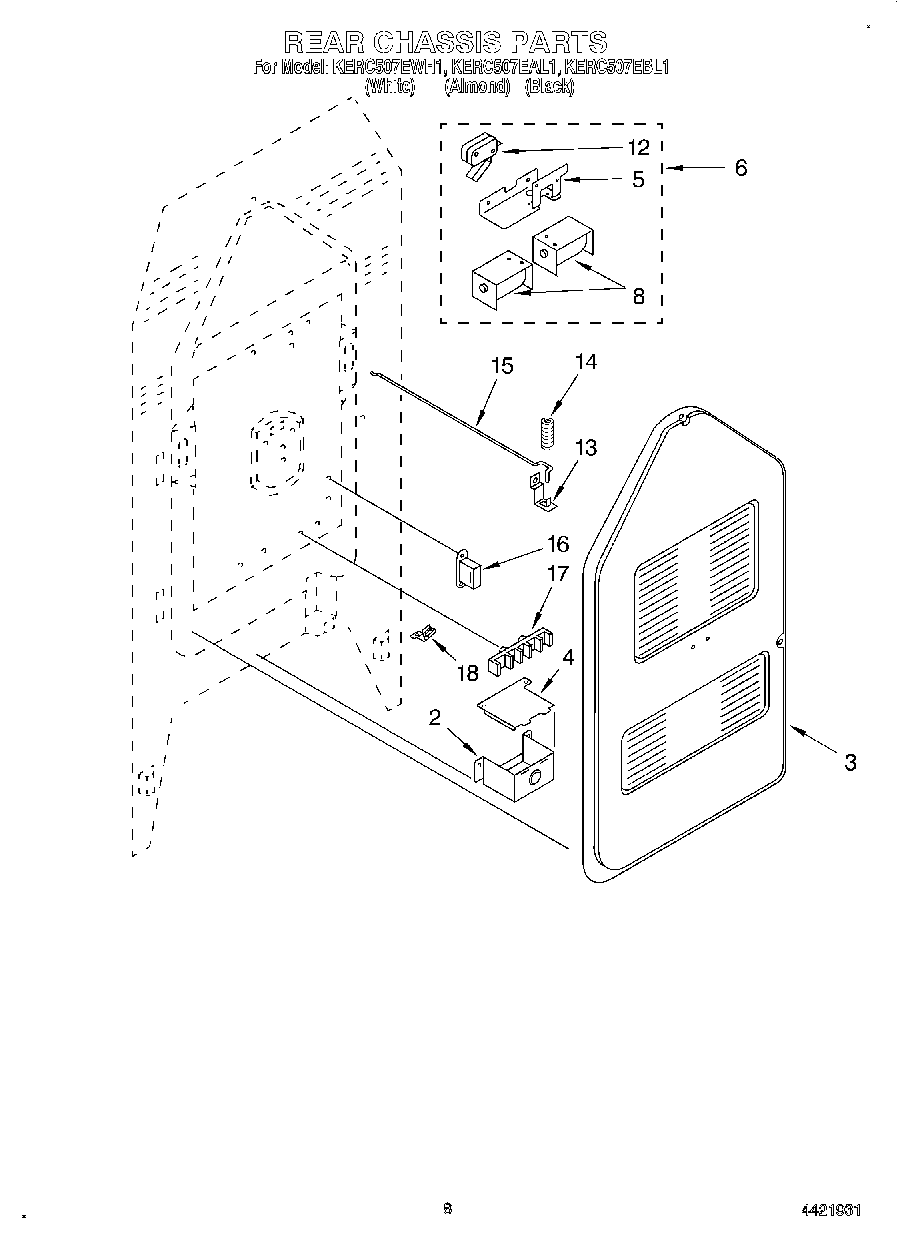

KERC507EWH1 06 – REAR CHASSIS, LIT/OPTIONAL

KERC507EWH1 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC507EWH1 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL 9781303
	WPL LIT9780689
	WPL LIT9752381
	WPL 9781299
	WPL 9781298
	WPL 9781214
	WPL 9752377
	WPL 9752343
	WPL 9750376
	WPL 3191042
	WPW10339879 Whirlpool Wire Tie
	WPL LIT9781538
	WPL 9752364
	WPL LIT9780959
	Label, Instruction (Lamp Cover)
	Video, K/A T/C Ovens
	Use And Care Guide
	Guide, Auto Set
	WPL 9752368
	WPL 9752365
	WPL 9781541
	WPL LIT9752387
2	WPL 9752344
3	Screw, (2) 10 x 3/8
3	Panel, Rear
4	Cover, Terminal Box
5	Bracket, Lock
6	Oven Lock Assembly
8	Screw, (2) 10-32 x 5/16
8	Solenoid
12	Screw, (2)
12	Nut (2)
12	Switch, Interlock
13	Bracket, Spring
14	Spring, Door Lock
15	Rod, Lock
16	WP4159387 Whirlpool Compactor Screw
16	Washer
16	Ballast
17	WP112432 Whirlpool Nut Assembly
17	Screw, (2) 10-16 x 1
17	WP8203546 Whirlpool Terminal Block
18	Golden Harvest (Uncut)
18	Paint, Spray (13 Oz.) (Platinum)
18	Ground Strap
18	Grease
18	350930 Whirlpool White Spray Paint
18	350956 Whirlpool Spray Assembly
18	72017 Whirlpool Appliance Touch-Up Paint White
18	799344 Whirlpool Refrigerator Paint
18	WP72107 Whirlpool Touchup
18	Almond (Uncut)
18	Wire, 25“ Roll (White 14 GA.)
18	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18	8212471 Whirlpool Oven Paint
18	Toast
18	72113 Whirlpool Touch-Up Paint
18	Golden Harvest
18	1
18	Wire (14 Ga. 200 c Brown)
18	18 Ga. 80~c Rating (Red)
18	WPL 799832
18	WPW10208653 Whirlpool Insulation
18	FOIL, ALUMINUM OVEN (18“ X 25 )
18	Wire, 25` Roll (Black 14 Ga.)
18	Wire, 25` Roll (Red 14 Ga.)
18	285006 Whirlpool Spray
18	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18	Paint, Spray 13 Oz. (Avocado)
18	paint, spray 13 oz. (coffee)
18	Paint, Touch-Up 1/2 Oz. (Coffee)
18	Clip, Ground Wire
18	511873 Whirlpool Refrigerator Paint
18	350942 Whirlpool Spray Paint
18	Wire (12 Ga. 150 c Black)
18	Wire (14 Ga. 150 c Yellow)
18	Wire (14 Ga. 150 c Orange)
18	Wire (14 Ga. 150 c Green)
18	Wire (14 Ga. 150 c Brown)
18	Wire (14 Ga. 150 c Blue)
18	Enamal, Toast (1 Qt. Uncut)
18	242831 Whirlpool Oven Wire
18	Platinum (Uncut)
18	WPL 72112
18	72109 Whirlpool Dacor Avocado Touch-Up Paint
