KERC507EWH2 01 – COOKTOP

Products

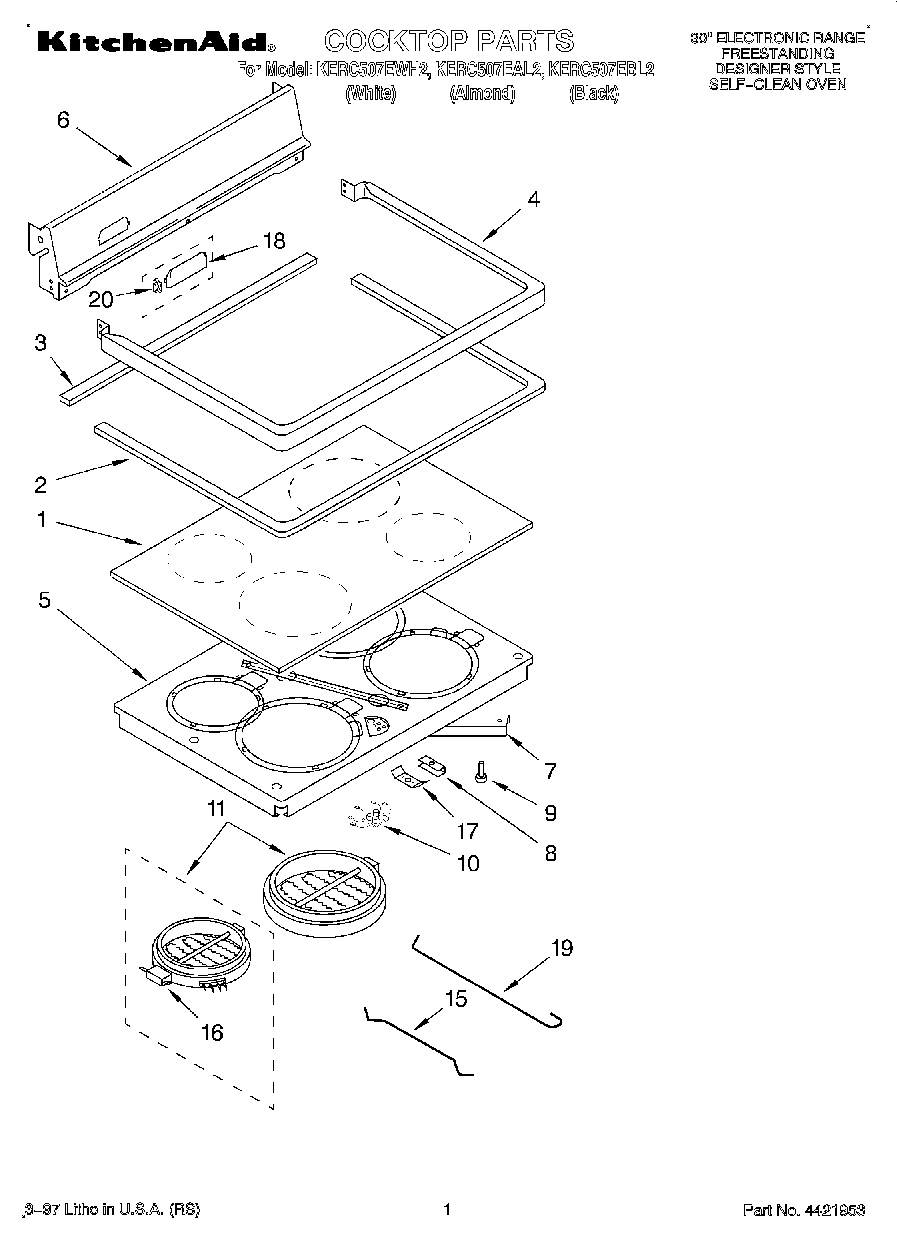

Position	Product
1	Cooktop, Ceran (Almond Mdl.)
1	Cooktop, Ceran (White Mdl.)
1	Cooktop, Ceran (Black Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Black)
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (Almond)
6	Back Splash (Black)
6	Back Splash (White)
6	Back Splash (Screw (4) 10AB x 1/2“)
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (8“ R.R. 2100W)
11	W10823694 Whirlpool Surface Element
11	Element, Surface (6“ L.R. 1400W)
11	Element, Surface (7“ R.F. 1700W)
15	Rod, Small Ceran Element
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2400W – LF)
17	WP9781235 Whirlpool Clip
18	Cover, Vent (Almond)
18	Cover, Vent (White)
18	Cover, Vent (Black)
19	Rod, Large Ceran Element
20	Clip, Vent Cover
