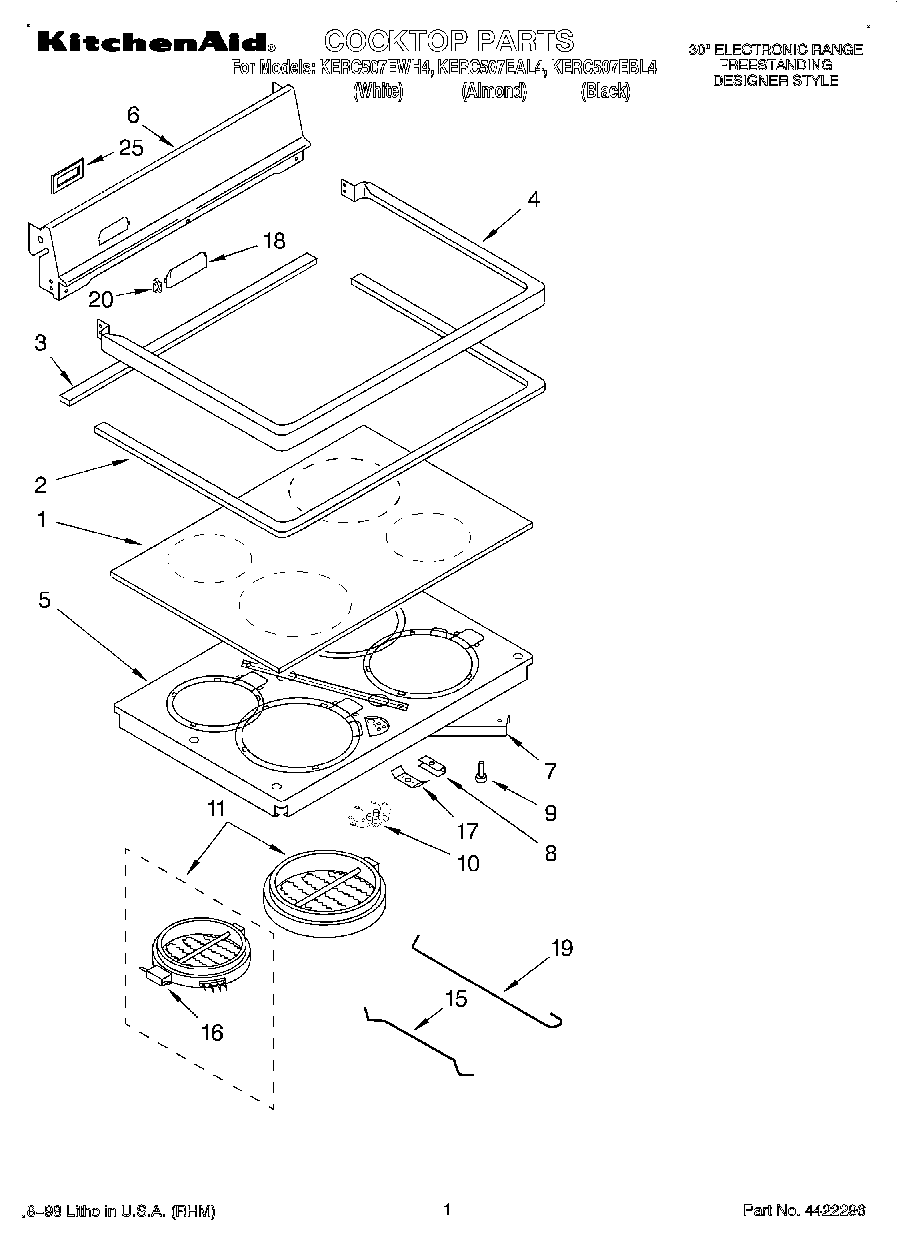

KERC507EWH4 01 – COOKTOP

KERC507EWH4 01 – COOKTOP

Written by

in

KERC507EWH4 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (White Mdl.)
1	Cooktop, Ceran (Black Mdl.)
1	Cooktop, Ceran (Almond Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (Black)
5	Support, Element
6	Back Splash (Black)
6	Back Splash (White)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (Almond)
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Screw, (4) 10PH-B x 3/4
8	Support Clip (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (8“ R.R. 2100W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
11	W10823694 Whirlpool Surface Element
15	Rod, Small Ceran Element
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp (2400W – LF)
17	WP9781235 Whirlpool Clip
18	Cover, Vent (Black)
18	Cover, Vent (Almond)
18	Cover, Vent (White)
19	Rod, Large Ceran Element
20	Clip, Vent Cover
25	Vent Gasket
