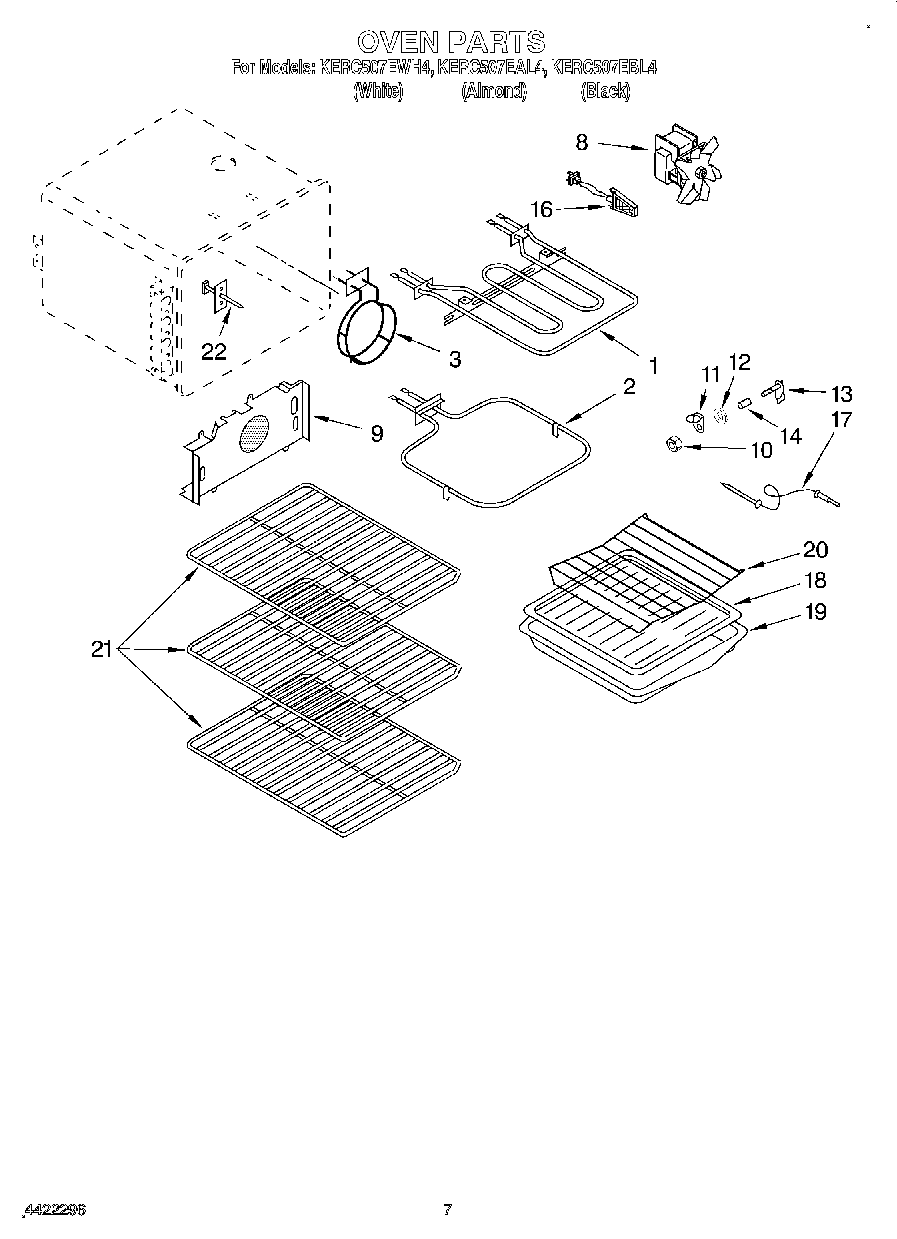

KERC507EWH4 05 – OVEN

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	WPW10280189 Whirlpool Element
3	340184 Whirlpool Screw
8	Fan Assembly
9	Screw
9	Baffle, Convection
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Gasket
13	Receptacle, Probe
14	Spacer – Tubing
16	Screw (2)
16	WP4448972 Whirlpool Oven Light
17	Probe
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Screw
22	Sensor, Heat
