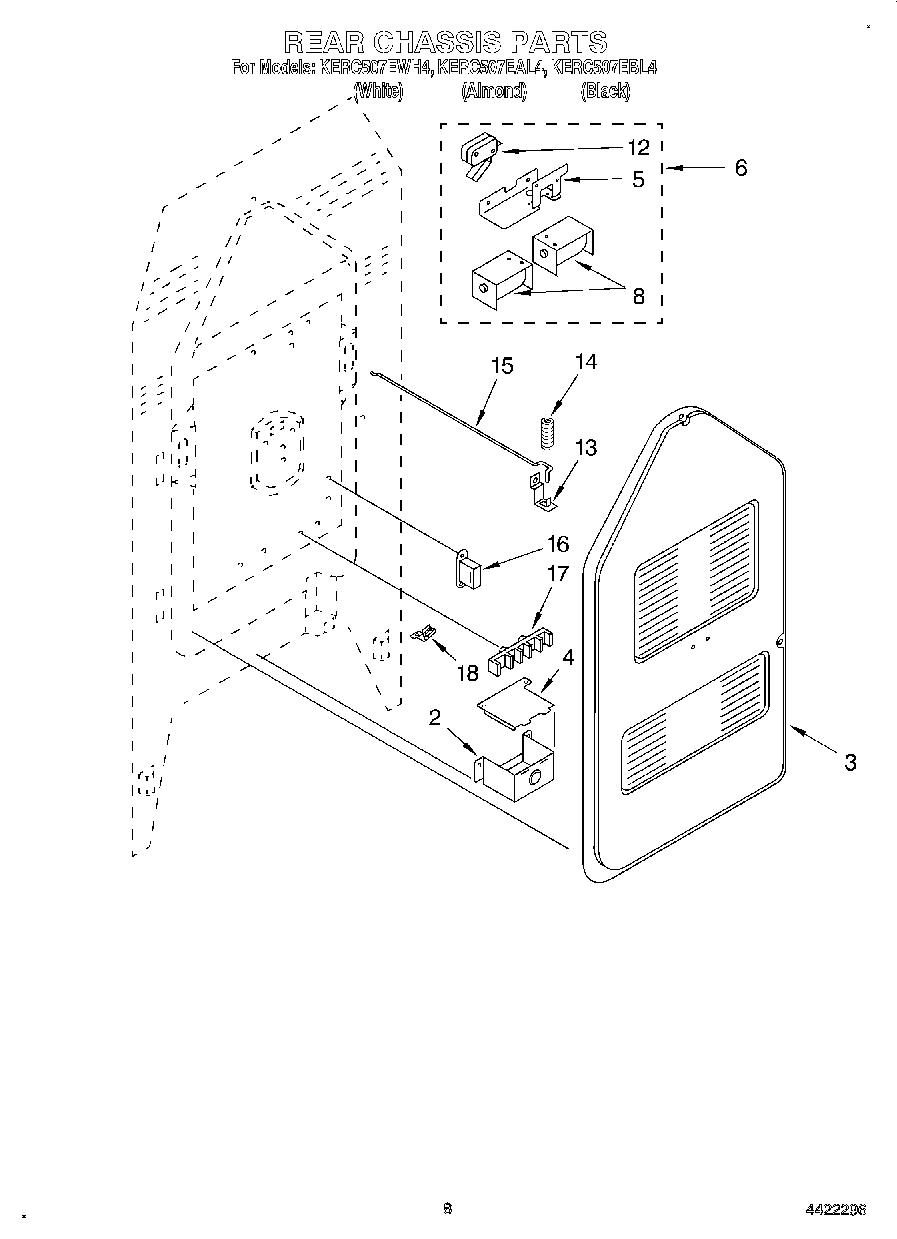

KERC507EWH4 06 – REAR CHASSIS, LIT/OPTIONAL

KERC507EWH4 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC507EWH4 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL 9781567
	WPL 9781214
	WPL 9752377
	WPL 9752343
	WPL LIT3184110
	WPL 9750376
	WPL LIT9752776
	WPL LIT9752381
	WPL LIT9752387
	WPL LIT9780689
	WPW10339879 Whirlpool Wire Tie
	Literature Parts (Cookbook (T/C Oven))
	WPL 9751139
	WPL 9752365
	Safer Cooking Tips
	WPL 9753509
	WPL LIT9753481
	WPL LIT9753308
	Label, Instruction (Lamp Cover)
	Light, Indicator
	WPL 9752771
	WPL 9752368
2	WPL 9752344
3	Panel, Rear
3	Screw (4) 10 x 3/8
4	Cover, Terminal Box
5	Bracket, Lock
6	Oven Lock Assembly
8	Screw (2) 10-32 x 5/16
8	Solenoid
12	Switch, Interlock
12	Screw, (2)
12	Nut (2)
13	Bracket, Spring
14	Spring, Door Lock
15	Rod, Lock
16	Ballast
16	Washer (2)
16	WP4159387 Whirlpool Compactor Screw
17	Screw, (2) 10-16 x 1
17	WP112432 Whirlpool Nut Assembly
17	WP8203546 Whirlpool Terminal Block
18	350930 Whirlpool White Spray Paint
18	Paint, Spray (13 Oz.) (Platinum)
18	Enamal, Toast (1 Qt. Uncut)
18	Platinum (Uncut)
18	WPL 72112
18	350942 Whirlpool Spray Paint
18	511873 Whirlpool Refrigerator Paint
18	Toast
18	Golden Harvest
18	Golden Harvest (Uncut)
18	350956 Whirlpool Spray Assembly
18	72017 Whirlpool Appliance Touch-Up Paint White
18	799344 Whirlpool Refrigerator Paint
18	WP72107 Whirlpool Touchup
18	Almond (Uncut)
18	Grease
18	8212471 Whirlpool Oven Paint
18	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18	72113 Whirlpool Touch-Up Paint
18	WPL 799832
18	Wire (14 Ga. 200 c Brown)
18	WPW10208653 Whirlpool Insulation
18	Wire (14 Ga. 150 c Brown)
18	Wire (14 Ga. 150 c Blue)
18	285006 Whirlpool Spray
18	72109 Whirlpool Dacor Avocado Touch-Up Paint
18	242831 Whirlpool Oven Wire
18	Paint, Touch-Up 1/2 Oz. (Coffee)
18	paint, spray 13 oz. (coffee)
18	Paint, Spray 13 Oz. (Avocado)
18	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18	Wire, 25“ Roll (White 14 GA.)
18	Wire (14 Ga. 150 c Green)
18	Ground Strap
18	FOIL, ALUMINUM OVEN (18“ X 25 )
18	1
18	18 Ga. 80~c Rating (Red)
18	Wire, 25` Roll (Black 14 Ga.)
18	Wire (12 Ga. 150 c Black)
18	Wire, 25` Roll (Red 14 Ga.)
18	Wire (14 Ga. 150 c Yellow)
18	Wire (14 Ga. 150 c Orange)
18	Clip, Ground Wire
