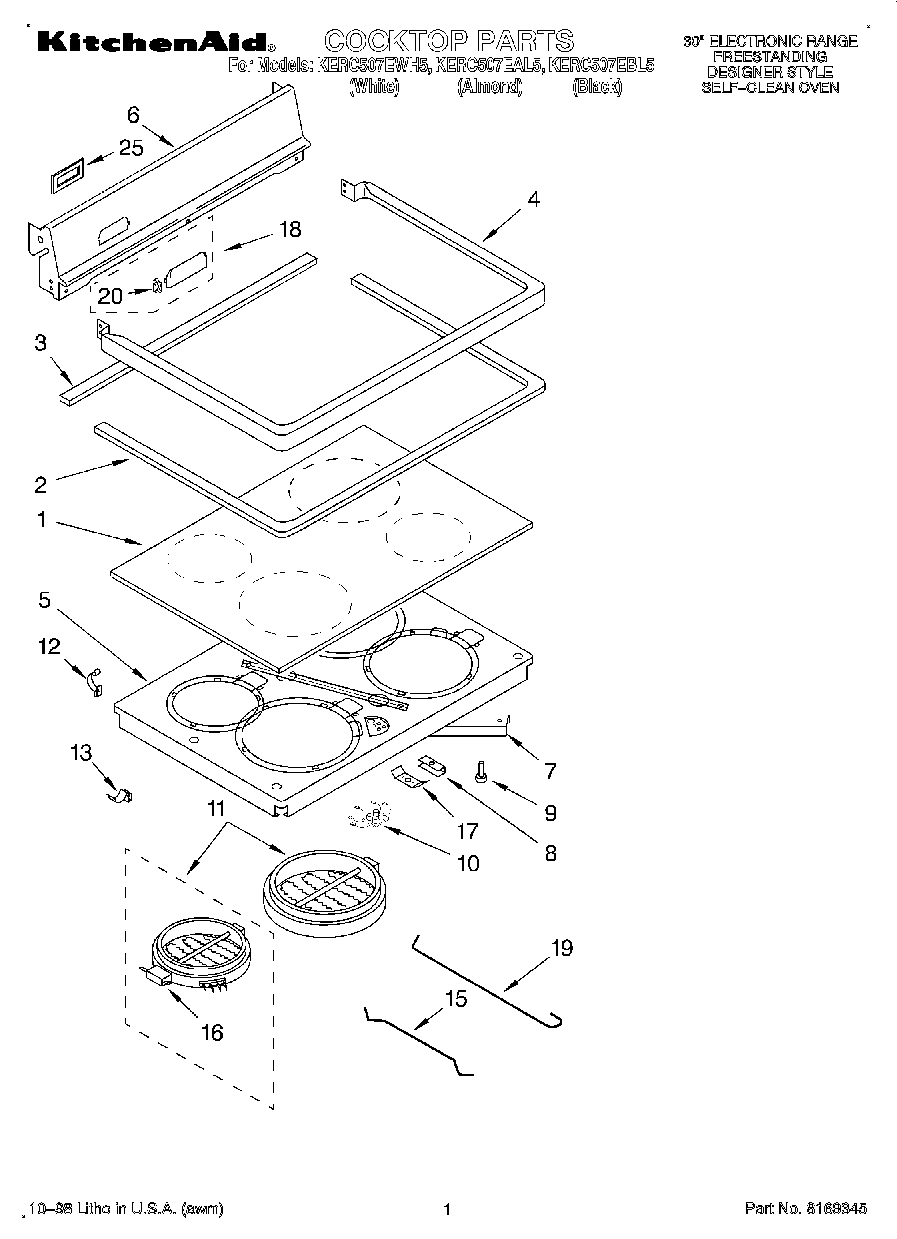

KERC507EWH5 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Almond Mdl.)
1	Cooktop, Ceran (Black Mdl.)
1	Cooktop, Ceran (White Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Black)
5	Support, Element
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (Almond)
6	Back Splash (White)
6	Back Splash (Black)
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823694 Whirlpool Surface Element
11	W10823698 Whirlpool Surface Element Right Rear
11	W10823699 Whirlpool Right Front Surface Element
11	Element, Surface (2200W – RR)
12	8528351 Whirlpool Clip
13	WP90016 Whirlpool Clip
15	Rod, Small Ceran Element
16	Limiter, Temp. (LF)
16	Limiter, Temp. (LR-RF-RR)
17	WP9781235 Whirlpool Clip
18	Cover, Vent (Black)
18	Cover, Vent (Almond)
18	Cover, Vent (White)
19	Rod, Large Ceran Element
20	Clip, Vent Cover
25	Vent Gasket
