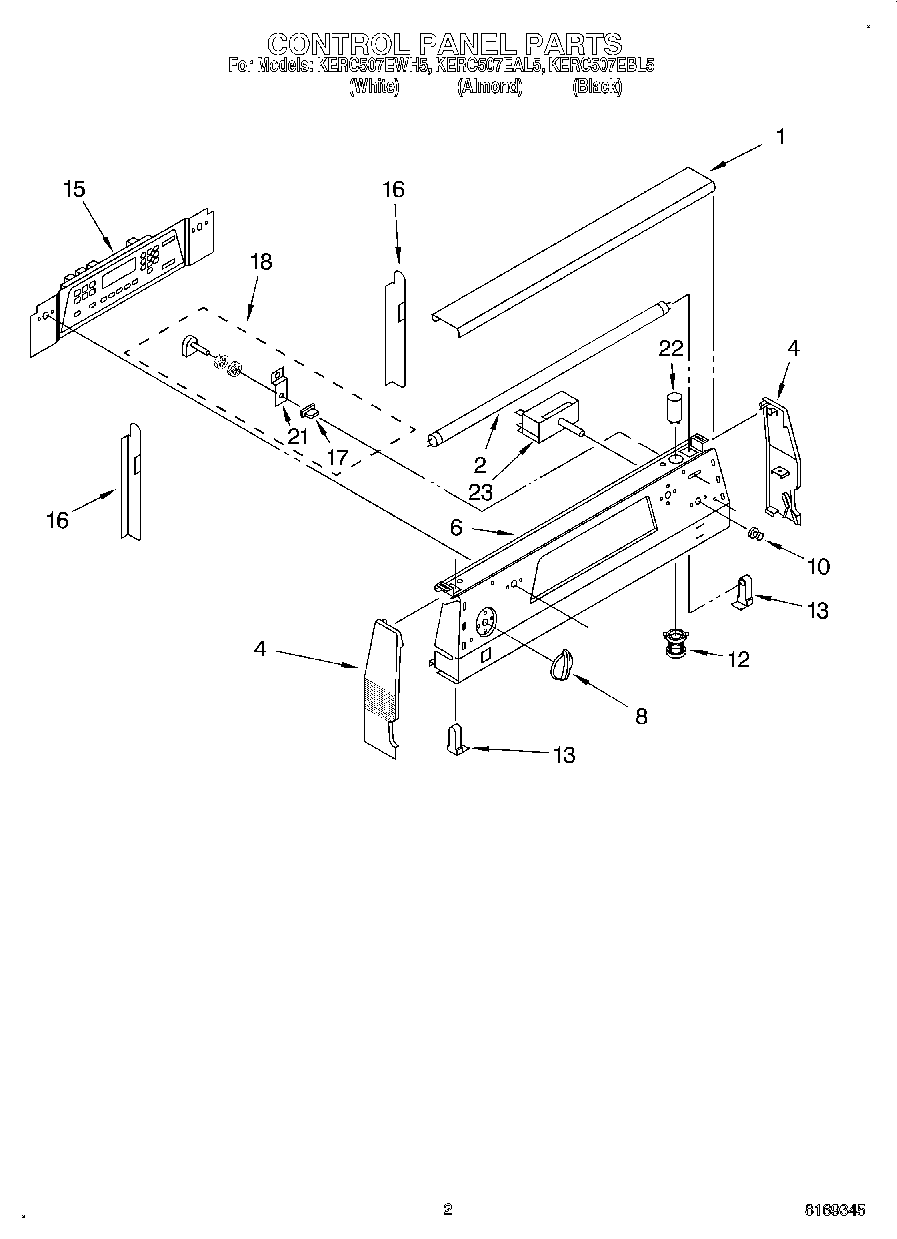

KERC507EWH5 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover (Almond)
1	Lamp Cover (White)
1	Lamp Cover (Black)
2	WP95292 Whirlpool Fluorescent Light Bulb
4	End Cap (Left Hand) (Black)
4	End Cap (Right Hand) (Black)
4	End Cap (Right Hand) (White)
4	End Cap (Right Hand) (Almond)
4	End Cap (Left Hand) (White)
4	End Cap (Left Hand) (Almond)
4	WP4159387 Whirlpool Compactor Screw
6	Panel, Control (Screw, (2) 8 x 3/8)
6	Panel, Control (White)
6	Panel, Control (Almond)
6	Panel, Control (Black)
8	WP9750372FF Whirlpool Knob
8	Knobs, Control (4) (Almond)
8	WP9750372FW Whirlpool Knob Assembly
10	WP9750343 Whirlpool Light Lens
12	Starter, Holder
13	Receptacle, Light
15	Oven Control Assembly (White)
15	Oven Control Assembly (Almond)
15	Oven Control Assembly (Black)
16	Brace, Control Pnl
17	Button, Light (Black)
17	Button, Light (White)
17	Button, Light (Almond)
18	Switch, Light
21	Bracket, Switch
22	Starter, Light
23	WP3400882 Whirlpool Screw
23	WP9750638 Whirlpool Infinite Switch
23	8203538 Whirlpool Oven Infinite Switch
23	WP9750639 Whirlpool Infinite Switch
23	WP9750641 Whirlpool Infinite Switch
23	Infinite Switch (Insulation, Control)
