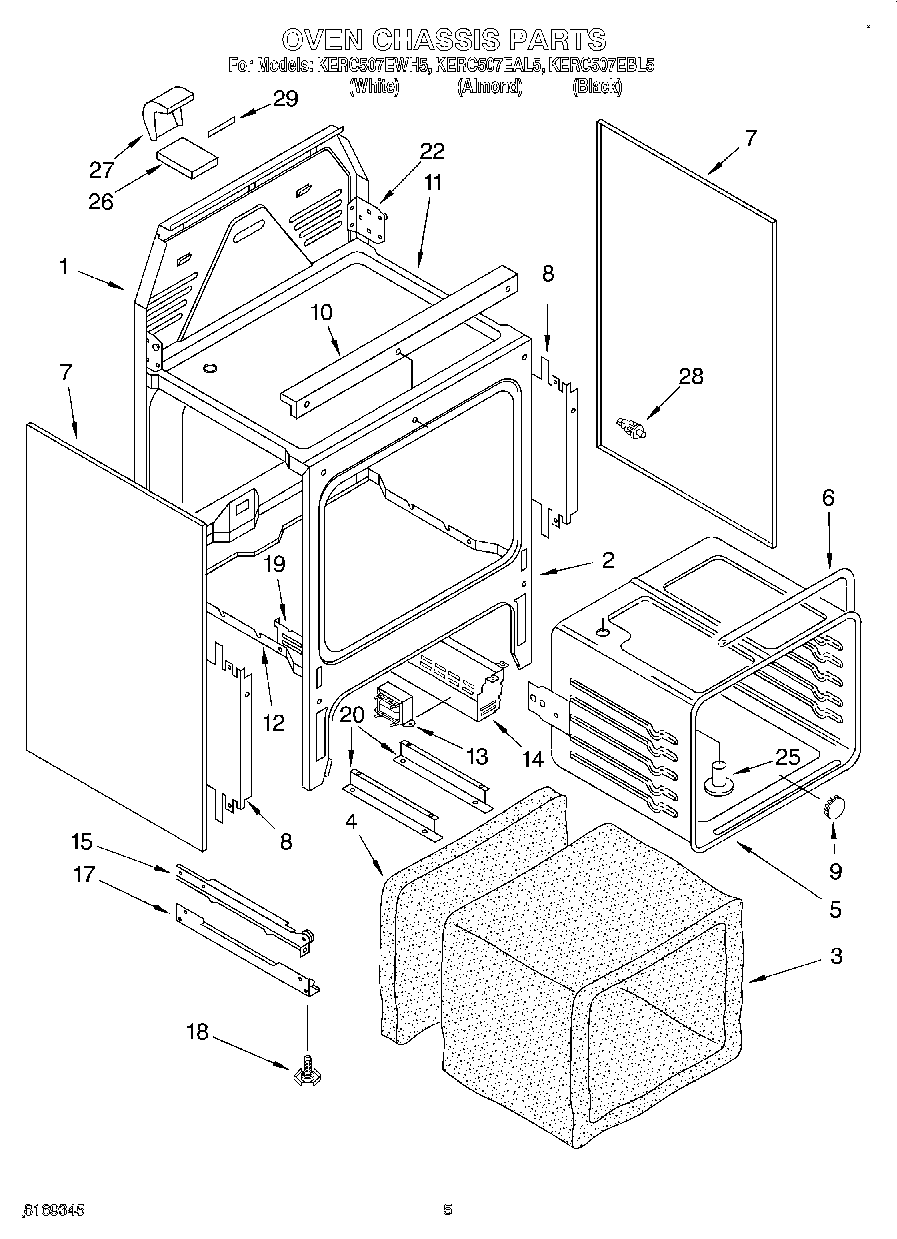

KERC507EWH5 04 – OVEN CHASSIS
Written by
in
KERC507EWH5 04 – OVEN CHASSIS
Products
Position
Product
1
Main Chassis, Back
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket, Oven
7
Oven , Side L or R (Almond)
7
Oven , Side L or R (Black)
7
Oven , Side L or R (White)
8
Shield, Insulation
9
Button, Plug
10
Guard, Wire
11
Burner Box
11
Screw, (2)
12
Oven Bottom
13
WP9760588 Whirlpool Transformer
14
Screw
14
Support, Fan
15
Drawer Rail, Left
15
Rail, Drawer (Right)
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Hinge, Receiver (2)
20
Support Rail, Pan
22
Hinge, Cktp.-Left
22
Hinge, Cktp.-Right
25
Vent Tube
26
Cover, Vent
27
Back, Vent
27
WP4159387 Whirlpool Compactor Screw
28
Switch, Door
29
Vent Gasket
←
