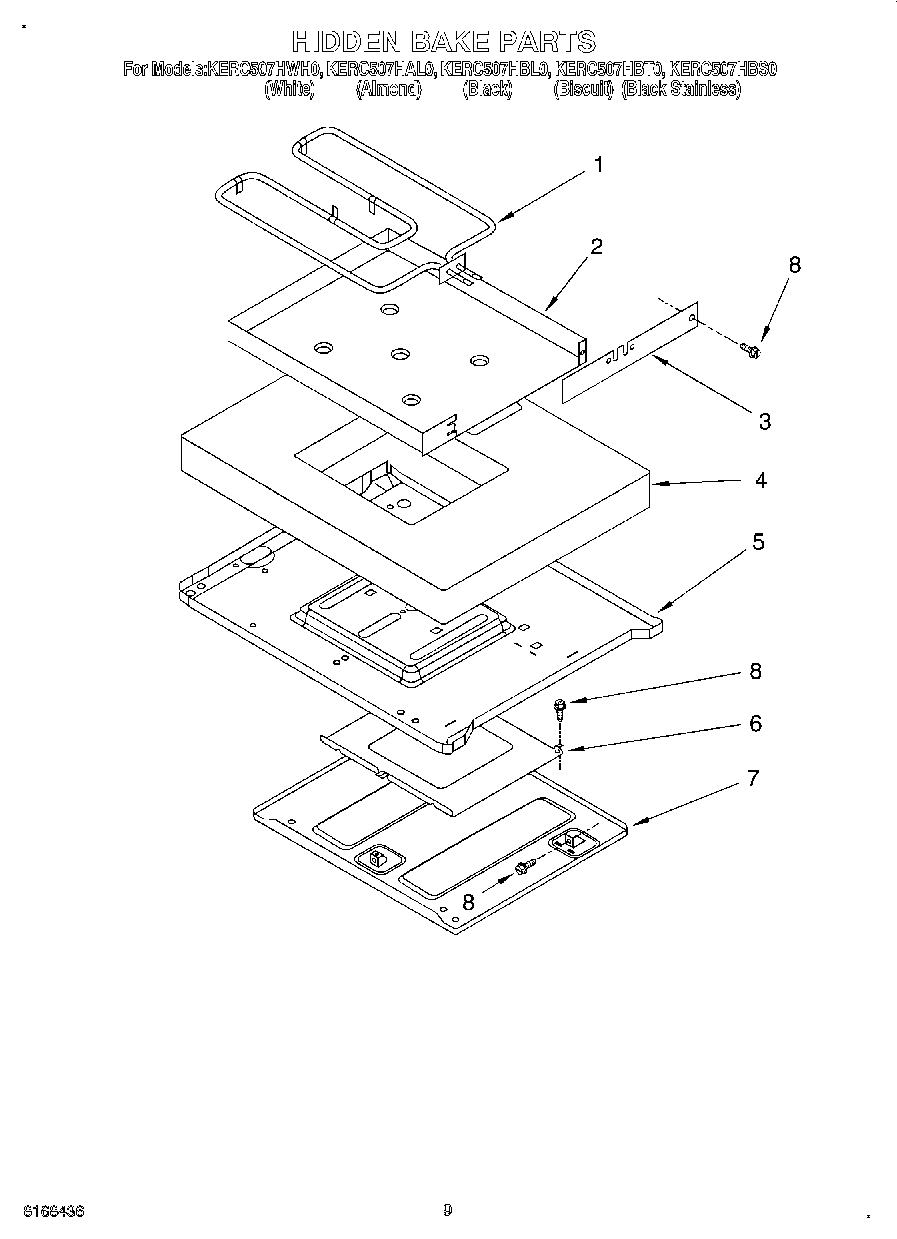

KERC507HAL0 07 – HIDDEN BAKE, OPTIONAL

Products

Position	Product
1	Element, Bake
2	Pan, Hidden Bake
3	Cover, Hidden Bake
4	Insulation
5	Retainer, Insulation
6	Plate, Reflector
7	Shield
8	1
8	Wire (14 Ga. 200 c Brown)
8	18 Ga. 80~c Rating (Red)
8	Wire (12 Ga. 150 c Black)
8	Wire (14 Ga. 150 c Yellow)
8	Wire (14 Ga. 150 c Orange)
8	Wire (14 Ga. 150 c Green)
8	Grease
8	WPL 9751139
8	8212471 Whirlpool Oven Paint
8	WPL 9753687
8	WPL 9753682
8	WPL 9753680
8	WPL 9752772
8	WPL 9752771
8	WPL 9753921
8	WPL 9753686
8	WPL 9753683
8	WPL 9753681
8	WPL 9752368
8	WPL 9752365
8	Wire (14 Ga. 150 c Brown)
8	Wire (14 Ga. 150 c Blue)
8	WPW10208653 Whirlpool Insulation
8	WPL 799832
8	511873 Whirlpool Refrigerator Paint
8	350942 Whirlpool Spray Paint
8	Golden Harvest (Uncut)
8	Golden Harvest
8	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8	Almond (Uncut)
8	WP72107 Whirlpool Touchup
8	799344 Whirlpool Refrigerator Paint
8	72017 Whirlpool Appliance Touch-Up Paint White
8	350956 Whirlpool Spray Assembly
8	FOIL, ALUMINUM OVEN (18“ X 25 )
8	Wire, 25` Roll (Black 14 Ga.)
8	Wire, 25` Roll (Red 14 Ga.)
8	242831 Whirlpool Oven Wire
8	WPL 9751745
8	WPL 9750376
8	WP4159387 Whirlpool Compactor Screw
8	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8	Paint, Spray 13 Oz. (Avocado)
8	paint, spray 13 oz. (coffee)
8	Paint, Touch-Up 1/2 Oz. (Coffee)
8	72109 Whirlpool Dacor Avocado Touch-Up Paint
8	285006 Whirlpool Spray
8	WPW10339879 Whirlpool Wire Tie
8	Wire, 25“ Roll (White 14 GA.)
8	350930 Whirlpool White Spray Paint
