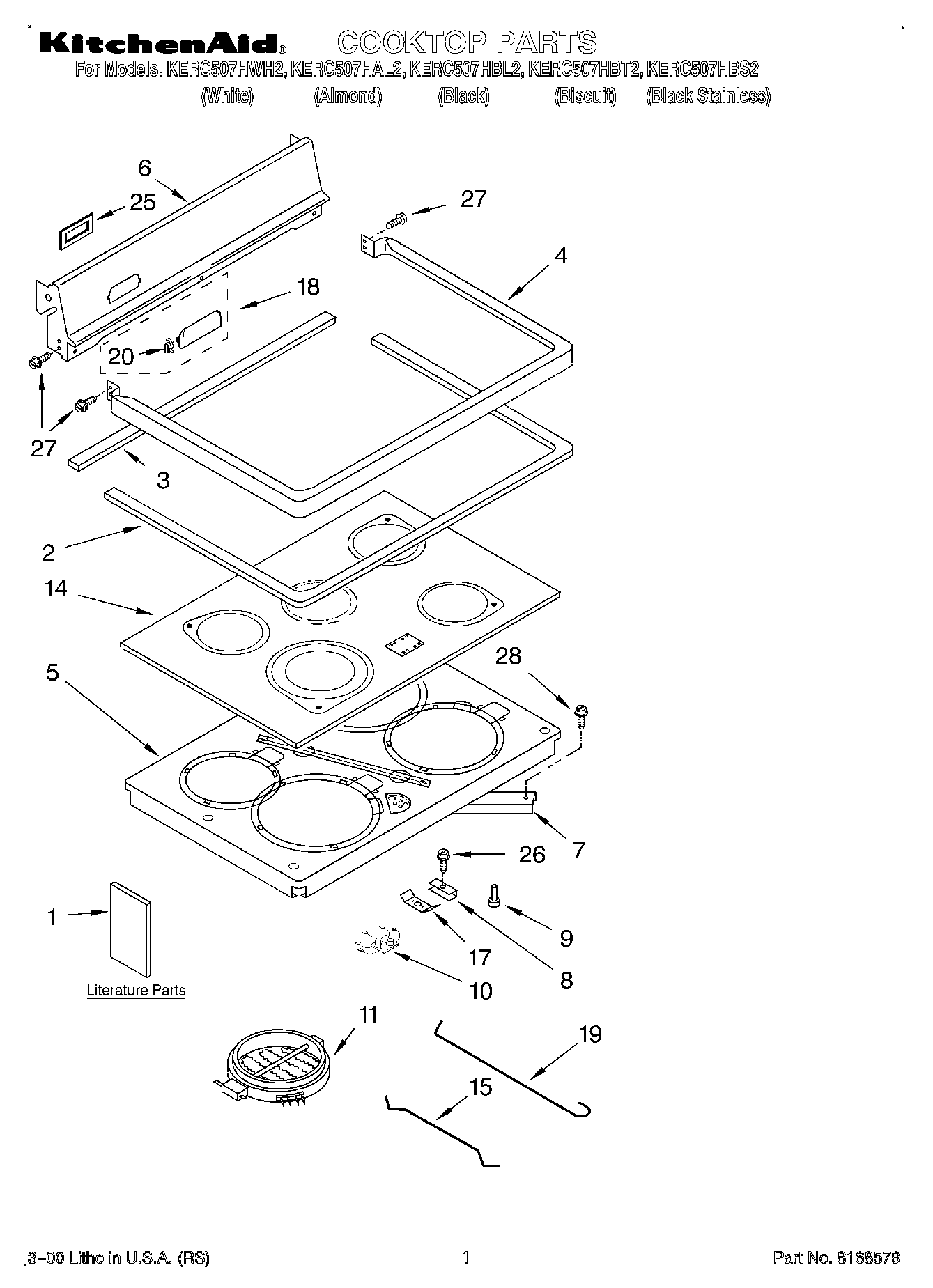

KERC507HAL2 01 – COOKTOP, LITERATURE

KERC507HAL2 01 – COOKTOP, LITERATURE

Written by

in

KERC507HAL2 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1WPL LIT9752776
1WPL LIT9752387
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Smart & Easy Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Almond)
4Frame, Cooktop (White)
4Frame, Cooktop (Black)
4Frame, Cooktop (Biscuit)
5Support, Element
6Back Splash (Biscuit)
6Back Splash (White)
6Back Splash (Almond)
6Back Splash (Black)
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
11WP8523700 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
14Cooktop, Ceran (Almond)
14Cooktop, Ceran (Black)
14Cooktop, Ceran (White)
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Cover, Vent (Almond)
18Cover, Vent (White)
18Cover, Vent (Biscuit)
18Cover, Vent (Black)
19Rod, Large Ceran Element
20Clip, Vent Cover
25Vent Gasket
26Screw, (4) 10PH-B x 3/4
27Back Splash (Screw (4) 10AB x 1/2“)
28Screw (4) 10 x 1/2
28Spring, Warm Zone Element
