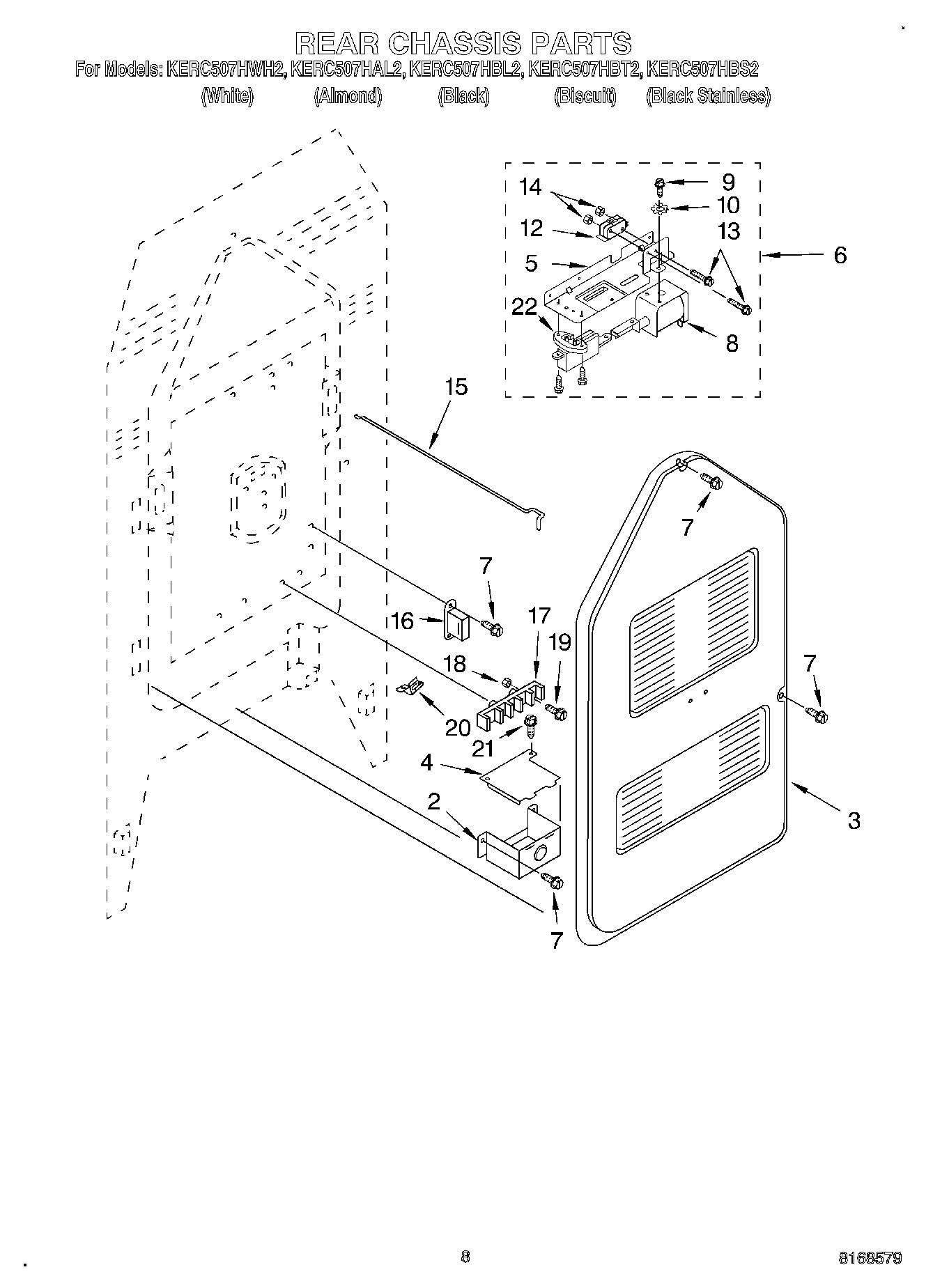

KERC507HAL2 06 – REAR CHASSIS

Products

Position	Product
2	WPL 9752344
3	Panel, Rear
4	Cover, Terminal Box
5	Bracket, Lock
6	Oven Lock Assembly (Includes No.21)
7	WP4159387 Whirlpool Compactor Screw
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast
17	WP8203546 Whirlpool Terminal Block
18	WP112432 Whirlpool Nut Assembly
19	Screw, (2) 10-16 x 1
20	Ground Strap
21	Screw, 10-16 x 1
22	Single Position Device (Not Serviced)
