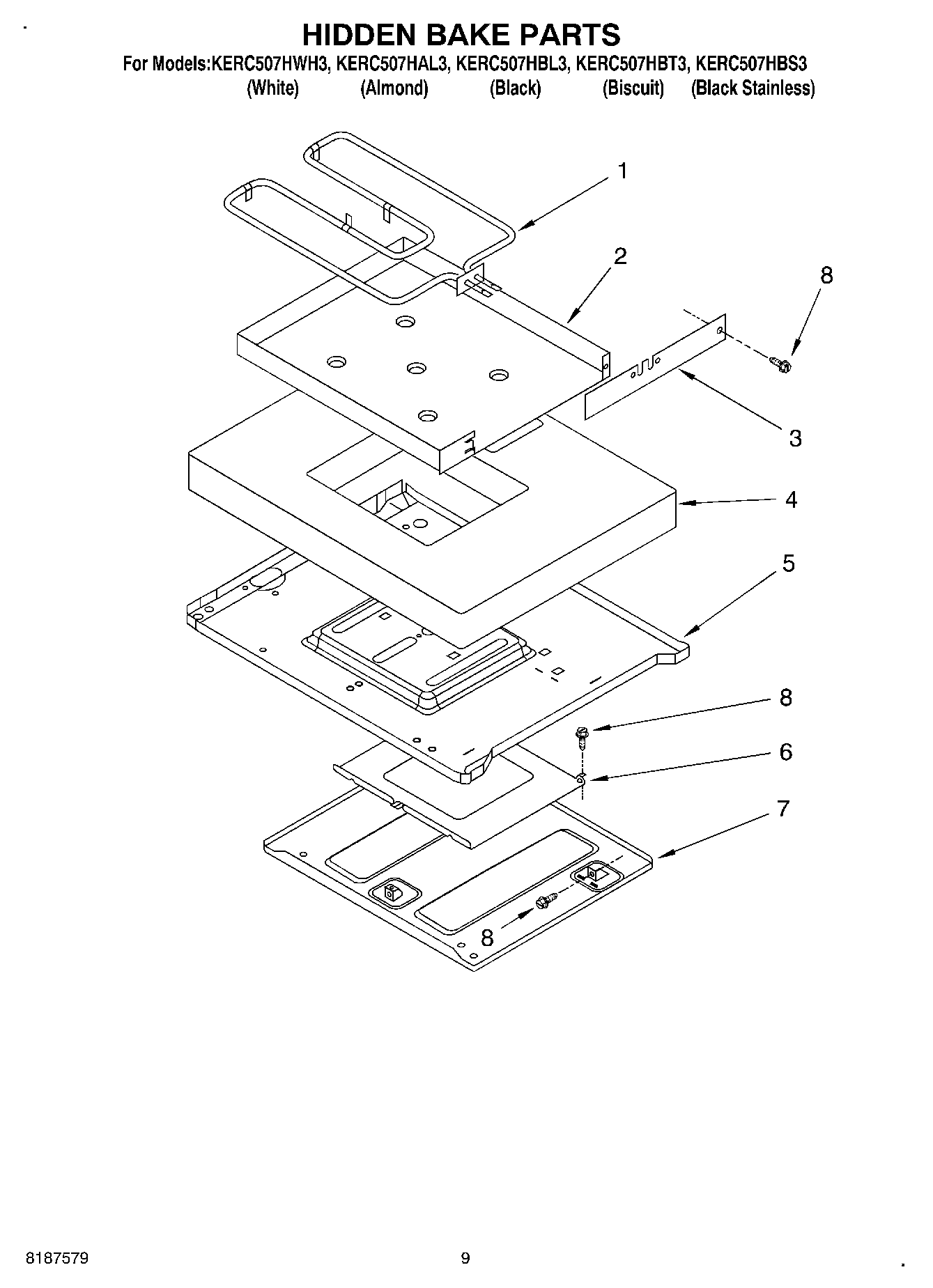

KERC507HAL3 07 – HIDDEN BAKE
Written by
in
KERC507HAL3 07 – HIDDEN BAKE
Products
Position
Product
1
Element, Bake
2
Pan, Hidden Bake
3
Cover, Hidden Bake
4
Insulation
5
Retainer, Insulation
6
Plate, Reflector
7
Shield
8
WPL 9752365
8
WPL 9782123
8
1
8
Wire (14 Ga. 200 c Brown)
8
18 Ga. 80~c Rating (Red)
8
Wire (12 Ga. 150 c Black)
8
Wire (14 Ga. 150 c Yellow)
8
Wire (14 Ga. 150 c Orange)
8
WPL 9753683
8
WPL 9753921
8
WPL 9752771
8
Grease
8
WPL 9753680
8
8212471 Whirlpool Oven Paint
8
WPL 9782080
8
WPL 9781930
8
WPL 9753687
8
WPL 9753682
8
WPL 9752772
8
Wire (14 Ga. 150 c Green)
8
Wire (14 Ga. 150 c Brown)
8
WPL 799832
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
8
511873 Whirlpool Refrigerator Paint
8
4392901 Whirlpool Biscuit Spray Paint
8
4392899 Whirlpool Biscuit Touch-Up Paint
8
350942 Whirlpool Spray Paint
8
Almond (Uncut)
8
WP72107 Whirlpool Touchup
8
799344 Whirlpool Refrigerator Paint
8
72017 Whirlpool Appliance Touch-Up Paint White
8
350956 Whirlpool Spray Assembly
8
WPW10208653 Whirlpool Insulation
8
FOIL, ALUMINUM OVEN (18“ X 25 )
8
Wire, 25` Roll (Black 14 Ga.)
8
Wire (14 Ga. 150 c Blue)
8
242831 Whirlpool Oven Wire
8
Clip, Ground Wire
8
WPL 9751745
8
WPL 9750376
8
WP4159387 Whirlpool Compactor Screw
8
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8
285006 Whirlpool Spray
8
WPW10339879 Whirlpool Wire Tie
8
Wire, 25“ Roll (White 14 GA.)
8
Wire, 25` Roll (Red 14 Ga.)
8
350930 Whirlpool White Spray Paint
←
