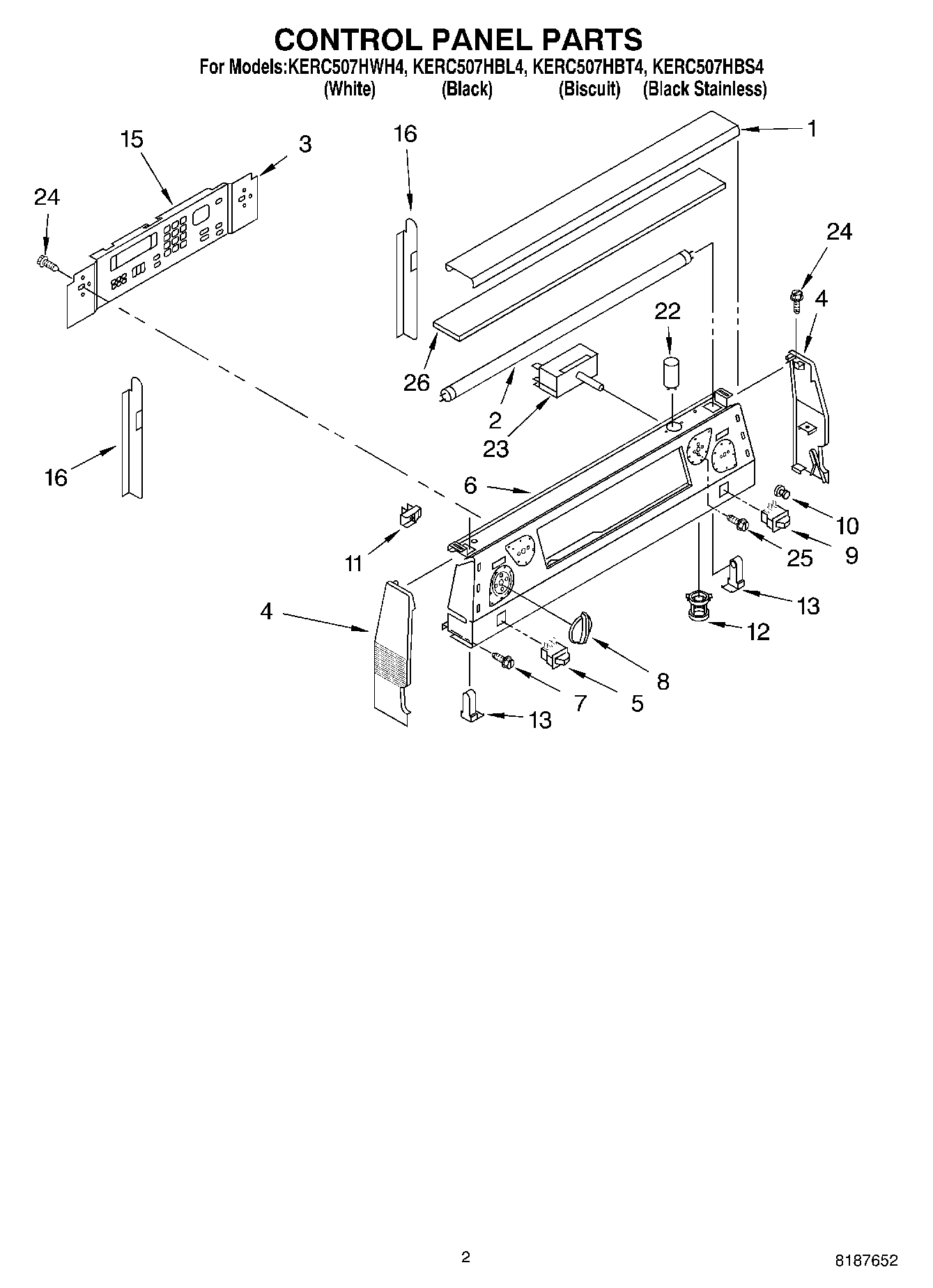

KERC507HBL4 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover (Biscuit)
1	Lamp Cover (White)
1	Lamp Cover (Black)
2	WP95292 Whirlpool Fluorescent Light Bulb
4	End Cap (Left Hand) (White)
4	End Cap (Left Hand) (Black)
4	End Cap L.H. (Biscuit)
4	End Cap (Right Hand) (Black)
4	End Cap (Right Hand) (White)
4	End Cap R.H. (Biscuit)
5	Switch, Warm Zone (Biscuit)
5	Switch, Rocker (Warm Zone) (Black)
5	Switch, Warm Zone (White)
6	Panel, Control (Black)
6	Panel, Control (Biscuit)
6	Panel, Control (Black Stainless)
6	Panel, Control (White)
7	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9750372FW Whirlpool Knob Assembly
8	WP9750372FF Whirlpool Knob
8	WP9750372FC Whirlpool Knob
9	Switch, Simmer (White)
9	WPW10163899 Whirlpool Switch
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator
12	Starter, Holder
13	Receptacle, Light
15	Oven Control Assembly (White)
15	Oven Control Assembly (Black)
15	Oven Control Assembly (Biscuit)
16	Brace, Control Pnl
22	Starter, Light
23	WP9755173 Whirlpool Infinite Switch
23	WP9750639 Whirlpool Infinite Switch
23	WP9750638 Whirlpool Infinite Switch
24	WP4159387 Whirlpool Compactor Screw
25	WP3400882 Whirlpool Screw
26	Insulation, Cntrl
