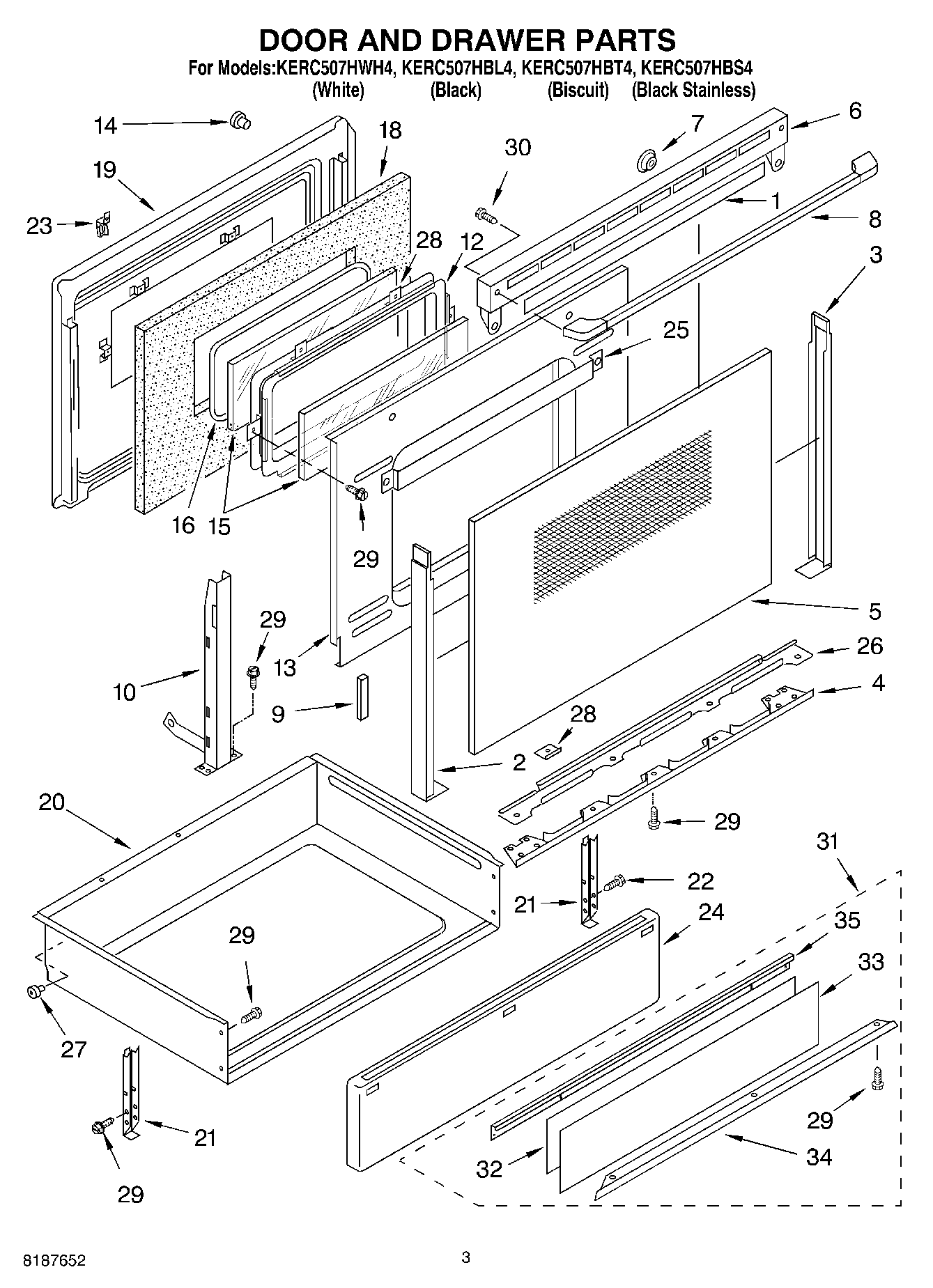

KERC507HBL4 03 – DOOR AND DRAWER

KERC507HBL4 03 – DOOR AND DRAWER

Written by

in

KERC507HBL4 03 – DOOR AND DRAWER

Products

PositionProduct
1Vent, Door (Gasket, Vent)
2Trim, Door-Left (Black)
2Trim, Door-Left (Biscuit)
2Trim, Door-Left (White)
3Trim, Door-Right (White)
3Trim, Door-Right (Biscuit)
3Trim, Door-Right (Black)
4Trim, Door Bottom (Black)
4Trim, Door Bottom (White)
4Trim, Door Bottom (Biscuit)
5Glass, Door Front (Biscuit)
5Glass, Door (Black)
5Glass, Door Front (White)
5Glass, Door (Black Stainless)
6Vent, Door (White)
6Vent, Door (Black)
6Vent, Door (Biscuit)
8Handle, Door (Black)
8Handle, Door (White)
8Handle, Door (Biscuit)
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
12Frame, Window
13Shield, Door
14238614 Whirlpool Bumper Hinge
15WP9781593 Whirlpool Door Glass
16WP9755177 Whirlpool Wind Gasket
18Insulation, Door
19Liner, Door
20Drawer & Roller
20Drawer & Roller
21Bracket, Drawer
22Screw (4) 10 x 1/2
23Retainer, Glass
24Front, Drawer (Black)
24Front, Drawer (Biscuit)
24Front, Drawer (White)
24Front, Drawer (Black Stainless)
24WP90296 Whirlpool Clip
25Channel, Heat
26Deflector, Steam
27814229 Whirlpool Primary Roller
28Spacer, Door (8)
29WP4159387 Whirlpool Compactor Screw
30WPW10001180 Whirlpool Refrigerator Screw
31Black Stainless Only
32WPL 9753329
33WPL 9753293
34WPL 9750613PB
35WPL 9750614PB
