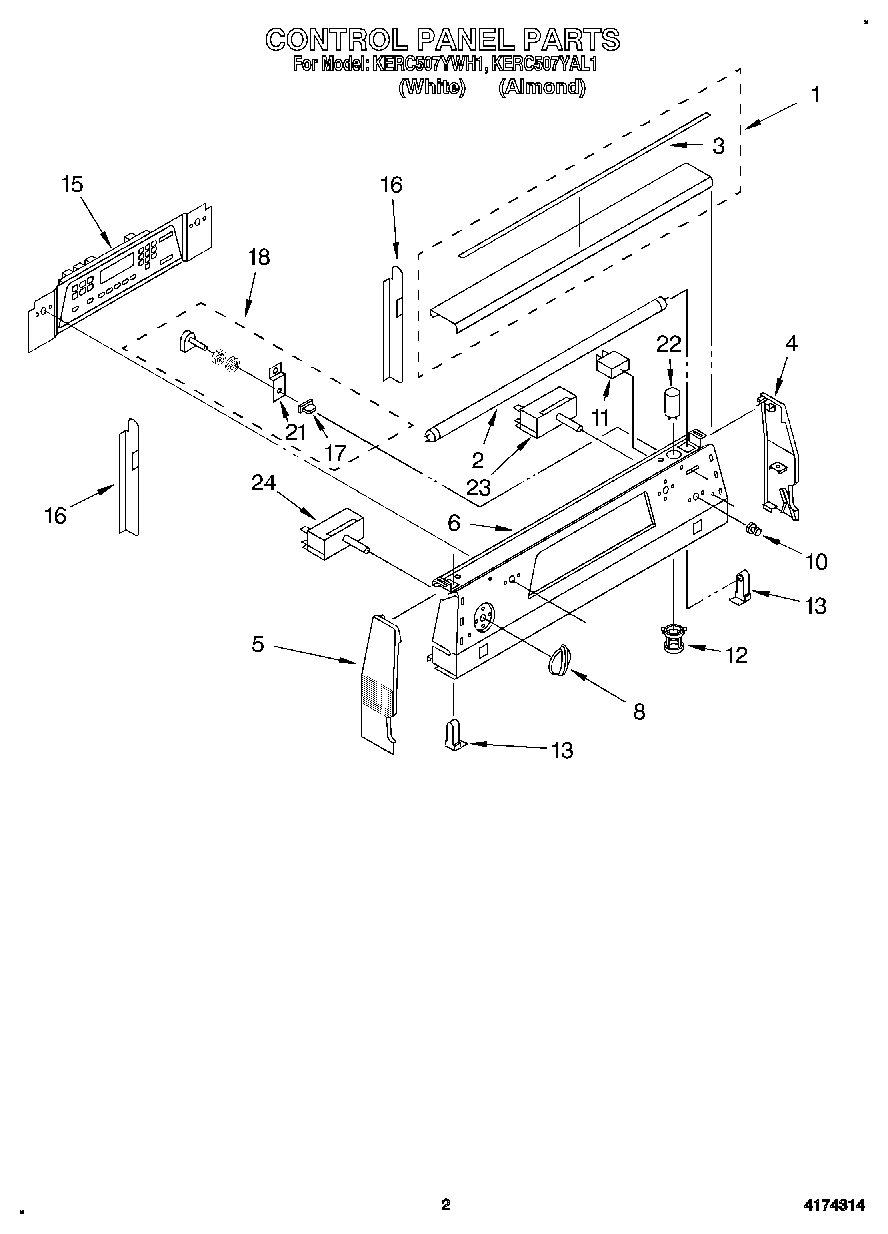

KERC507YAL1 02 – CONTROL PANEL

KERC507YAL1 02 – CONTROL PANEL

Written by

in

KERC507YAL1 02 – CONTROL PANEL

Products

PositionProduct
1Lamp Cover (Almond)
1Lamp Cover (White)
2WP95292 Whirlpool Fluorescent Light Bulb
3Lamp Cover Insert (Almond)
3Lamp Cover Insert (White)
4End Cap R.H. (White)
4End Cap R.H. (Almond)
5End Cap L.H. (Almond)
5End Cap L.H. (White)
5WP4159387 Whirlpool Compactor Screw
6Panel, Control (Almond)
6Panel, Control (Screw, (2) 8 x 3/8)
6Panel, Control (White)
8Knobs, Control (Almond)
8WP9750372FW Whirlpool Knob Assembly
10WP9750343 Whirlpool Light Lens
11Light Module
12Starter, Holder
13Receptacle, Lamp
15Oven Control Assembly (White)
15Oven Control Assembly (Almond)
16Brace, Control Pnl
17Button, Light (Almond)
17Button, Light (White)
18Switch, Light
21Bracket, Switch
22Starter, Light
23WP9750639 Whirlpool Infinite Switch
24WP9750641 Whirlpool Infinite Switch
24Infinite Switch (Screw (8) 8-32 x 3/16)
