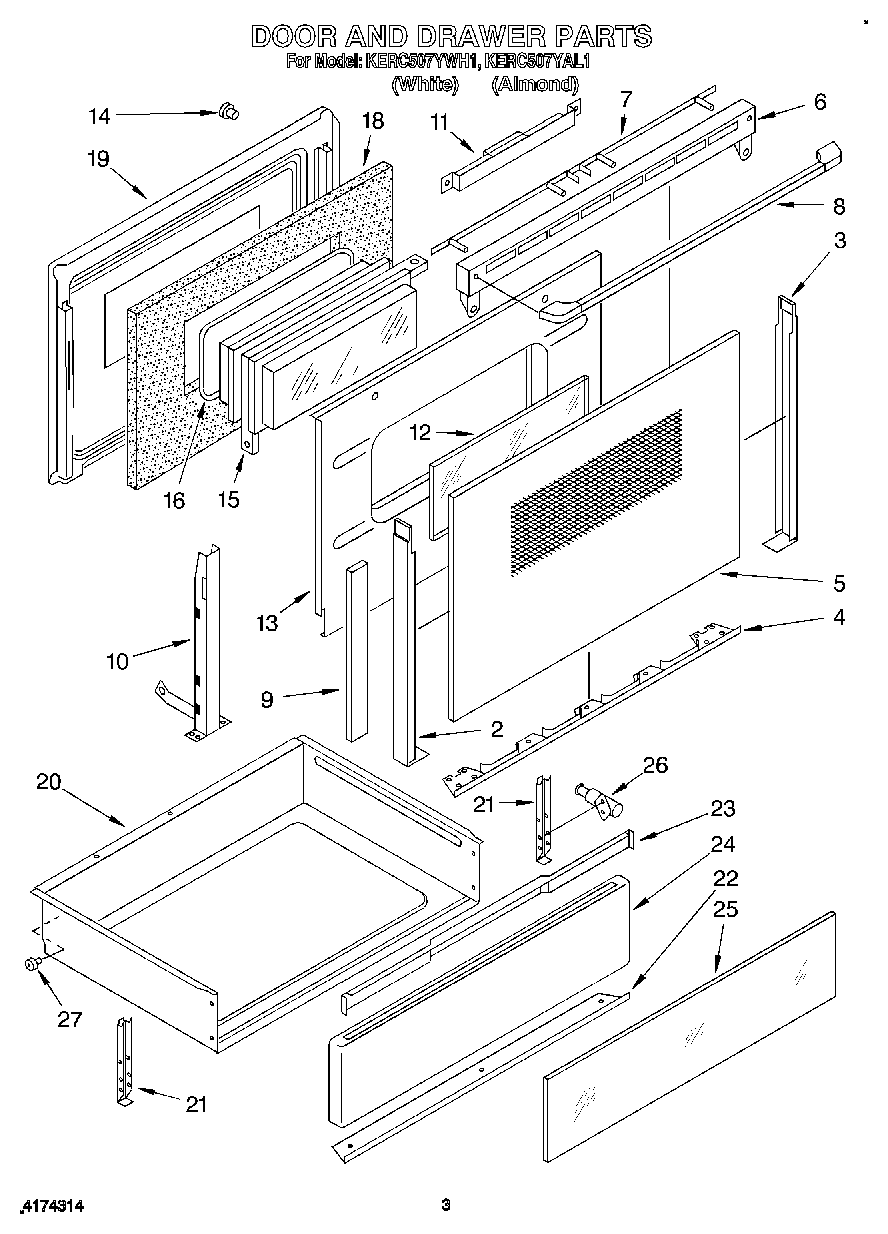

KERC507YAL1 03 – DOOR AND DRAWERadmin2025-04-26T09:52:48+00:00KERC507YAL1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 2 | Trim, Door-Left (Almond) |
| 2 | Trim, Door-Left (White) |
| 3 | Trim, Door-Right (Almond) |
| 3 | Trim, Door-Right (White) |
| 4 | Trim, Door Bottom (Almond) |
| 4 | Trim, Door Bottom (White) |
| 5 | Glass, Door (Almond) |
| 5 | Glass, Door (White) |
| 6 | Vent, Door (White) |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Vent, Door (Almond) |
| 7 | Vent Back |
| 8 | Handle, Door (Almond) |
| 8 | Handle, Door (White) |
| 8 | WPW10001180 Whirlpool Refrigerator Screw |
| 9 | Gasket, Door Glass |
| 10 | WP9782033 Whirlpool Door Hinge |
| 11 | Channel, Heat |
| 12 | Baffle, Glass |
| 13 | Shield Door |
| 14 | 238614 Whirlpool Bumper Hinge |
| 15 | Window Pack (2) |
| 16 | Seal, Window |
| 18 | WPW10208653 Whirlpool Insulation |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 21 | Screw (4) 10 x 1/2 |
| 21 | Bracket, Drawer |
| 22 | Trim, Drawer Bottm. (Almond) |
| 22 | Trim, Drawer Bottm. (White) |
| 23 | WP4159387 Whirlpool Compactor Screw |
| 23 | Trim, Drawer Top (Almond) |
| 23 | Trim, Drawer Top (White) |
| 24 | WPL 4211916 |
| 24 | WPL 4211917 |
| 25 | WPL 9780326 |
| 25 | WPL 9750612 |
| 26 | WPL 9780806 |
| 26 | Latch, Drawer |
| 27 | 814229 Whirlpool Primary Roller |
