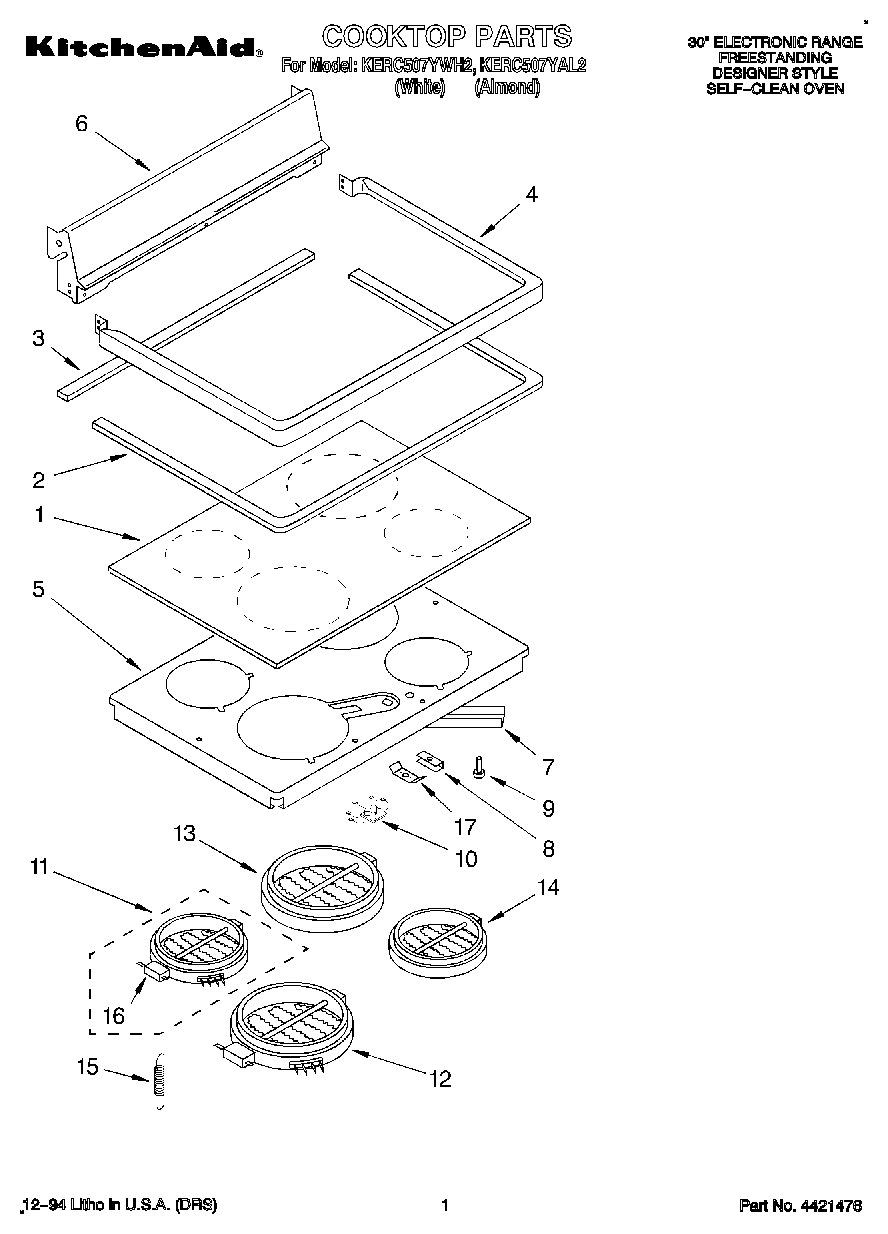

KERC507YAL2 01 – COOKTOP, LITERATURE

KERC507YAL2 01 – COOKTOP, LITERATURE

Written by

in

KERC507YAL2 01 – COOKTOP, LITERATURE

Products

PositionProduct
Tech Sheet-K/A
WPL LIT9780689
Cookbook T/C Oven
Guide, Auto Set
Use And Care Guide
Video, K/A T/C Ovens
Label, Instruction (Lamp Cover)
Instructions, Installation
Wiring Diagram
1Cooktop, Ceran (Almond/Black Mdl.)
1Cooktop, Ceran (White Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
5Support, Element
6Back Splash (Screw (4) 10AB x 1/2“)
6Back Splash (White)
6Back Splash (Almond)
7WP3387230 Whirlpool Screw
7Brace, Support
8Screw, (4) 10PH-B x 3/4
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light Element, Surface
116“ L.R.
129“ L.F.
138“ – RR
14W10823693 Whirlpool Surface Element
15Spring (12)
16Limiter Temp. (7“ – RF)
16Limiter Temp. (8“ – RR)
16Limiter, Temp. (9“ L.F.)
16Limiter, Temp. (6“ L.R.)
17Screw, Anchor
