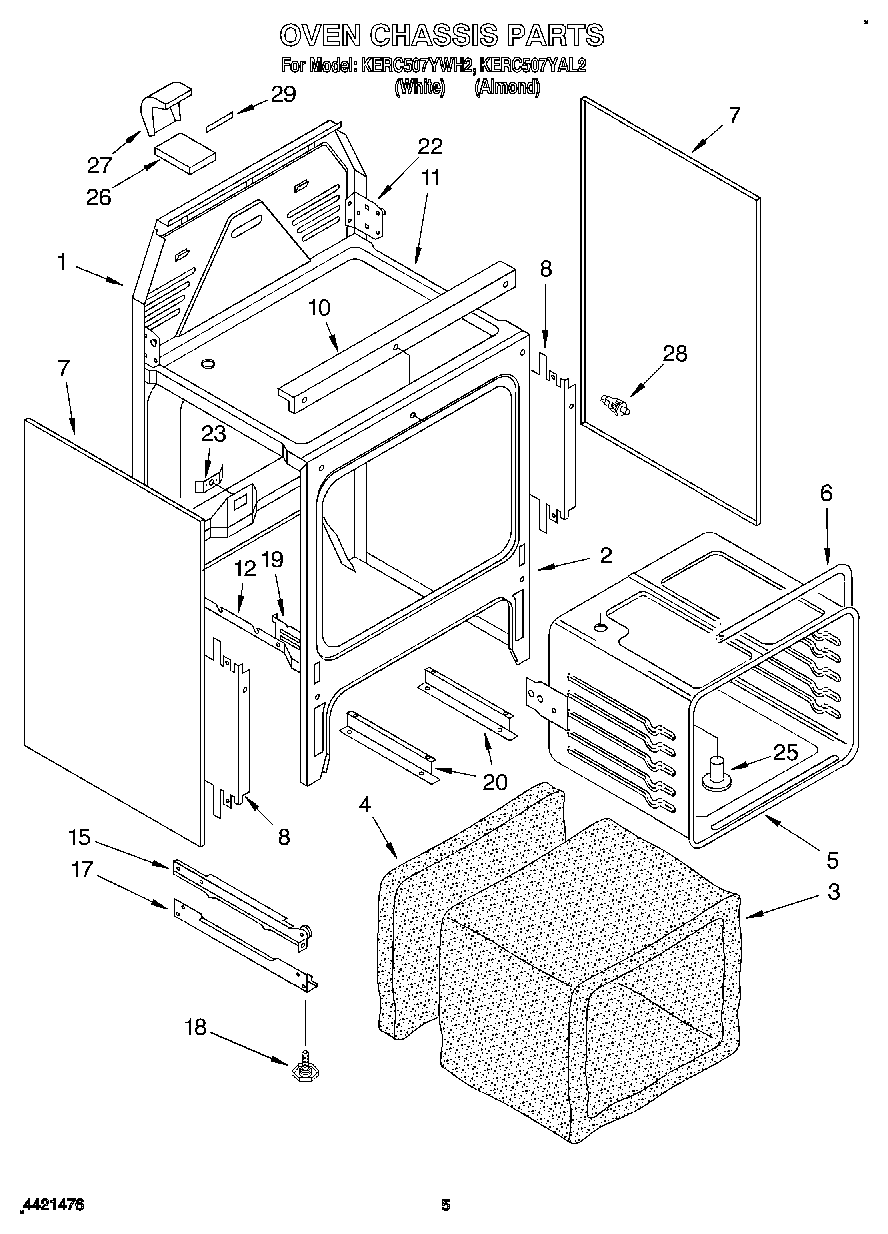

KERC507YAL2 04 – OVEN CHASSIS
Written by
in
KERC507YAL2 04 – OVEN CHASSIS
Products
Position
Product
1
Main Chassis, Back
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket Oven
7
Oven , Side L or R (White)
7
Oven , Side L or R (Almond)
8
Shield, Insulation
10
SCREW
10
Guard, Wire
11
Screw, (2)
11
Burner Box
12
Oven Bottom
15
Drawer Rail, Left
15
Rail, Drawer (Right)
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Hinge, Receiver (2)
19
Screw (2) 8 x 3/8
20
Support Rail, Pan
22
Hinge, Cktp.-Right
22
Hinge, Cktp.-Left
23
Screw (4) 10 x 1/2
23
Bracket, Power Cord
25
Vent Tube
26
Cover, Vent
27
WP4159387 Whirlpool Compactor Screw
27
Back, Vent
28
Switch, Door
29
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29
Vent Gasket
29
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29
WA906B Whirlpool Cooktop Glass Scraper
←
