KERC507YAL2 05 – OVEN

KERC507YAL2 05 – OVEN

Written by

in

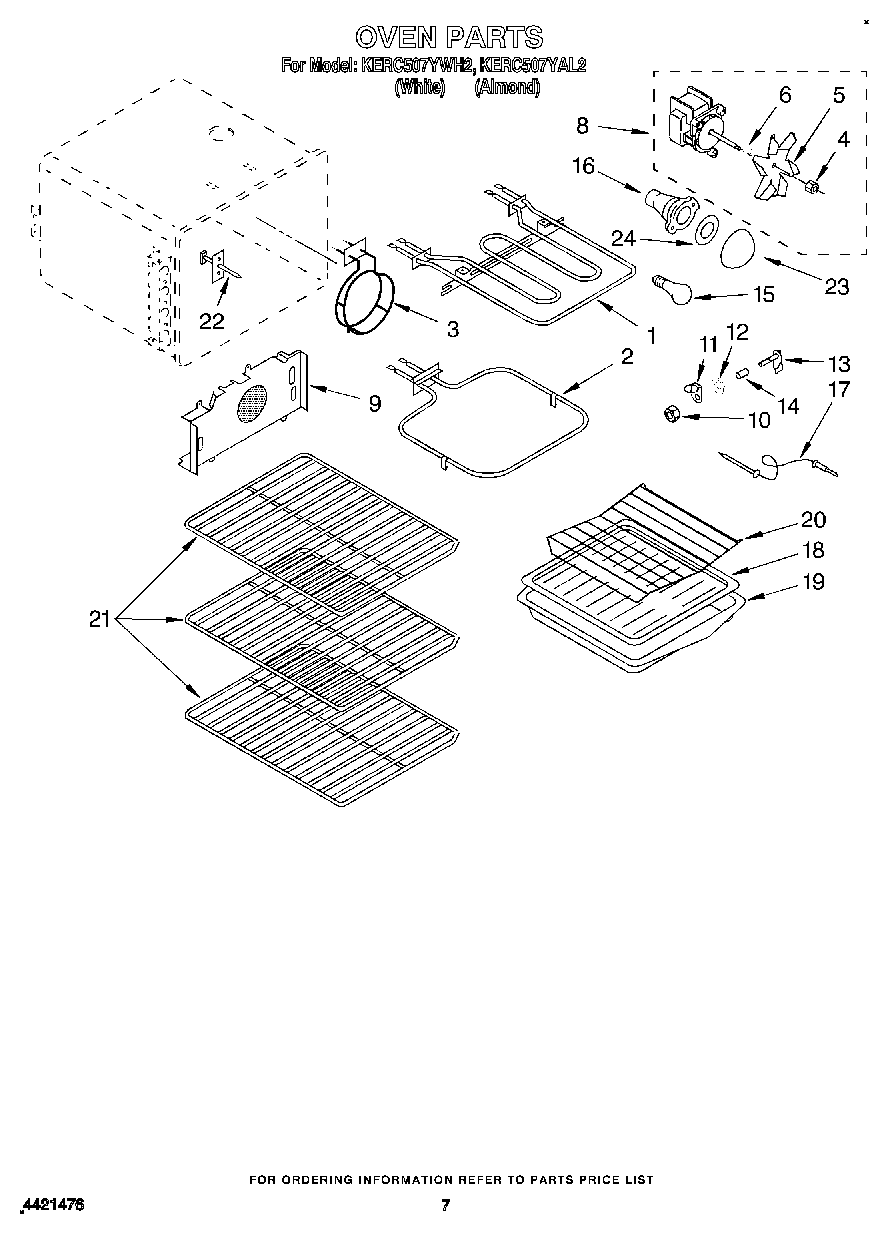

KERC507YAL2 05 – OVEN

Products

PositionProduct
1Element, Broil
2ELMNT-BAKE
3WPW10280189 Whirlpool Element
4Nut (Left Hand)
5Fan
6E-Ring
8Assembly, Fan
8Screw, 10 x 1/2
9Screw (2) 8 x 3/8
9Baffle, Convection
10Lock-Nut, Cvr.Jack
11Jack Cover
12Gasket, Meat Probe
13Receptacle, Probe
14Spacer – Tubing
15RANGE ONLY 40W 120V APPL BULB
16W11594027 Whirlpool Range Oven Light Socket
17Probe
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Rack, Roasting
21Rack, Standard (3)
22Screw
22Sensor, Heat
23WP9781049 Whirlpool Light Lens
24WP3184533 Whirlpool Range Light Lens Gasket
