KERC507YAL3 04 – OVEN CHASSIS

KERC507YAL3 04 – OVEN CHASSIS

Written by

in

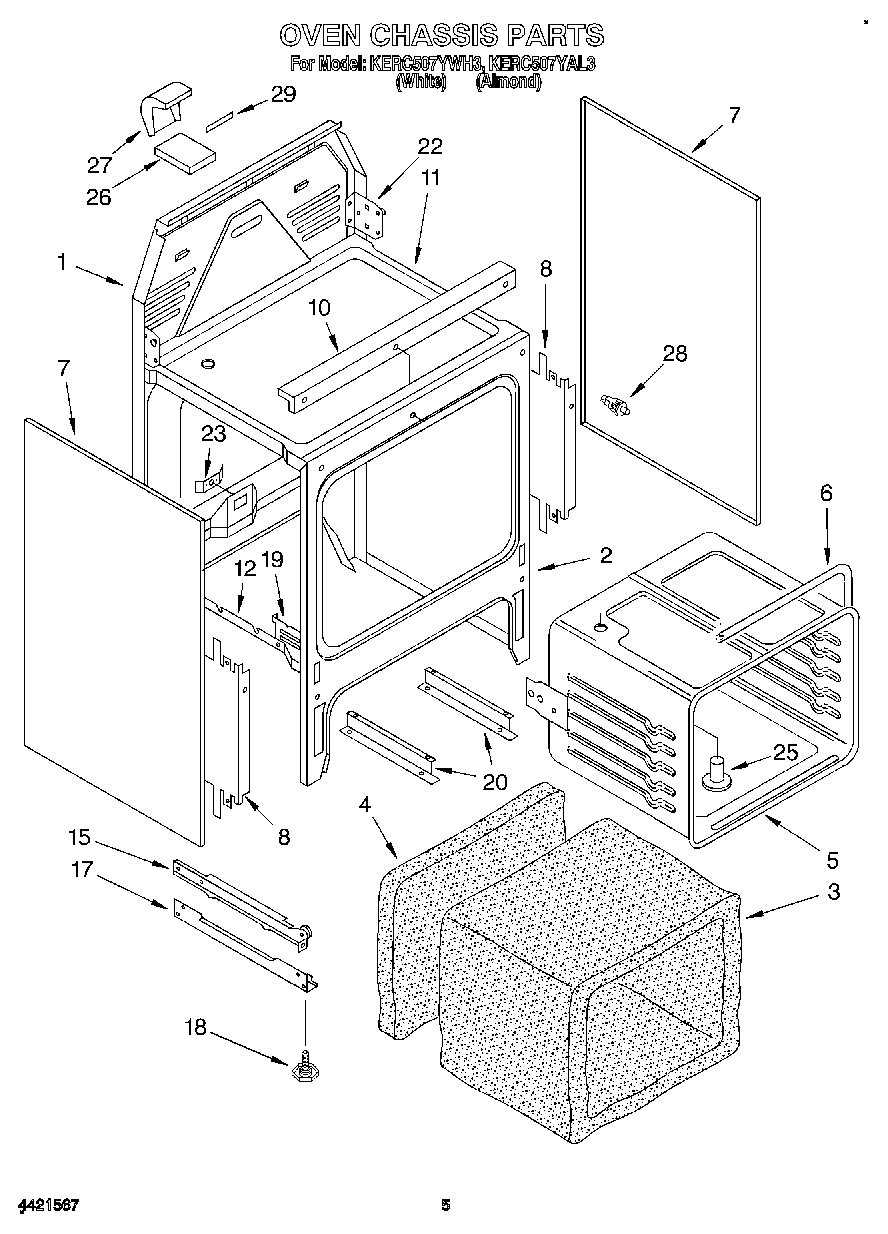

KERC507YAL3 04 – OVEN CHASSIS

Products

PositionProduct
1Main Chassis, Back
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket Oven
7Oven , Side L or R (White)
7Oven , Side L or R (Almond)
8Shield, Insulation
10Guard, Wire
11Burner Box
11Screw, (2)
12Oven Bottom
15Rail, Drawer (Right)
15Drawer Rail, Left
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
19Screw (2) 8 x 3/8
20Support Rail, Pan
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
23Bracket, Power Cord
23Screw (4) 10 x 1/2
25Vent Tube
26Cover, Vent
27WP4159387 Whirlpool Compactor Screw
27Back, Vent
28Switch, Door
29W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29Vent Gasket
298273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29WA906B Whirlpool Cooktop Glass Scraper
