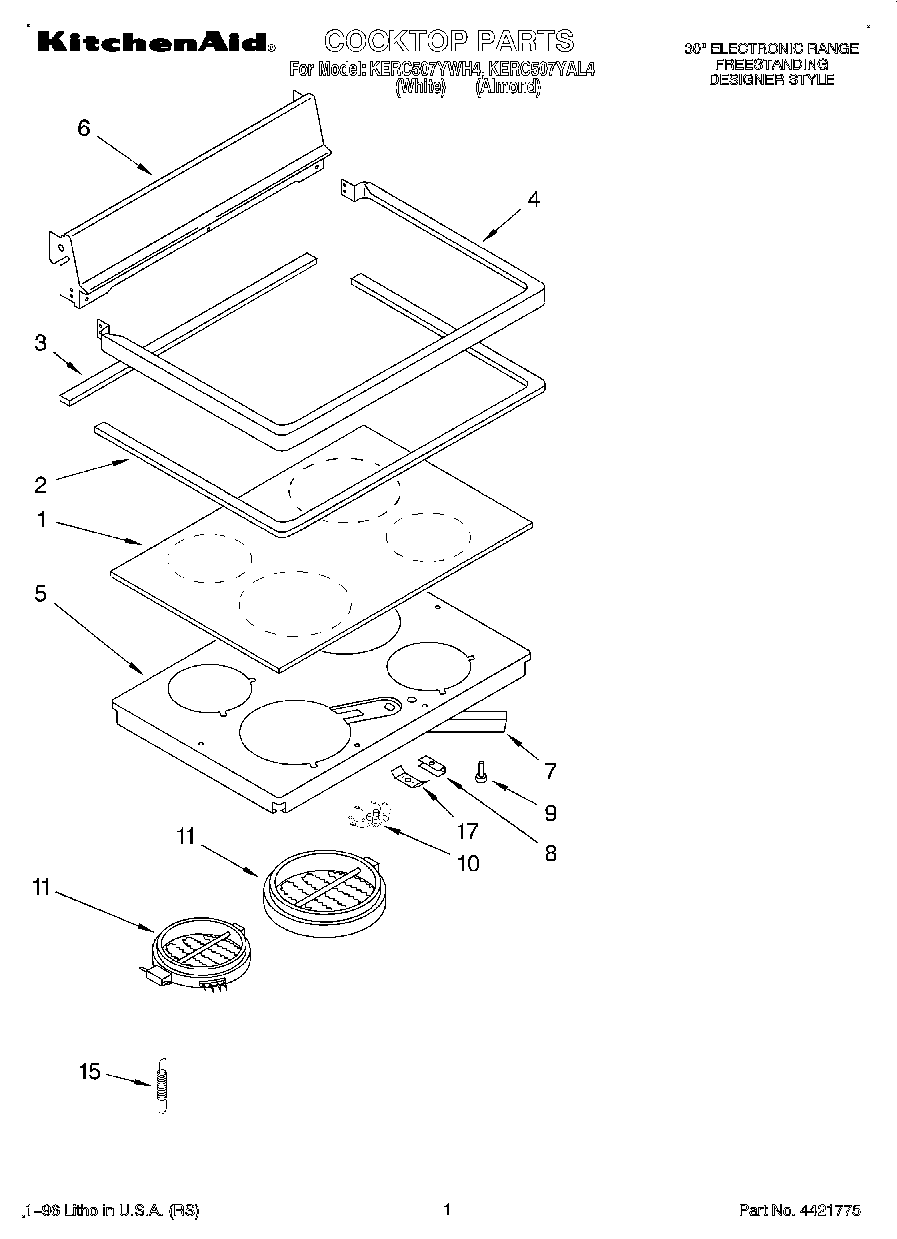

KERC507YAL4 01 – COOKTOP

KERC507YAL4 01 – COOKTOP

Written by

in

KERC507YAL4 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (White Mdl.)
1Cooktop, Ceran (Almond/Black Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Almond)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (White)
6Back Splash (Almond)
6Back Splash (Screw (4) 10AB x 1/2“)
7WP3387230 Whirlpool Screw
7Brace, Support
8Screw, (4) 10PH-B x 3/4
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light Element, Surface
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (6“ L.R. 1400W)
11Element, Surface (8“ R.R. 2100W)
11Element, Surface (9“ L.F. 2400W)
15Spring (12)
17Screw, Anchor
