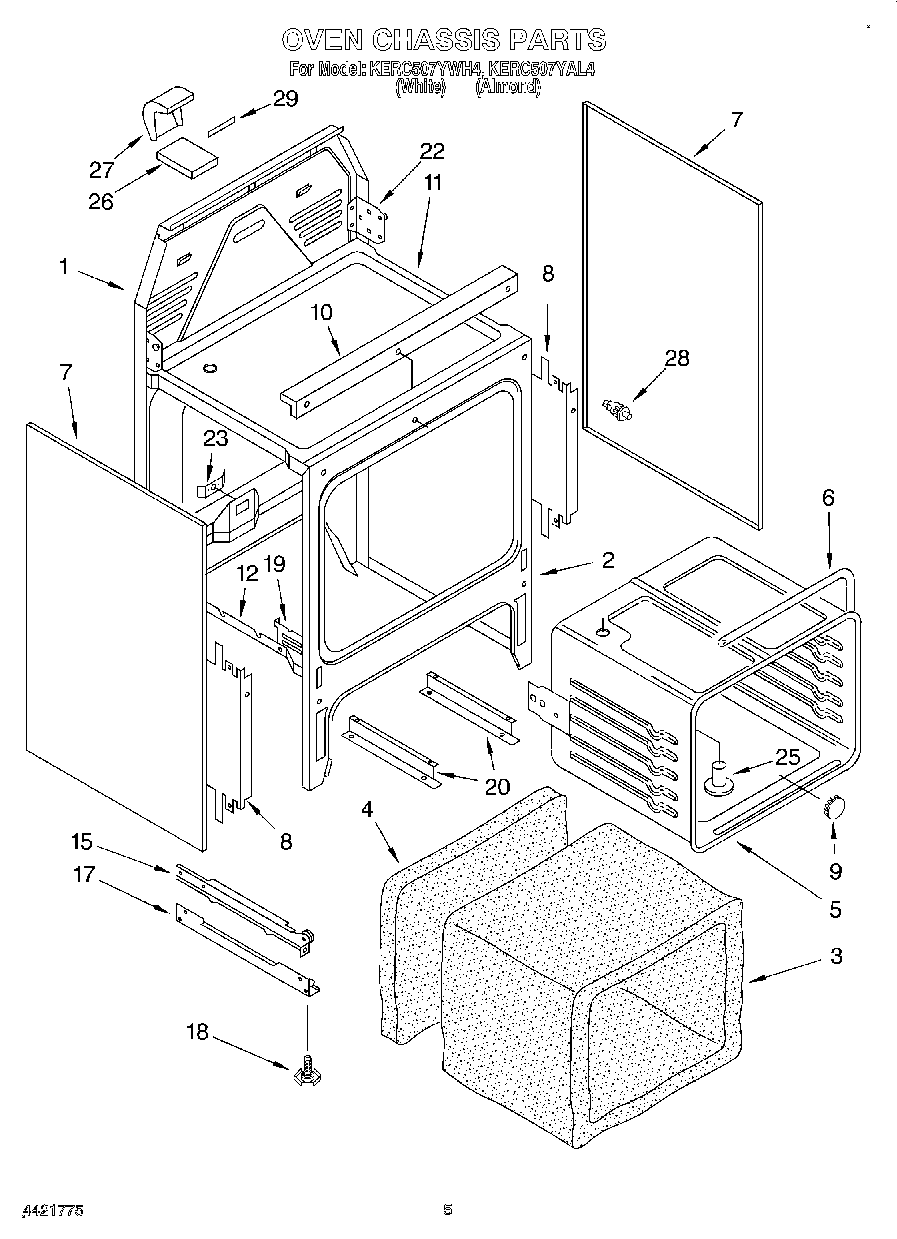

KERC507YAL4 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
9	Button, Plug
10	Guard, Wire
11	Burner Box
11	Screw, (2)
12	Oven Bottom
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (2) 8 x 3/8
19	Hinge, Receiver (2)
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Screw (4) 10 x 1/2
23	Bracket, Power Cord
25	Vent Tube
26	Cover, Vent
27	Back, Vent
27	WP4159387 Whirlpool Compactor Screw
28	Switch, Door
29	Vent Gasket
