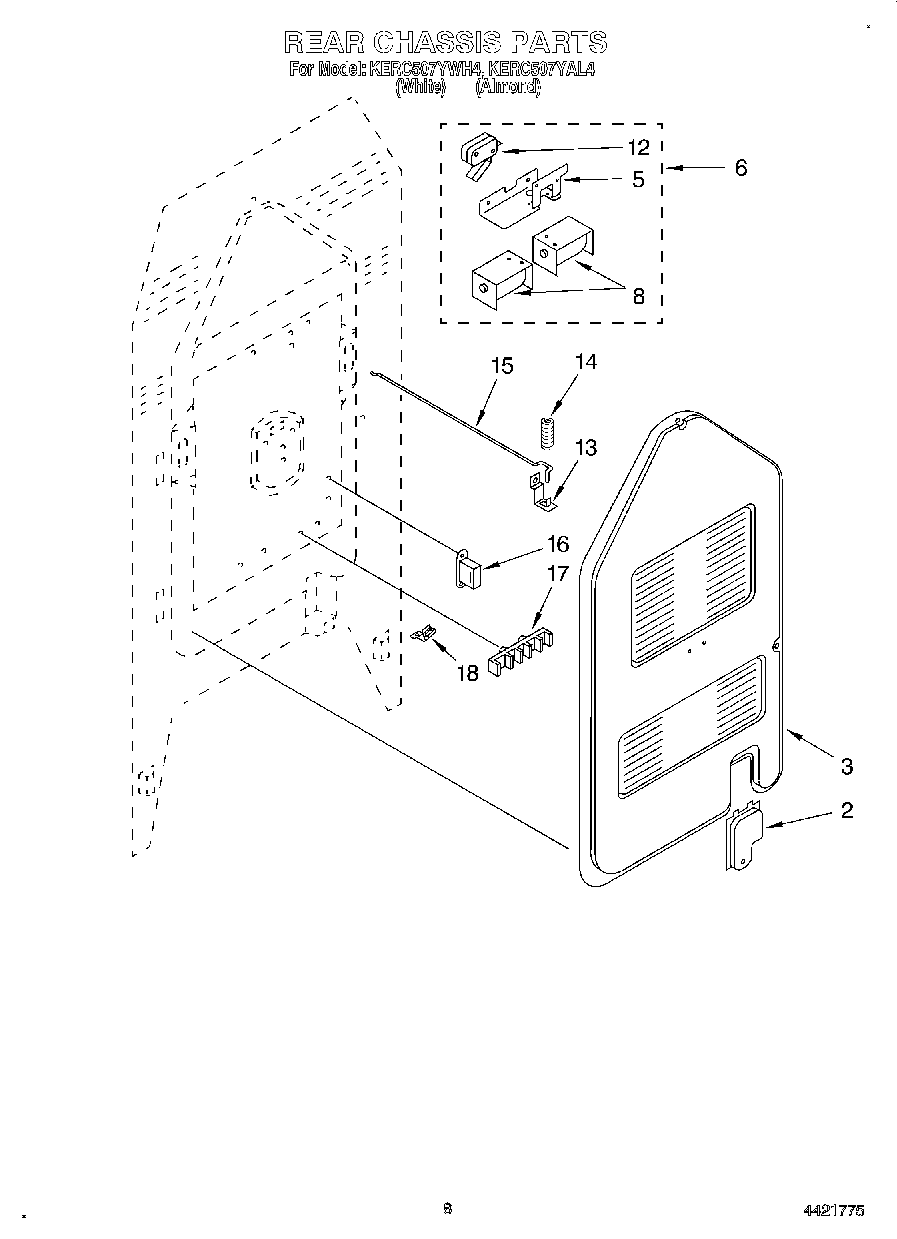

KERC507YAL4 06 – REAR CHASSIS, LIT/OPTIONAL
Written by
in
KERC507YAL4 06 – REAR CHASSIS, LIT/OPTIONAL
Products
Position
Product
Label, Instruction (Lamp Cover)
WPL 9781214
WPW10339879 Whirlpool Wire Tie
WPL LIT9780689
Tech Sheet-K/A
Harness, (Cooktop)
Cookbook T/C Oven
Harness, Wire (Control)
Guide, Auto Set
Use And Care Guide
WPL 9750376
Wiring Diagram
Instructions, Installation
Video, K/A T/C Ovens
Harness, Wire (Probe)
Harness, Wire (Oven)
2
Cover, Rear Access
3
Washer
3
Screw, (2) 10 x 3/8
3
Rear Panel
5
Bracket, Lock
6
Oven Lock Assembly
8
Solenoid
8
Screw, (2) 10-32 x 5/16
12
Nut (2)
12
Switch, Interlock
12
Screw, (2)
13
Bracket, Spring
14
Spring, Door Lock
15
Rod, Lock
16
Ballast, Lamp
16
Washer
16
WP4159387 Whirlpool Compactor Screw
17
WP112432 Whirlpool Nut Assembly
17
WP8203546 Whirlpool Terminal Block
18
18 Ga. 80~c Rating (Red)
18
Golden Harvest (Uncut)
18
Wire (14 Ga. 150 c Orange)
18
Wire (14 Ga. 150 c Yellow)
18
Grease
18
8212471 Whirlpool Oven Paint
18
Wire (12 Ga. 150 c Black)
18
1
18
Wire (14 Ga. 200 c Brown)
18
WPL 308498
18
Wire (14 Ga. 150 c Green)
18
511873 Whirlpool Refrigerator Paint
18
350942 Whirlpool Spray Paint
18
WPL 72112
18
Platinum (Uncut)
18
Enamal, Toast (1 Qt. Uncut)
18
Paint, Spray (13 Oz.) (Platinum)
18
Toast
18
Golden Harvest
18
72113 Whirlpool Touch-Up Paint
18
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18
Almond (Uncut)
18
WP72107 Whirlpool Touchup
18
799344 Whirlpool Refrigerator Paint
18
72017 Whirlpool Appliance Touch-Up Paint White
18
WPL 799832
18
350930 Whirlpool White Spray Paint
18
Wire (14 Ga. 150 c Brown)
18
Wire (14 Ga. 150 c Blue)
18
242831 Whirlpool Oven Wire
18
Paint, Spray 13 Oz. (Avocado)
18
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18
paint, spray 13 oz. (coffee)
18
Paint, Touch-Up 1/2 Oz. (Coffee)
18
72109 Whirlpool Dacor Avocado Touch-Up Paint
18
285006 Whirlpool Spray
18
Wire, 25“ Roll (White 14 GA.)
18
Wire, 25` Roll (Red 14 Ga.)
18
Wire, 25` Roll (Black 14 Ga.)
18
FOIL, ALUMINUM OVEN (18“ X 25 )
18
WPW10208653 Whirlpool Insulation
18
350956 Whirlpool Spray Assembly
←
