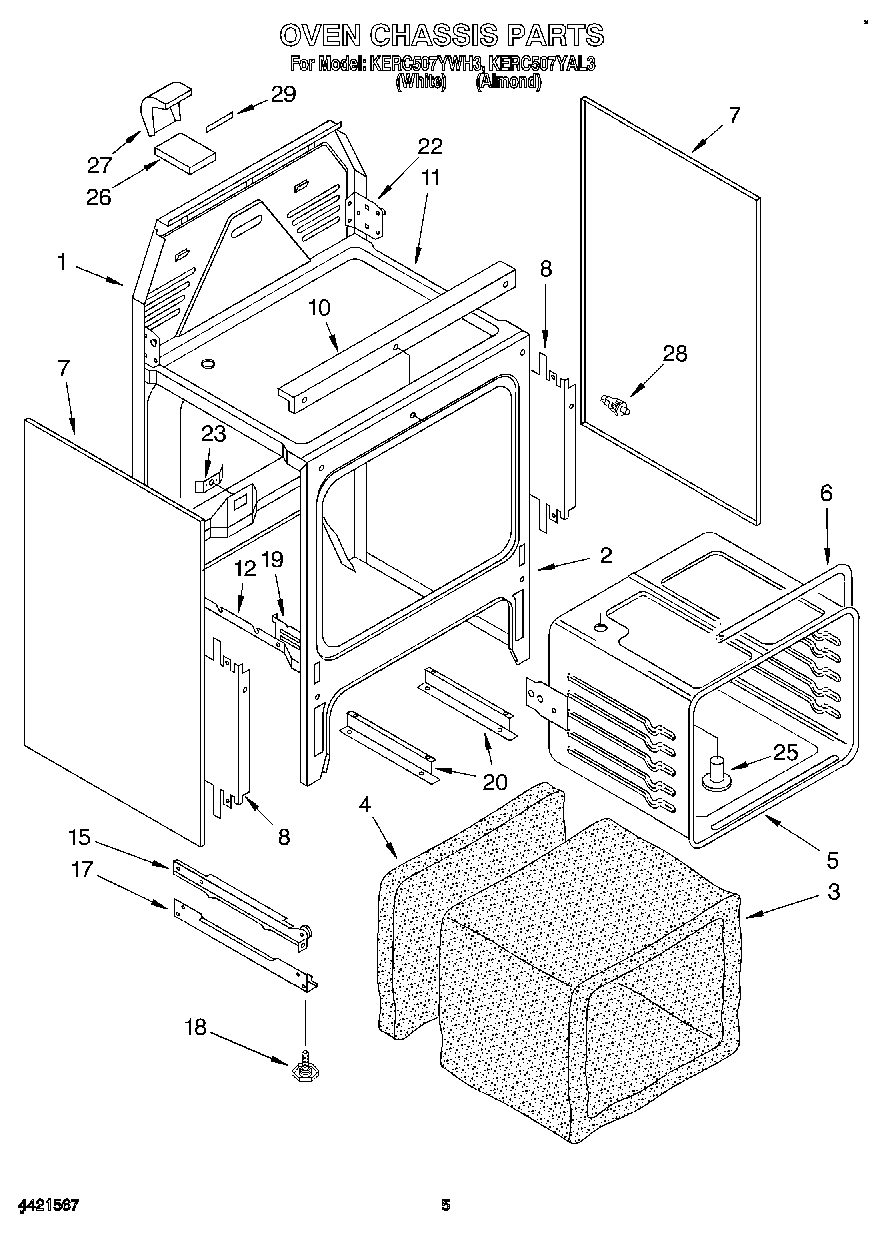

KERC507YWH3 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
10	Guard, Wire
11	Burner Box
11	Screw, (2)
12	Oven Bottom
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (2) 8 x 3/8
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Bracket, Power Cord
23	Screw (4) 10 x 1/2
25	Vent Tube
26	Cover, Vent
27	WP4159387 Whirlpool Compactor Screw
27	Back, Vent
28	Switch, Door
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29	Vent Gasket
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	WA906B Whirlpool Cooktop Glass Scraper
