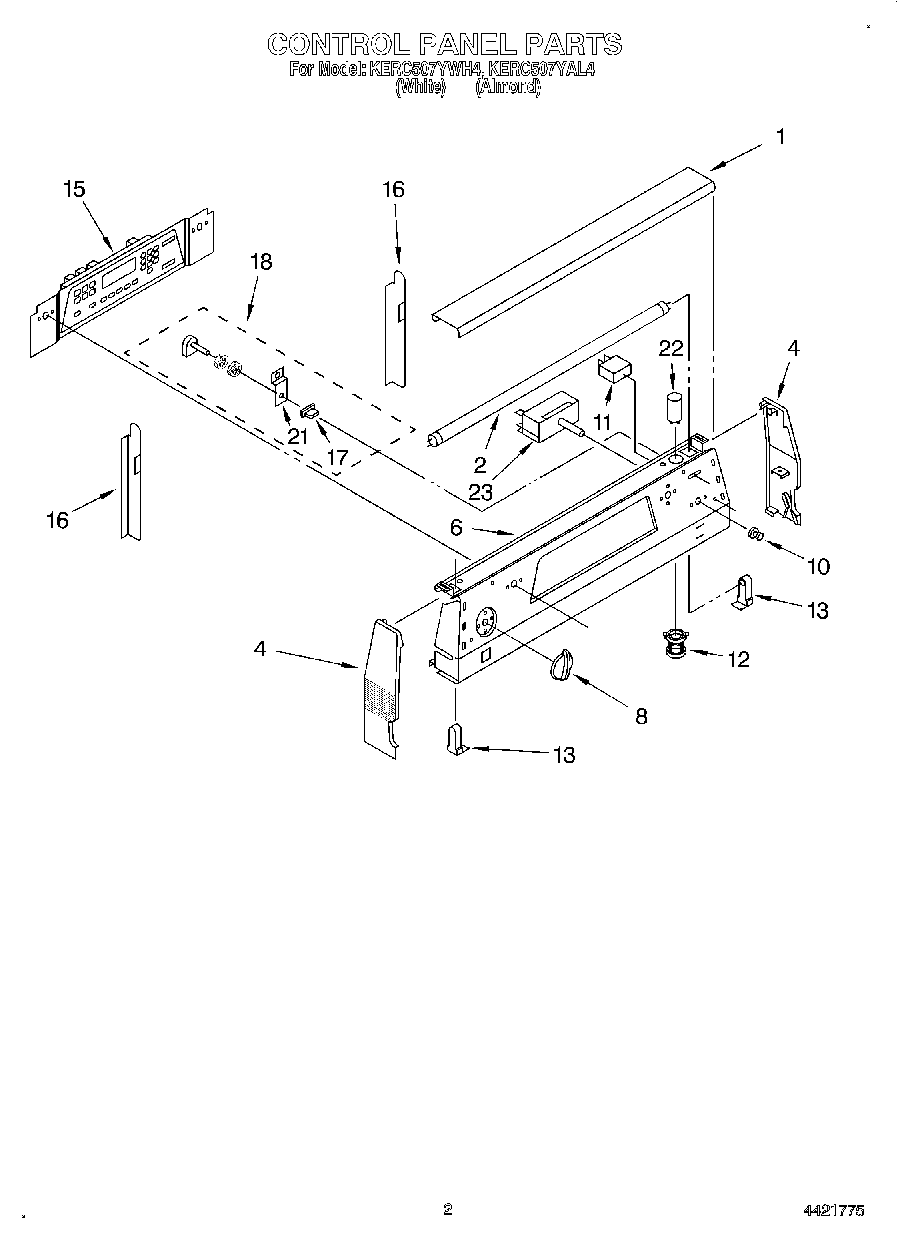

KERC507YWH4 02 – CONTROL PANELadmin2025-04-26T09:52:40+00:00KERC507YWH4 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Lamp Cover (Almond) |
| 1 | Lamp Cover (White) |
| 2 | WP95292 Whirlpool Fluorescent Light Bulb |
| 4 | End Cap L.H. (Almond) |
| 4 | End Cap R.H. (White) |
| 4 | End Cap R.H. (Almond) |
| 4 | End Cap L.H. (White) |
| 4 | WP4159387 Whirlpool Compactor Screw |
| 6 | Panel, Control (White) |
| 6 | Panel, Control (Screw, (2) 8 x 3/8) |
| 6 | Panel, Control (Almond) |
| 8 | Knobs, Control (Almond) |
| 8 | WP9750372FW Whirlpool Knob Assembly |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light Module |
| 12 | Starter, Holder |
| 13 | Receptacle, Lamp |
| 15 | Oven Control Assembly (Almond) |
| 15 | Oven Control Assembly (White) |
| 16 | Brace, Control Pnl |
| 17 | Button, Light (White) |
| 17 | Button, Light (Almond) |
| 18 | Switch, Light |
| 21 | Bracket, Switch |
| 22 | Starter, Light |
| 23 | Infinite Switch (Screw (8) 8-32 x 3/16) |
| 23 | WP9750639 Whirlpool Infinite Switch |
| 23 | WP9750641 Whirlpool Infinite Switch |
