KERC508LSS0 03 – DOOR AND DRAWER PARTS
Written by
in

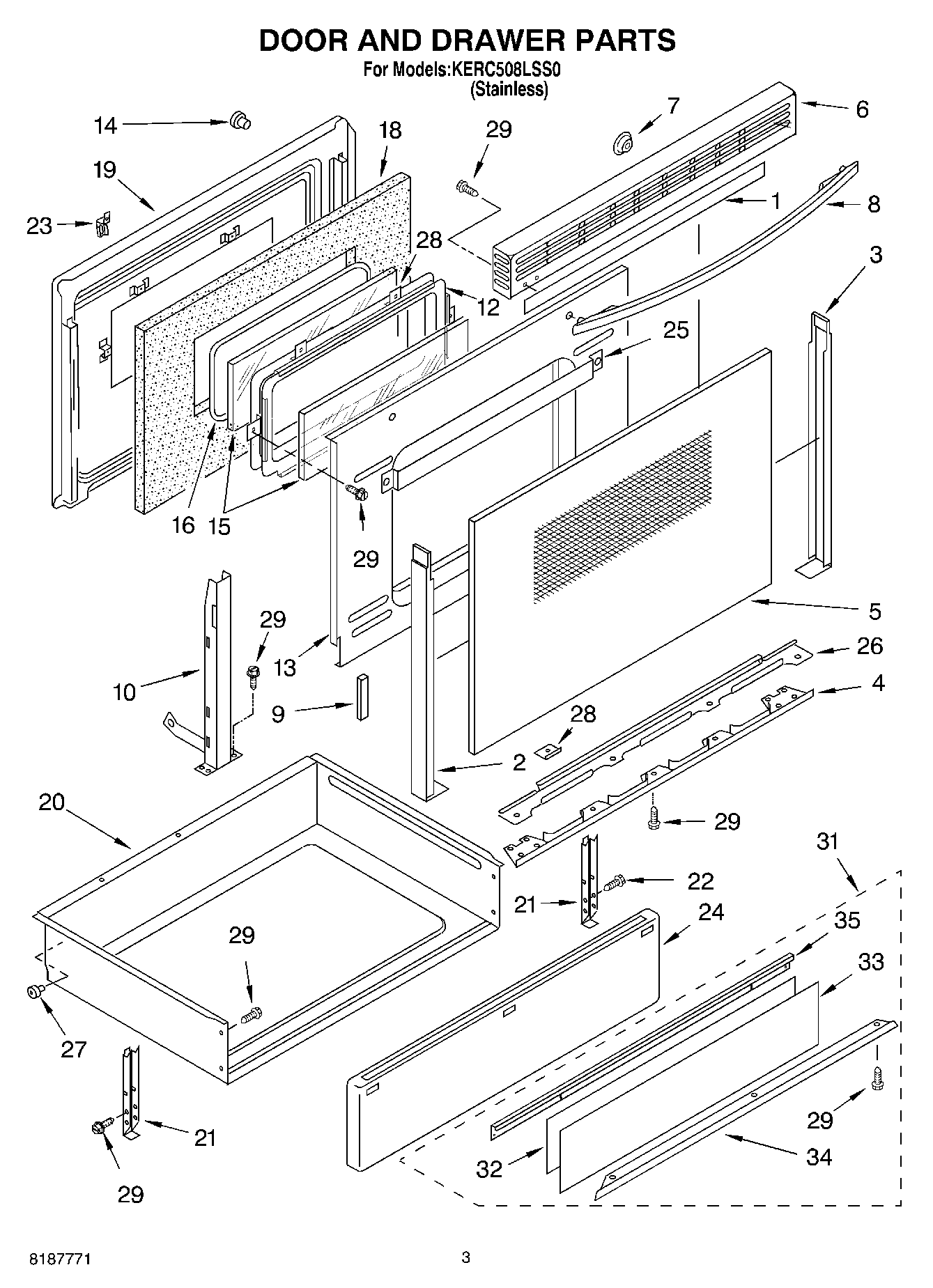

KERC508LSS0 03 – DOOR AND DRAWER PARTS
Products
Position
Product
1
Vent, Door (Gasket, Vent)
2
Trim, Door-Left (Black)
3
Trim, Door-Right (Black)
4
Trim, Door Bottom (Black)
5
Glass, Door (Black Stainless)
6
Vent, Door
8
Handle, Door
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
12
Frame, Window
13
Shield, Door
14
238614 Whirlpool Bumper Hinge
15
WP9781593 Whirlpool Door Glass
16
WP9755177 Whirlpool Wind Gasket
18
Insulation, Door
19
Liner, Door
20
Drawer & Roller
21
Bracket, Drawer
22
Screw (4) 10 x 1/2
23
Retainer, Glass
24
Front, Drawer (Black Stainless)
24
WP90296 Whirlpool Clip
25
Channel, Heat
26
Deflector, Steam
27
814229 Whirlpool Primary Roller
28
Spacer, Door (8)
29
WP4159387 Whirlpool Compactor Screw
31
Black Stainless Only
32
WPL 9753329
33
Panel, Drawer
34
WPL 9750613PB
35
WPL 9750614PB
←
