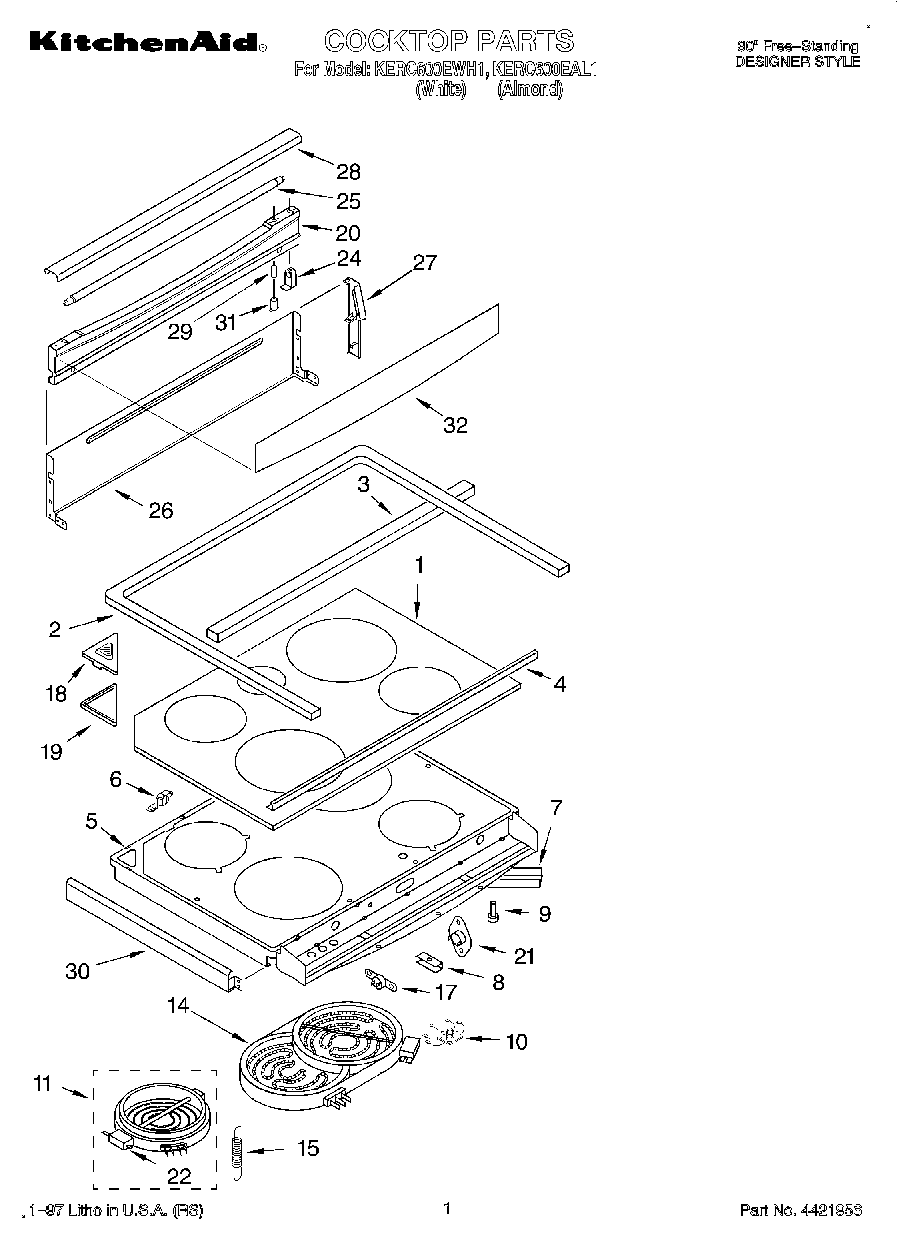

KERC600EAL1 01 – COOKTOP
Written by
in
KERC600EAL1 01 – COOKTOP
Products
Position
Product
1
Cooktop, Ceran (Almond)
1
Cooktop, Ceran (White)
2
WP9780939 Whirlpool Cooktop Gasket
3
Gasket, Console
4
Rear Gasket
5
Support, Element
6
Bracket, Pivot
6
WP4159387 Whirlpool Compactor Screw
7
Brace, Support
8
Screw, 10-16 x 1
8
Support Clip (4)
9
238614 Whirlpool Bumper Hinge
10
Hot Light
11
Element, Surface (7“ R.F. 1700W)
11
Element, Surface (6“ L.R. 1400W)
11
Element, Surface (9“ L.F. 2400W)
14
2500W – RR
15
Spring (15)
17
Thermostat SPST (205)
18
Cover, Vent
19
Gasket, Vent Cover
20
Backsplash (White)
20
Backsplash (Almond)
21
WP9759944 Whirlpool Thermostat
22
Limiter, Temp. (1400 W – LR)
22
Limiter, Temp. (2400 W – LF)
22
Limiter, Temp (1700W – RF)
24
Receptacle, Lamp
25
WP95292 Whirlpool Fluorescent Light Bulb
26
Cover, Backsplash
27
(Endcap, Backsplash (Left Hand)) (White)
27
Endcap, Backsplash (White (Right))
27
Endcap, Backsplash (Almond (Right))
27
(Endcap, Backsplash (Left Hand)) (Almond)
27
Back Splash (Screw (4) 10AB x 1/2“)
28
Cover, Light (White)
28
Cover, Light (Almond)
29
Starter, Light
30
(Trim, Cooktop (Left Hand)) (White)
30
Trim, Cooktop (Almond (Right))
30
Trim, Cooktop (White (Right))
30
Trim, Cooktop (Left Hand) (Almond)
31
Starter, Holder
32
Glass, Backsplash
←
