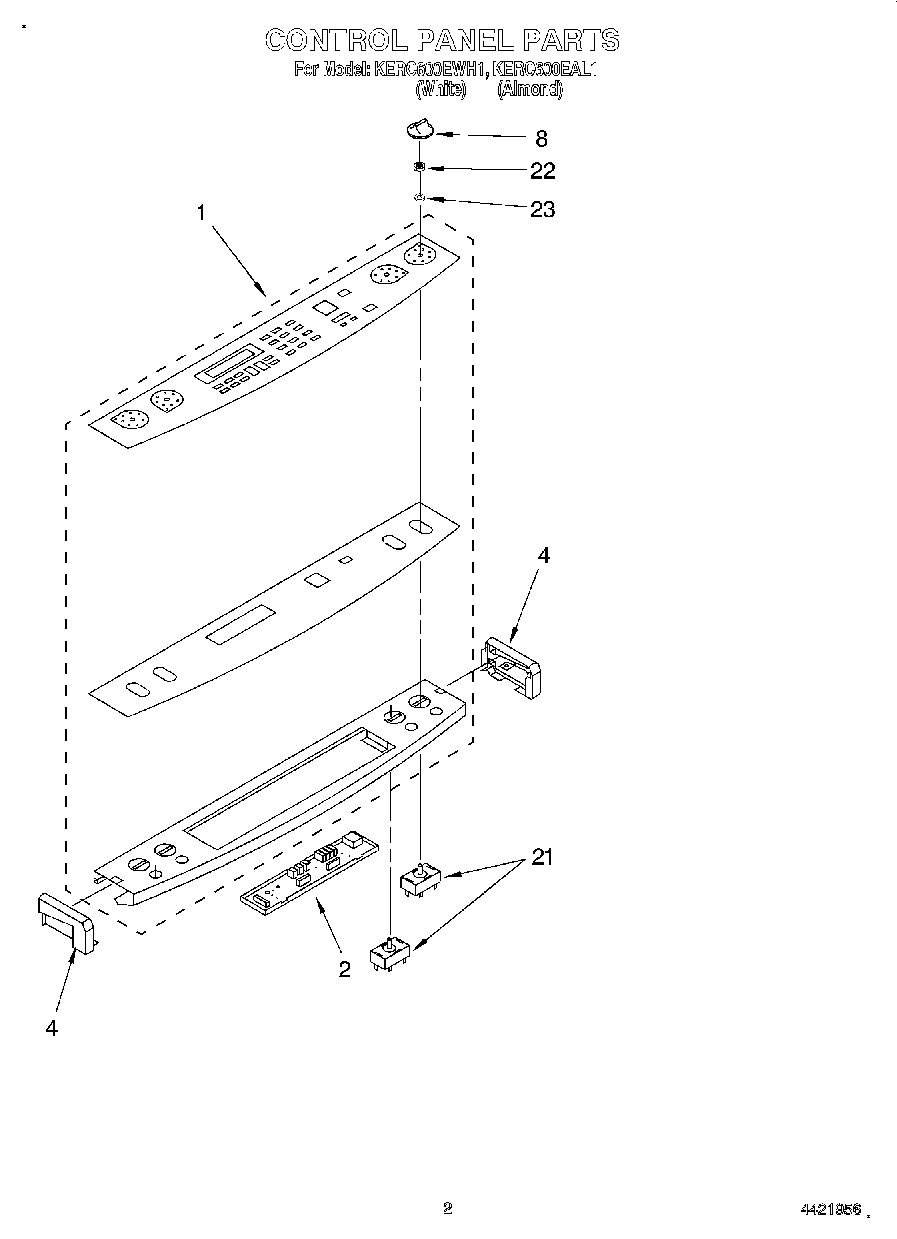

KERC600EAL1 02 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (White)
1Console, Glass (Almond)
2Timer, Electronic
2Screw
4End Cap (Left Hand) (Almond)
4End Cap Right Hand (Almond)
4End Cap (White, Right)
4WP4159387 Whirlpool Compactor Screw
4End Cap (Left Hand) (White)
8Knobs, Control (Black)
8Knobs, Control (Almond)
8WP9750372FW Whirlpool Knob Assembly
218203536 Whirlpool Infinite Switch Primary
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
22Nut, Mounting (Dual Element)
22Nut, Mounting (Single Element)
23Seal, Switch (4)
