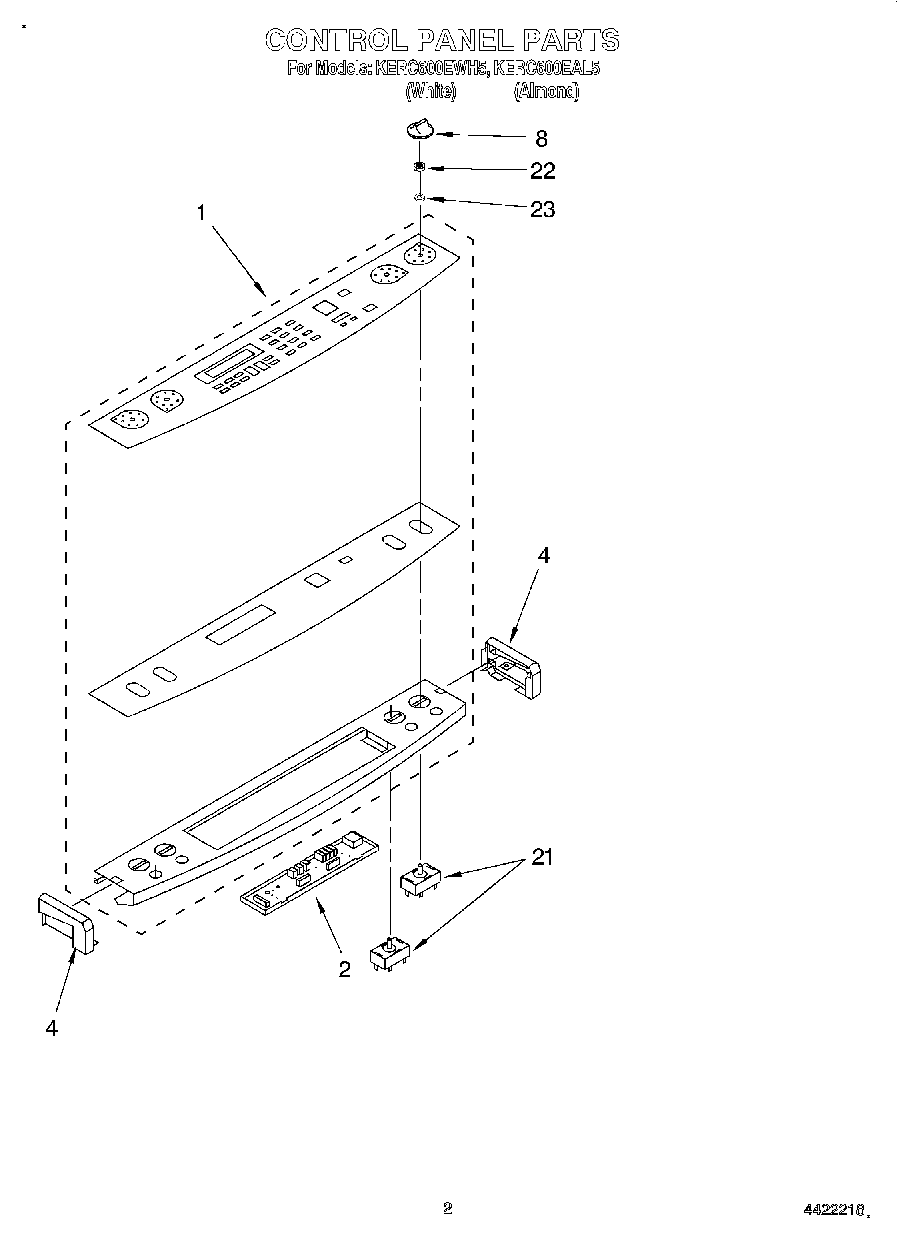

KERC600EAL5 02 – CONTROL PANEL

KERC600EAL5 02 – CONTROL PANEL

Written by

in

KERC600EAL5 02 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (Almond)
1Console, Glass (Spacer)
1Console, Glass (White)
2Screw
2Timer, Electronic
4End Cap (White, Right)
4End Cap Right Hand (Almond)
4End Cap (Left Hand) (White)
4End Cap (Left Hand) (Almond)
4WP4159387 Whirlpool Compactor Screw
8Knobs, Control (4) (Almond)
8WP9750372FW Whirlpool Knob Assembly
218203536 Whirlpool Infinite Switch Primary
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
22Nut, Mounting (Single Element)
22Nut, Mounting (Dual Element)
23Seal, Switch (4)
