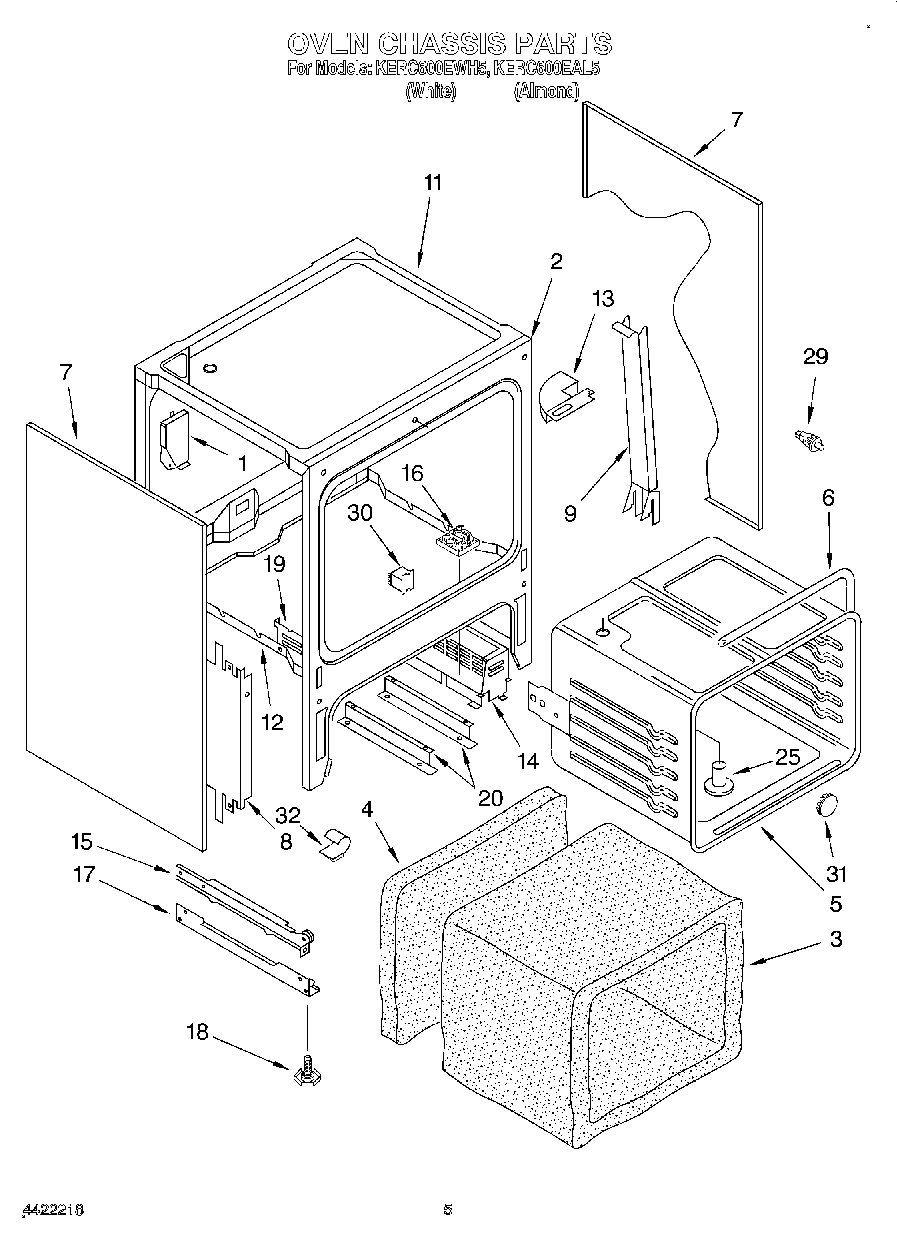

KERC600EAL5 04 – OVEN CHASSIS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (White)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
11	Screw, (2)
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Screw, (3) No.8 x 1``
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (4) 10 x 1/2
20	WP4159387 Whirlpool Compactor Screw
20	Support Rail, Pan
25	Vent Tube
29	Switch, Door
30	Screw
30	Relay, Dlb.
31	Button, Plug
32	Clip, Wire
