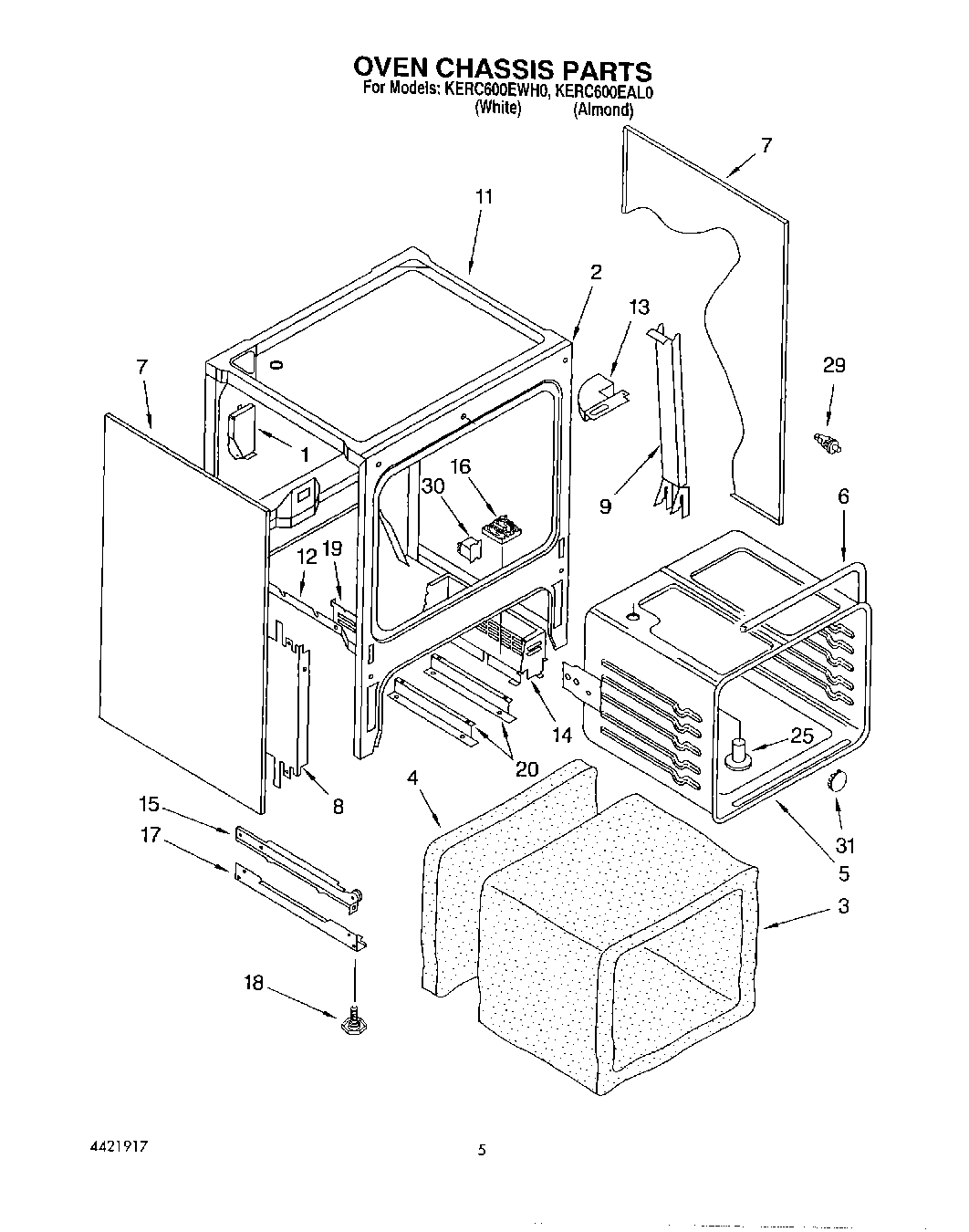

KERC600EWH0 04 – OVEN CHASSISadmin2025-04-26T09:54:27+00:00KERC600EWH0 04 – OVEN CHASSIS
Products
| Position | Product |
|---|
| 1 | Vent Box, Oven |
| 2 | Chassis, Front |
| 3 | Insulation, Wrap |
| 4 | Insulation, Rear |
| 5 | Oven Liner |
| 6 | Gasket Oven |
| 7 | Oven , Side L or R (White) |
| 7 | Oven , Side L or R (Almond) |
| 7 | Oven , Side L or R (Black) |
| 8 | Shield, Insulation |
| 9 | Duct, Side Fan |
| 11 | Burner Box |
| 11 | Screw, (2) |
| 12 | Oven Bottom |
| 13 | Duct, Top |
| 14 | Support, Fan |
| 15 | Drawer Rail, Left |
| 15 | Rail, Drawer (Right) |
| 16 | Screw, (3) No.8 x 1`` |
| 16 | Motor, Fan |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Hinge, Receiver (2) |
| 19 | Screw |
| 20 | Support Rail, Pan |
| 25 | Vent Tube |
| 29 | Switch, Door |
| 30 | Relay, Dlb. |
| 30 | WP4159387 Whirlpool Compactor Screw |
| 31 | Button, Plug |
