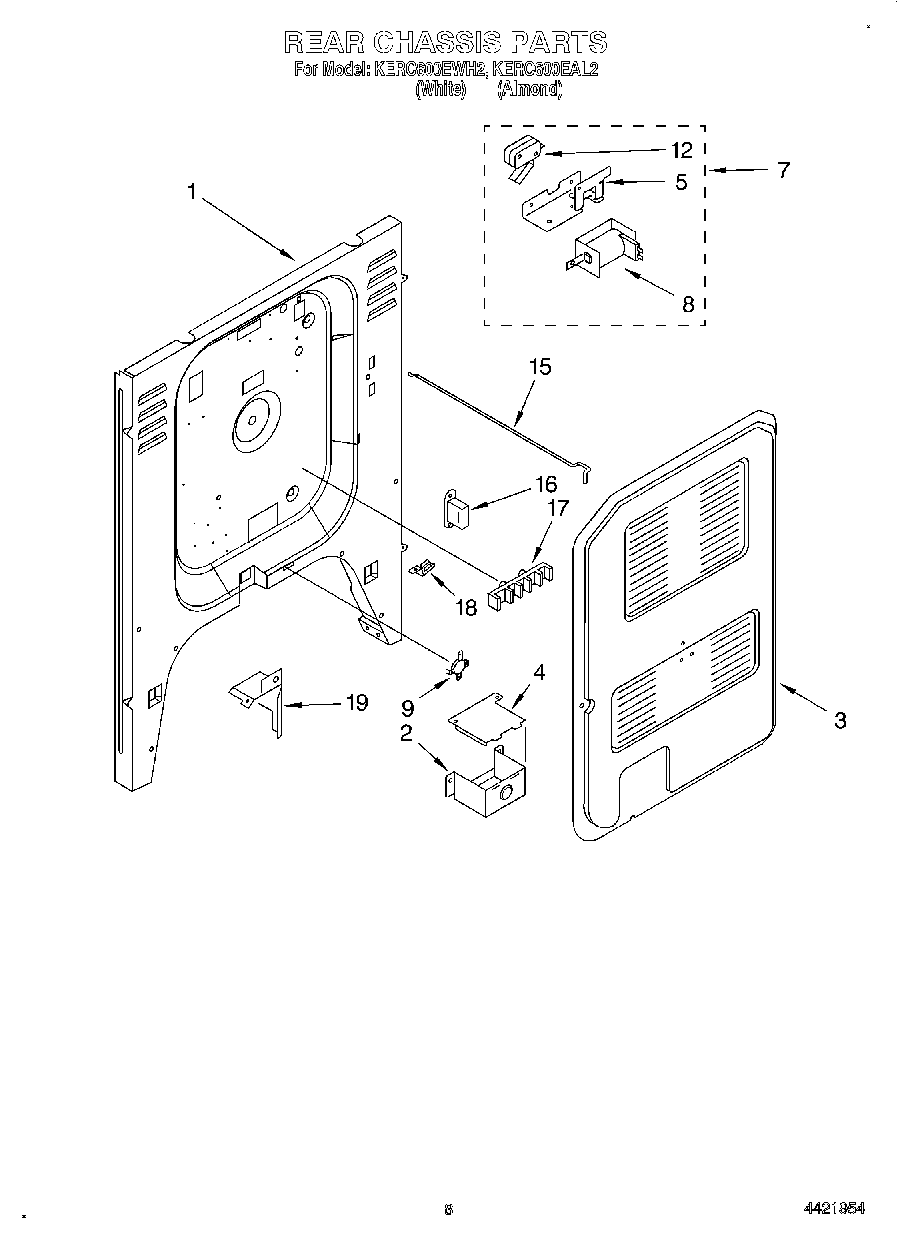

KERC600EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

KERC600EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC600EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9752043
	WPL LIT9752390
	WPL LIT9752014
	WPL LIT9751598
	WPL LIT9751594
	WPL 9781486
	WPL 9752380
	WPL 9752367
	WPL 9752036
	WPL 9751750
	WPL 9752077
	WPL 9750376
	WPL 9751868
	WPW10339879 Whirlpool Wire Tie
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
3	Screw, (2) 10 x 3/8
4	Cover, Terminal Box
5	Bracket, Lock
7	Oven Lock Assembly
8	Screw, (2) 10-32 x 5/16
8	Solenoid
8	Washer
9	Fuse, Safety
12	Switch, Interlock
12	Screw, (2)
12	Nut (2)
15	Rod, Lock
16	Ballast
17	WP112432 Whirlpool Nut Assembly
17	WP8203546 Whirlpool Terminal Block
17	Screw, (2) 10-16 x 1
18	Clip, Ground Wire
18	Ground Strap
18	SCREW
19	8212471 Whirlpool Oven Paint
19	1
19	Nut, Mounting (Single Element)
19	Golden Harvest (Uncut)
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Insulation, Rear
19	WPL 9751798
19	Insulation, Wrap
19	Grease
19	Wire (14 Ga. 200 c Brown)
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	WPL 799832
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WA906B Whirlpool Cooktop Glass Scraper
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	WPL 9751745
19	WP4159387 Whirlpool Compactor Screw
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	350930 Whirlpool White Spray Paint
