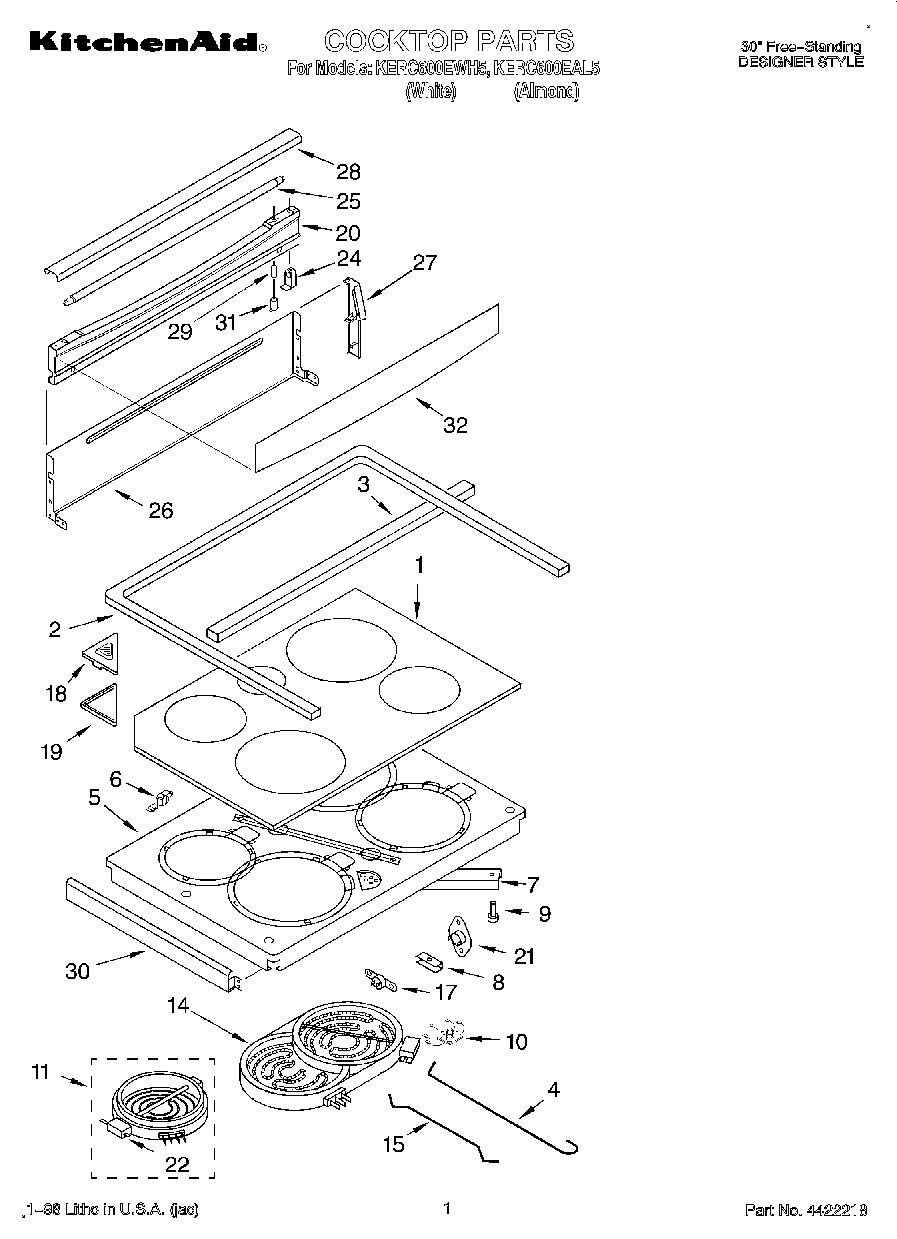

KERC600EWH5 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Almond)
1	Cooktop, Ceran (White)
2	WP9780939 Whirlpool Cooktop Gasket
2	Rear Gasket
3	Gasket, Console
4	Rod, Large Ceran Element
5	Support, Element
6	Bracket, Pivot
6	WP4159387 Whirlpool Compactor Screw
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, 10-16 x 1
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (6“ L.R. 1400W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (9“ L.F. 2400W)
14	2500W – RR
15	Rod, Small Ceran Element
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (Almond)
21	WP9759944 Whirlpool Thermostat
22	Limiter, Temp (1700W – RF)
22	Limiter, Temp. (2400 W – LF)
22	Limiter, Temp. (1400 W – LR)
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Cover, Backsplash
27	Endcap, Backsplash (White (Right))
27	Endcap, Backsplash (Almond (Right))
27	(Endcap, Backsplash (Left Hand)) (White)
27	(Endcap, Backsplash (Left Hand)) (Almond)
27	Back Splash (Screw (4) 10AB x 1/2“)
28	Cover, Light (White)
28	Cover, Light (Almond)
29	Starter, Light
30	(Trim, Cooktop (Left Hand)) (White)
30	Trim, Cooktop (Almond (Right))
30	Trim, Cooktop (White (Right))
30	Trim, Cooktop (Left Hand) (Almond)
31	Starter, Holder
32	Glass, Backsplash
