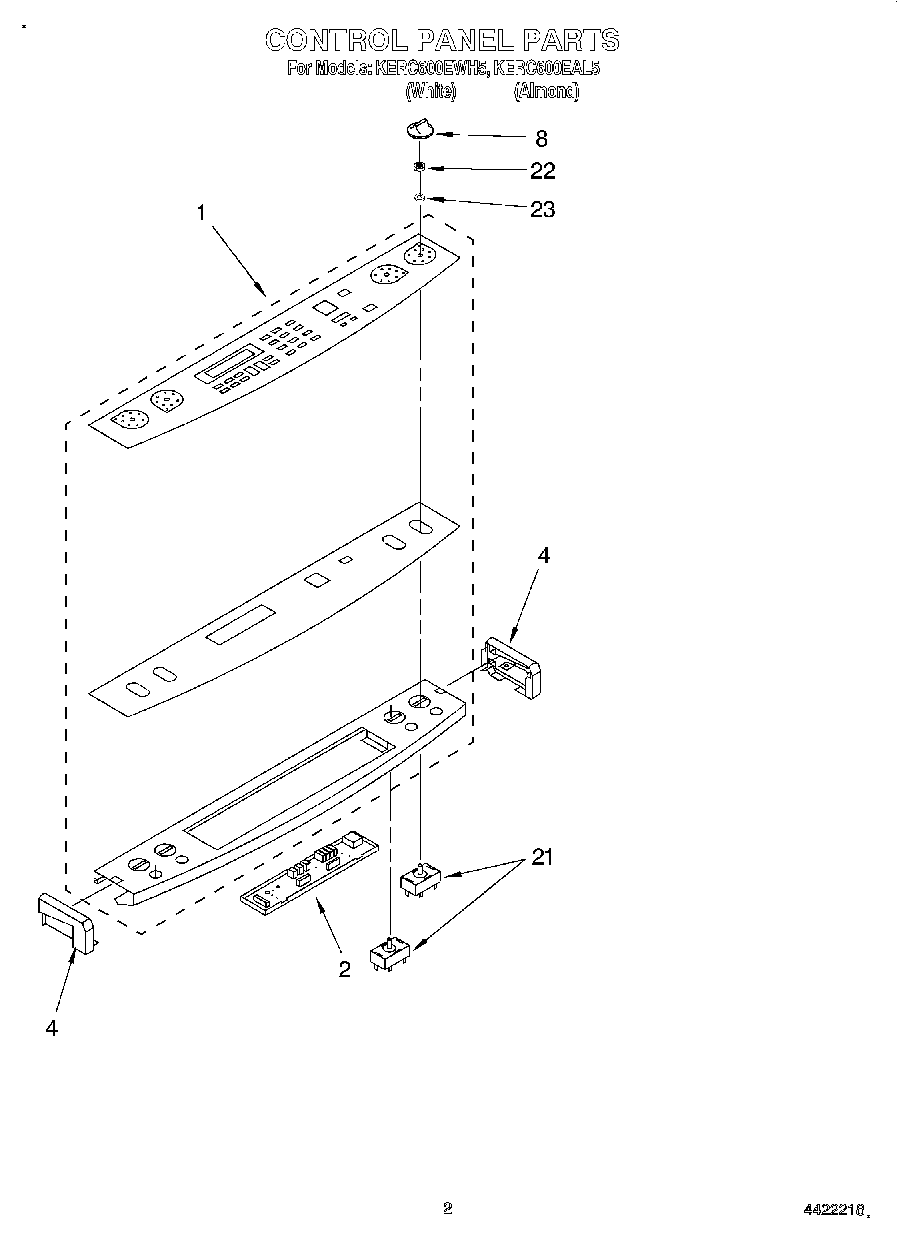

KERC600EWH5 02 – CONTROL PANEL

Products

Position	Product
1	Console, Glass (Almond)
1	Console, Glass (Spacer)
1	Console, Glass (White)
2	Screw
2	Timer, Electronic
4	End Cap (White, Right)
4	End Cap Right Hand (Almond)
4	End Cap (Left Hand) (White)
4	End Cap (Left Hand) (Almond)
4	WP4159387 Whirlpool Compactor Screw
8	Knobs, Control (4) (Almond)
8	WP9750372FW Whirlpool Knob Assembly
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	Seal, Switch (4)
