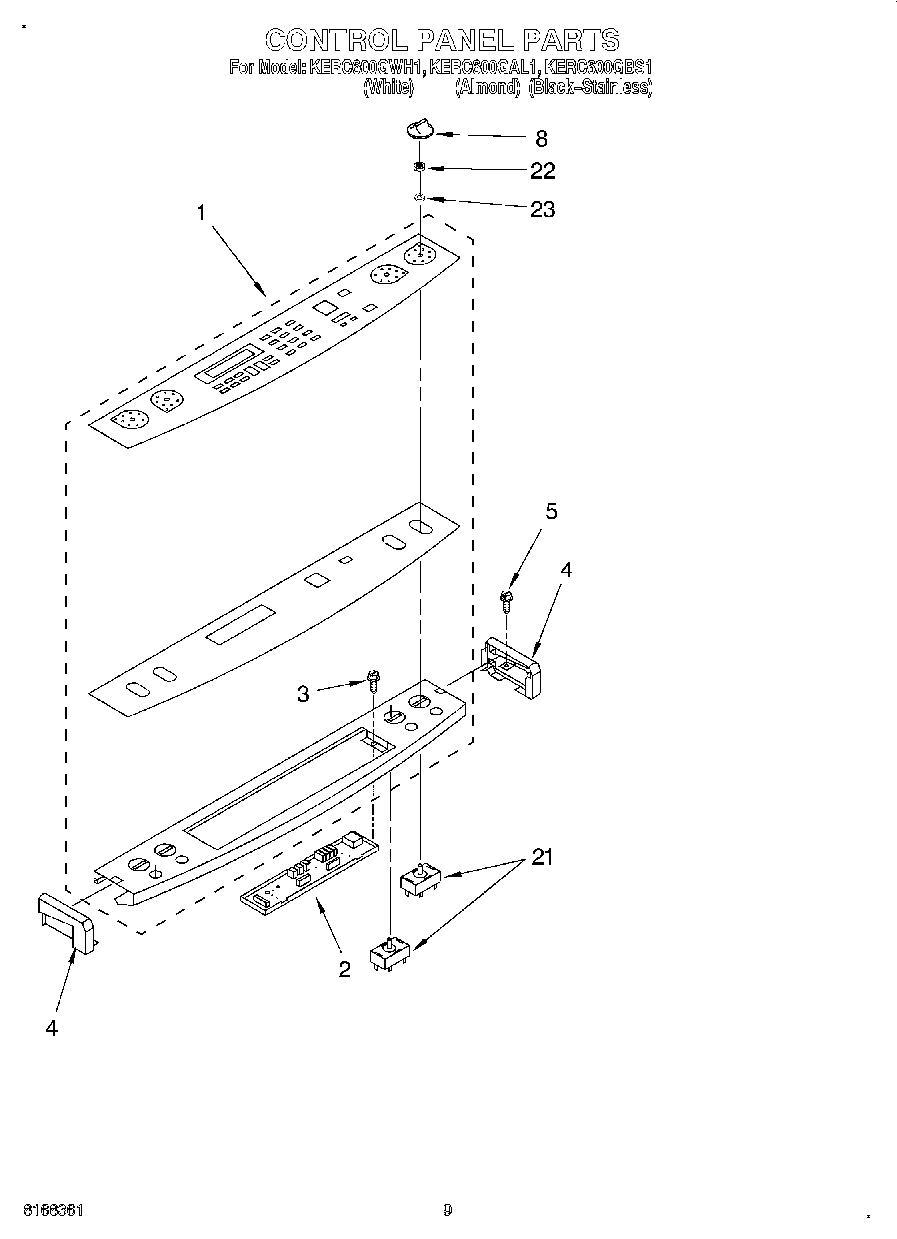

KERC600GAL1 06 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Smart & Easy Guide)
	WPL LIT9753311
	WPL LIT9752043
	WPL 9781822
	WPL LIT9753028
	WPL LIT9753027
	WPW10339879 Whirlpool Wire Tie
	WPL 9781757
	WPL 9781655
	WPL 9781769
	WPL 9781767
	WPL 9753382
	SCREW
	Safer Cooking Tips
	3400964 Whirlpool Oven Clip
	WPL 9751868
	WPL 9751750
	WPL 9750376
	WPL LIT9752775
1	Console, Glass (Spacer)
1	Console, Glass (Black)
1	Console, Glass (Almond)
1	Console, Glass (Washer)
1	Console, Glass (White)
2	Timer, Electronic
3	Screw
4	End Cap (Black, Right)
4	End Cap (White, Right)
4	End Cap (Black, Left)
4	End Cap Right Hand (Almond)
4	End Cap (Left Hand) (White)
4	End Cap (Left Hand) (Almond)
5	WP4159387 Whirlpool Compactor Screw
8	Knobs, Control (4) (Almond)
8	WP9750372FF Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	Insulation, Rear
23	Toast
23	Paint, Spray (13 Oz.) (Platinum)
23	Enamal, Toast (1 Qt. Uncut)
23	Platinum (Uncut)
23	WPL 72112
23	350942 Whirlpool Spray Paint
23	511873 Whirlpool Refrigerator Paint
23	WPL 799832
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Golden Harvest (Uncut)
23	Golden Harvest
23	350930 Whirlpool White Spray Paint
23	350956 Whirlpool Spray Assembly
23	Insulation, Wrap
23	72017 Whirlpool Appliance Touch-Up Paint White
23	799344 Whirlpool Refrigerator Paint
23	WP72107 Whirlpool Touchup
23	Almond (Uncut)
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	72113 Whirlpool Touch-Up Paint
23	WA906B Whirlpool Cooktop Glass Scraper
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25` Roll (Red 14 Ga.)
23	242831 Whirlpool Oven Wire
23	8212471 Whirlpool Oven Paint
23	Wire (14 Ga. 150 c Blue)
23	Wire (14 Ga. 150 c Brown)
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Green)
23	Grease
23	Wire (14 Ga. 150 c Yellow)
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	paint, spray 13 oz. (coffee)
23	Paint, Spray 13 Oz. (Avocado)
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	WPL 9751745
23	Seal, Switch (4)
23	Wire (14 Ga. 150 c Orange)
