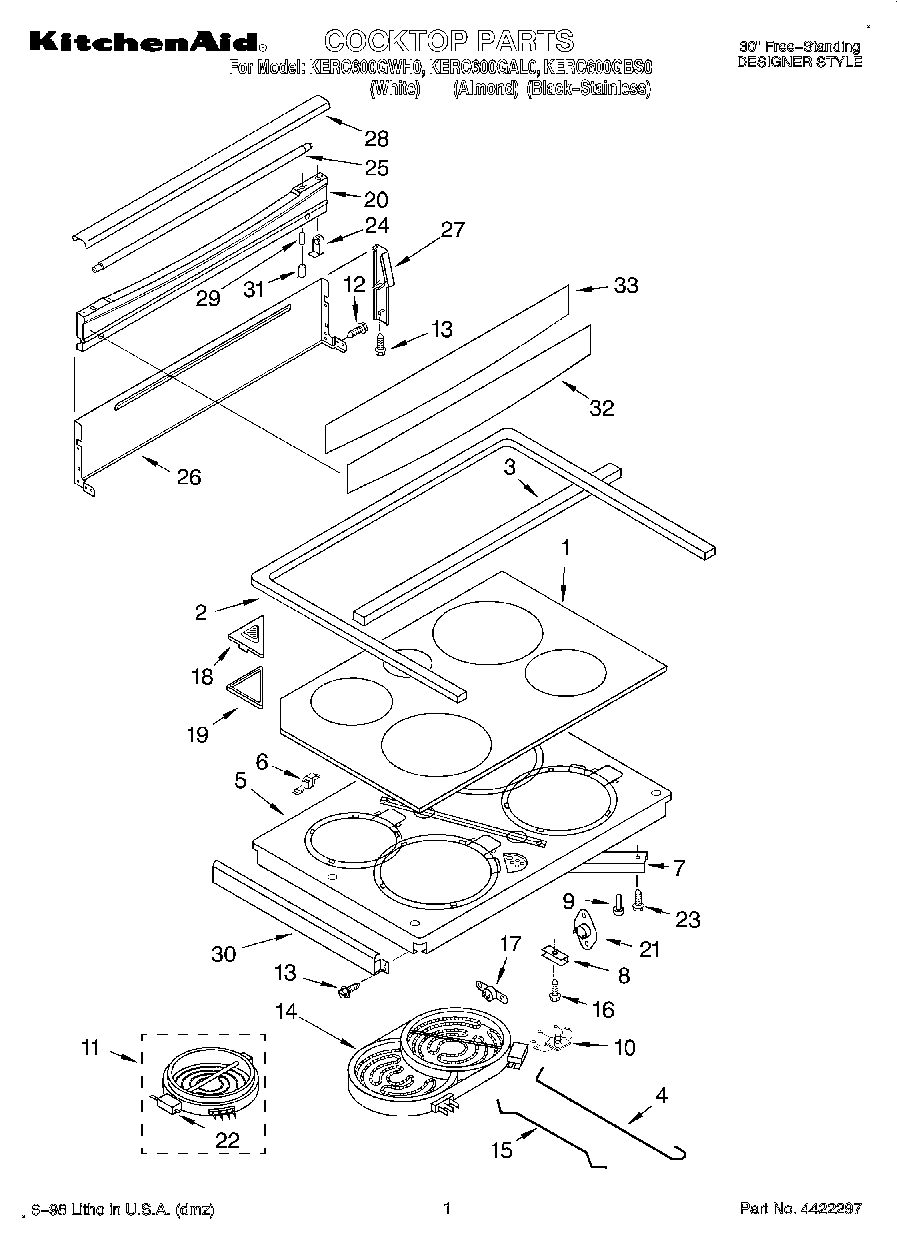

KERC600GBS0 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Black)
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Almond)
2	WP9780939 Whirlpool Cooktop Gasket
2	Rear Gasket
3	Gasket, Console
4	Rod, Large Ceran Element
5	Support, Element
6	Bracket, Pivot
7	Brace, Support
8	Support Clip (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (9“ L.F. 2400W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
13	WP4159387 Whirlpool Compactor Screw
14	2500W – RR
15	Rod, Small Ceran Element
16	Screw, 10-16 x 1
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (White)
20	Backsplash (Almond)
20	Backsplash (Black)
21	WP9759944 Whirlpool Thermostat
22	Limiter, Temp (1700W – RF)
22	Limiter, Temp. (1400 W – LR)
22	Limiter, Temp. (2400 W – LF)
23	Screw (4) 10 x 1/2
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Cover, Backsplash
27	Endcap, Backsplash (White (Right))
27	Endcap, Backsplash (Almond (Right))
27	(Endcap, Backsplash (Left Hand)) (White)
27	Endcap, Backsplash (Black (Right))
27	(Endcap, Backsplash (Left Hand)) (Almond)
27	Back Splash (Screw (4) 10AB x 1/2“)
27	Endcap, Backsplash (Black (Left))
28	Cover, Light (White)
28	Cover, Light (Almond)
28	Cover, Light (Black)
29	Starter, Light
30	WPL 9751276PB
30	Trim, Cooktop (Black (Right))
30	(Trim, Cooktop (Left Hand)) (White)
30	Trim, Cooktop (White (Right))
30	Trim, Cooktop (Almond (Right))
30	Trim, Cooktop (Left Hand) (Almond)
31	Starter, Holder
32	Glass, Backsplash
32	WP9753292 Whirlpool Backsplash Glass
33	WPL 9753291
