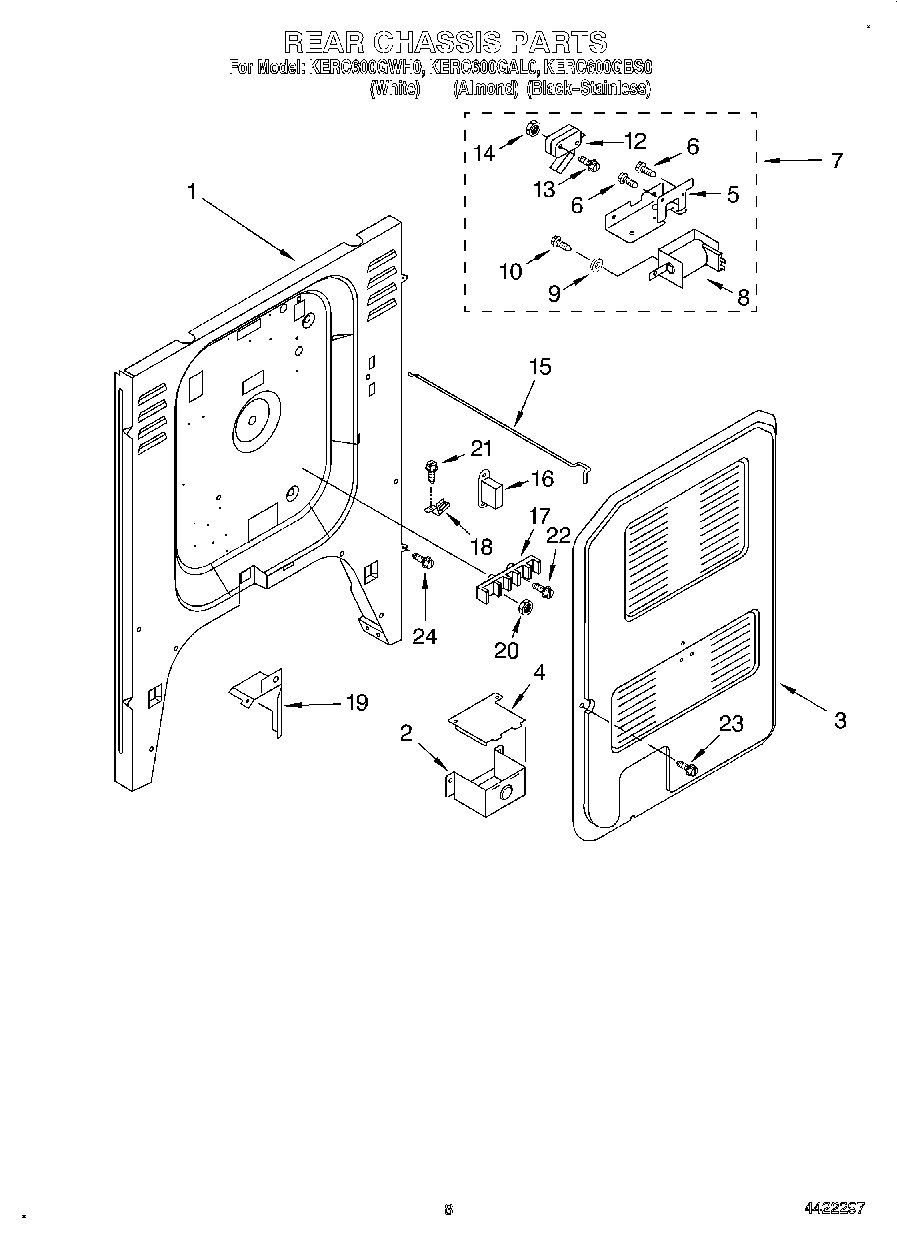

KERC600GBS0 05 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
4	Cover, Terminal Box
5	Bracket, Lock
6	WP4159387 Whirlpool Compactor Screw
7	Oven Lock Assembly
8	Solenoid
9	Screw (2) 10-32 x 5/16
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast
16	Washer (2)
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
18	Clip, Ground Wire
19	WPL 9751798
20	WP112432 Whirlpool Nut Assembly
21	SCREW
22	Screw, (2) 10-16 x 1
23	Screw (4) 10 x 3/8
24	340184 Whirlpool Screw
