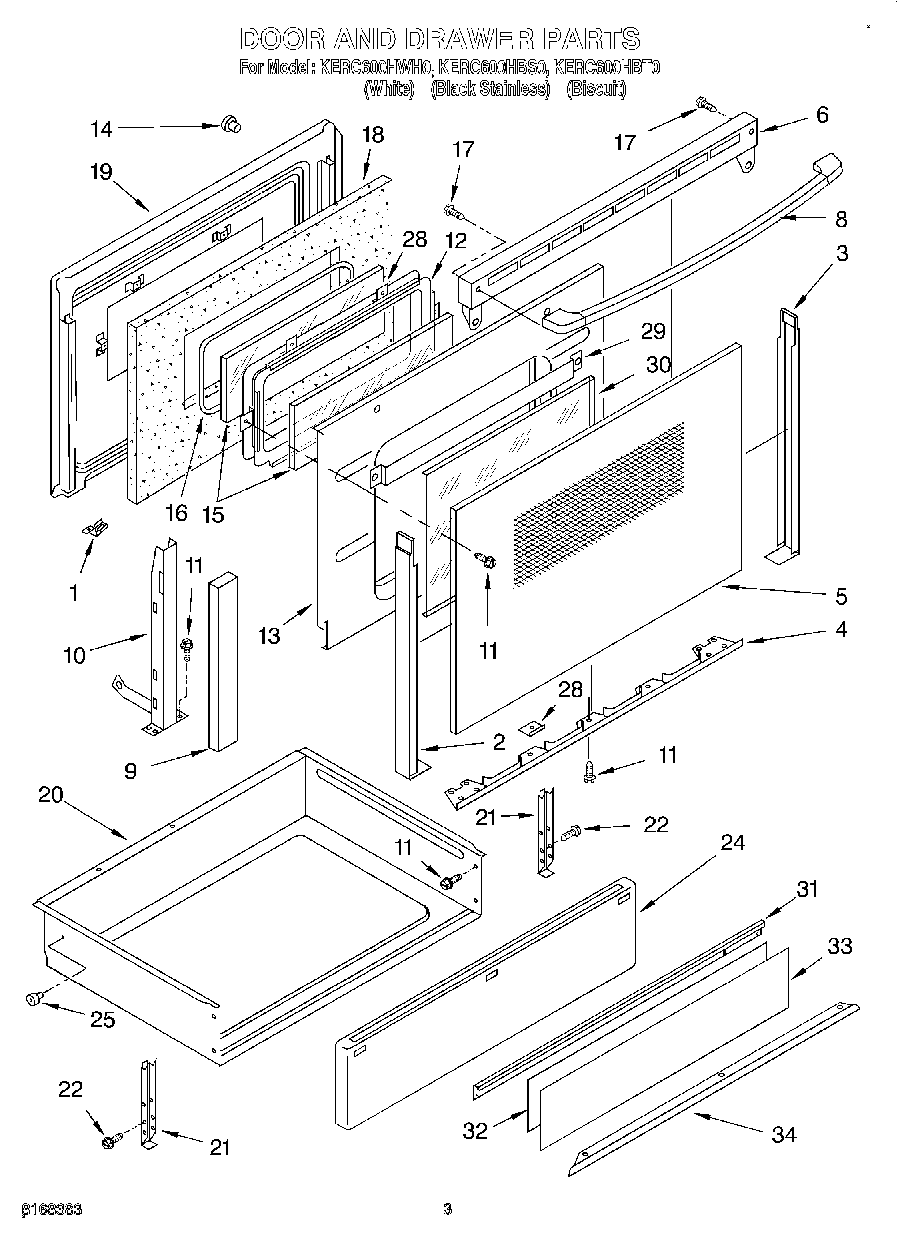

KERC600HWH0 02 – DOOR AND DRAWER

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (White)
2	Trim, Door-Left (Biscuit)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Biscuit)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (Biscuit)
4	Trim, Door Bottom (White)
5	Glass, Door Front (White)
5	Glass, Door (Black)
5	Glass, Door Front (Biscuit)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (Biscuit)
6	Vent, Door (White)
6	Vent, Door (Black)
8	Handle, Door (White)
8	Handle, Door (Black)
8	Handle, Door (Biscuit)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	WP4159387 Whirlpool Compactor Screw
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
17	WPW10001180 Whirlpool Refrigerator Screw
18	Insulation
19	Liner, Door
20	Drawer & Roller
20	Drawer & Roller
21	Bracket, Drawer
22	Screw (4) 10 x 1/2
24	Front, Drawer (Biscuit)
24	Front, Drawer (White)
24	Front, Drawer (Black)
25	814229 Whirlpool Primary Roller
25	WP90296 Whirlpool Clip
28	Spacer, Door (8)
29	Channel, Heat
30	Baffle, Glass
31	WPL 9750614PB
32	WPL 9753329
33	WPL 9753293
34	WPL 9750613PB
