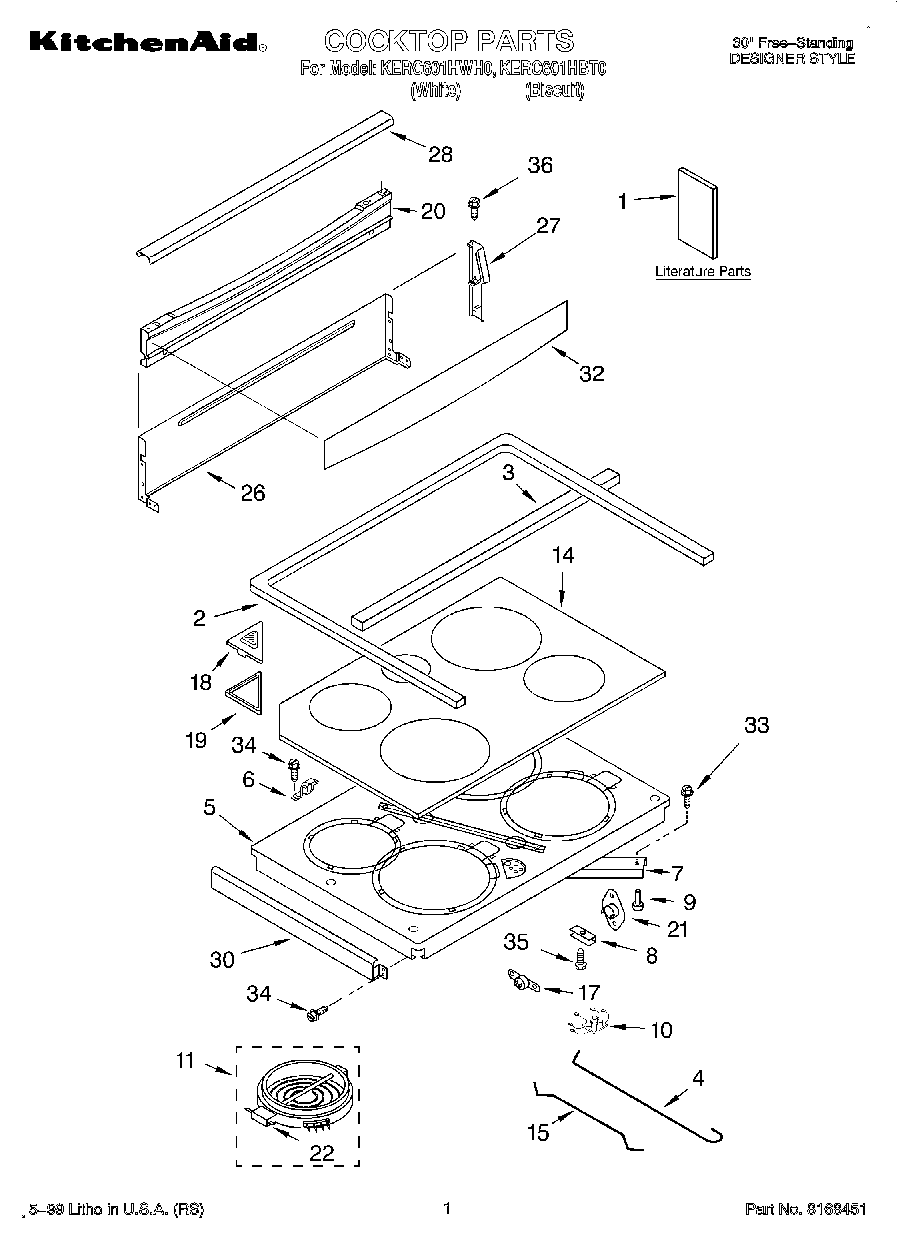

KERC601HBT0 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	WPL LIT9753027
1	WPL LIT9752775
1	Literature Parts (Smart & Easy Guide)
1	WPL LIT9753028
1	WPL LIT9752043
1	Literature Parts (Use & Care Guide)
2	Rear Gasket
2	WP9780939 Whirlpool Cooktop Gasket
3	Gasket, Console
4	Rod, Large Ceran Element
5	Support, Element
6	Bracket, Pivot
6	Washer, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823698 Whirlpool Surface Element Right Rear
11	Element, Surface (2200W – RR)
11	W10823692 Whirlpool Dual Radiant Element
11	W10823699 Whirlpool Right Front Surface Element
14	Cooktop, Ceran (White)
14	Cooktop, Ceran (Biscuit)
15	Rod, Small Ceran Element
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (White)
20	Backsplash (Biscuit)
21	WP9759944 Whirlpool Thermostat
22	Limiter, Temp. (LF)
22	Limiter, Temp. (LR-RF-RR)
26	Cover, Backsplash
27	Endcap, Backsplash (White, Left)
27	Endcap, Backsplash (White, Right)
27	Endcap, Backsplash (Biscuit, Right)
27	Endcap, Backsplash (Biscuit, Left)
28	Cover, Light (Biscuit)
28	Cover, Light (White)
30	WPL 9751275PC
30	(Trim, Cooktop (Left Hand)) (White)
30	WPL 9751276PC
30	Trim, Cooktop (White (Right))
32	WPL 9753910CC
32	WPL 9753910C
33	Screw (4) 10 x 1/2
34	WP4159387 Whirlpool Compactor Screw
35	Screw, 10-16 x 1
36	Back Splash (Screw (4) 10AB x 1/2“)
