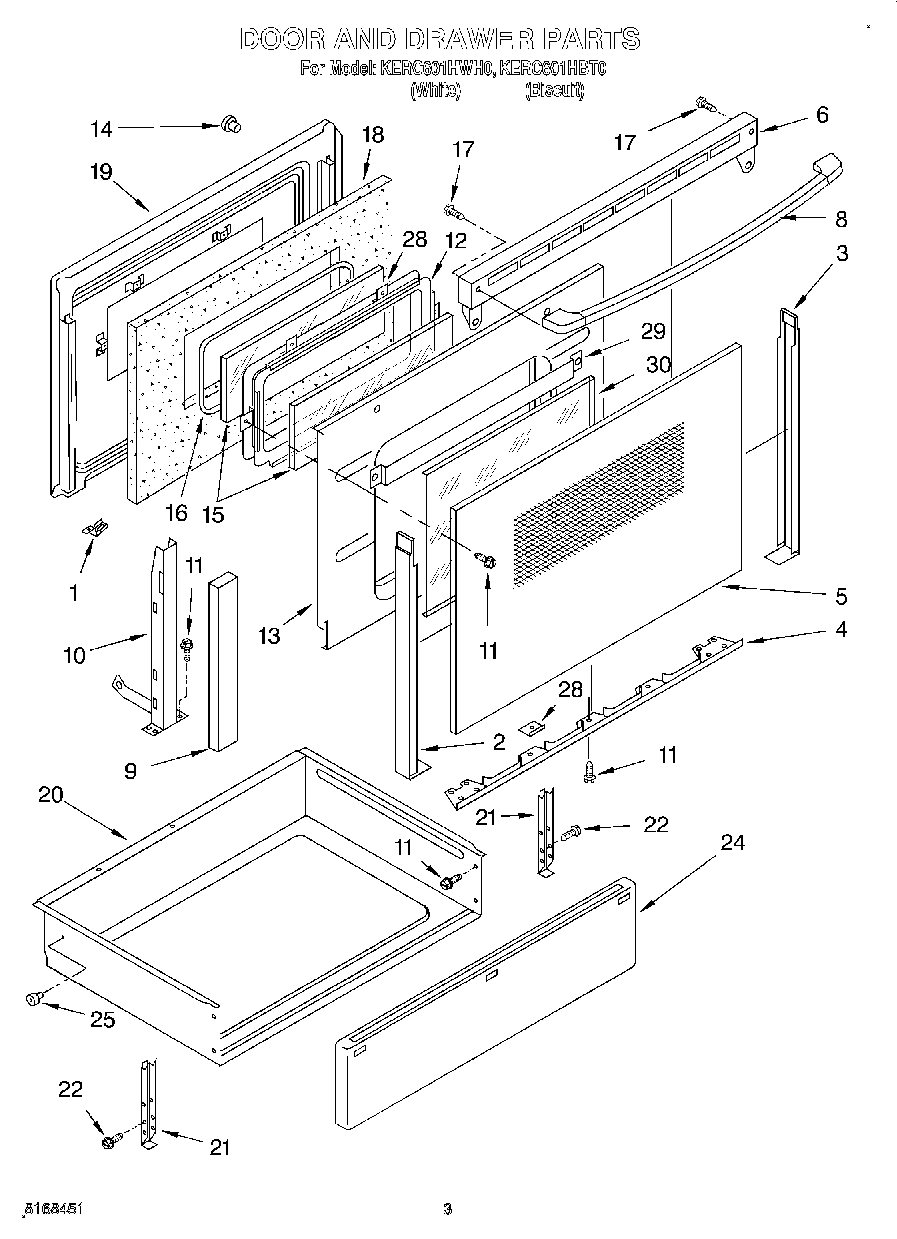

KERC601HBT0 02 – DOOR AND DRAWER
Written by
in
KERC601HBT0 02 – DOOR AND DRAWER
Products
Position
Product
1
Retainer, Glass
2
Trim, Door-Left (White)
2
Trim, Door-Left (Biscuit)
3
Trim, Door-Right (Biscuit)
3
Trim, Door-Right (White)
4
Trim, Door Bottom (Biscuit)
4
Trim, Door Bottom (White)
5
Glass, Door Front (Biscuit)
5
Glass, Door Front (White)
6
Vent, Door (Biscuit)
6
Vent, Door (White)
6
Vent, Door (Seal, Door Vent Side)
6
Vent, Door (Gasket, Vent)
8
Handle, Door (White)
8
Handle, Door (Biscuit)
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
11
WP4159387 Whirlpool Compactor Screw
12
Frame, Window
13
Shield, Door
14
238614 Whirlpool Bumper Hinge
15
WP9781593 Whirlpool Door Glass
16
WP9755177 Whirlpool Wind Gasket
17
WPW10001180 Whirlpool Refrigerator Screw
18
Insulation
19
Liner, Door
20
Drawer & Roller
21
Bracket, Drawer
22
Screw (4) 10 x 1/2
24
Front, Drawer (Biscuit)
24
Front, Drawer (White)
25
WP90296 Whirlpool Clip
25
814229 Whirlpool Primary Roller
28
Spacer, Door (8)
29
Channel, Heat
30
Baffle, Glass
←
