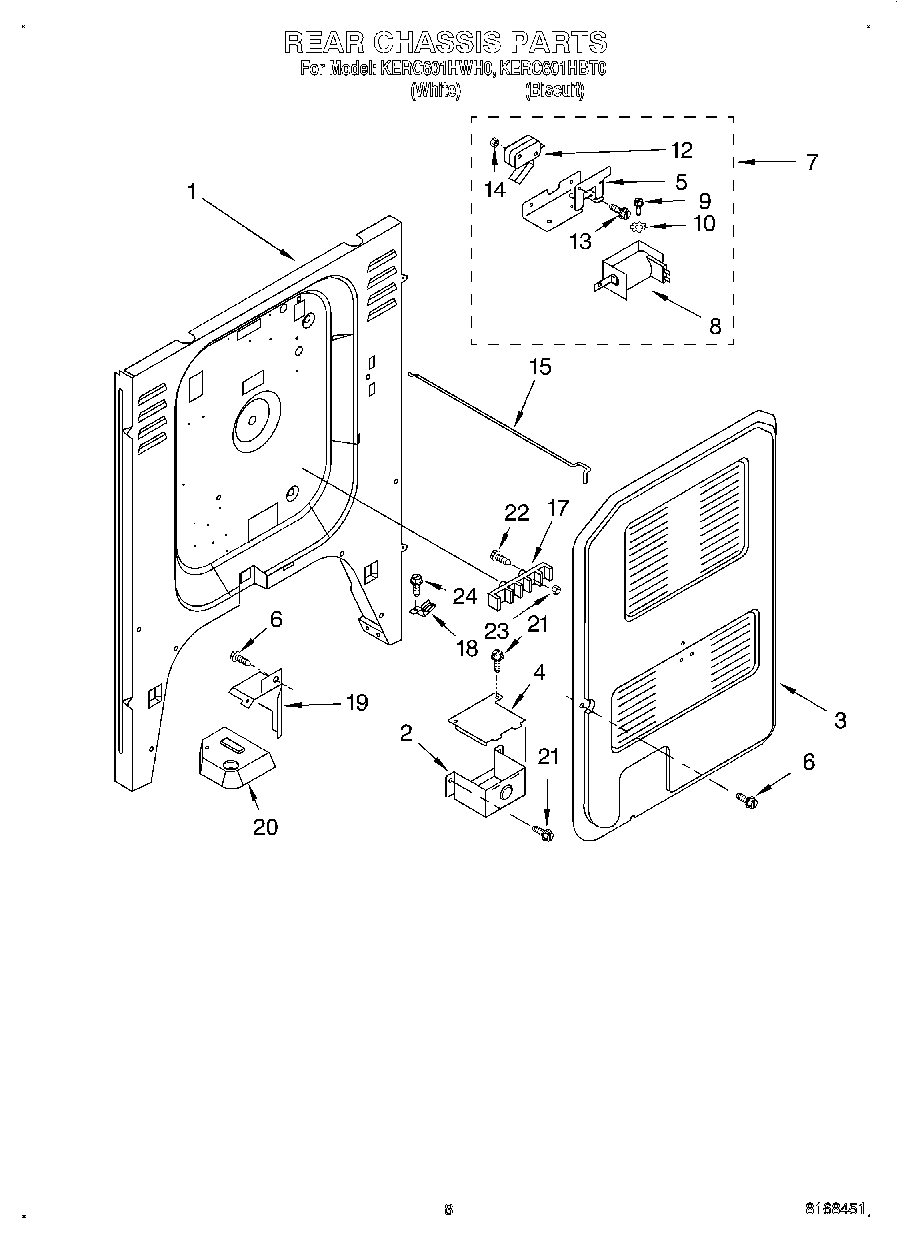

KERC601HBT0 05 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
4	Cover, Terminal Box
5	Bracket, Lock
6	WP4159387 Whirlpool Compactor Screw
7	Oven Lock Assembly
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
19	WPL 9751798
20	Block, Balance
21	Screw (4) 10 x 1/2
22	Screw, (2) 10-16 x 1
23	WP112432 Whirlpool Nut Assembly
24	SCREW
