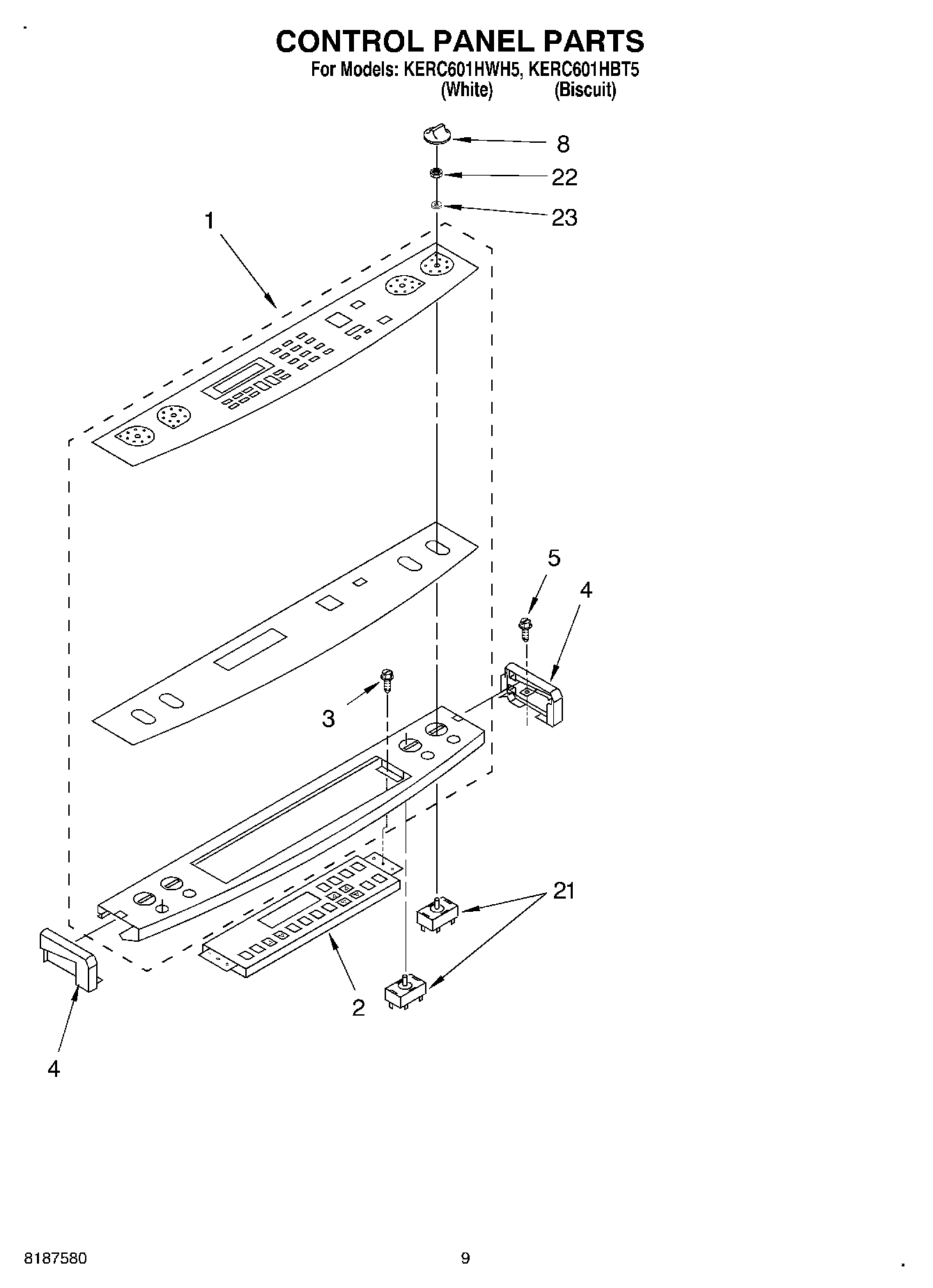

KERC601HBT5 06 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	Console, Glass (White)
1	Console, Glass (Spacer)
1	Console, Glass (Biscuit)
2	Timer, Electronic
3	Screw
4	End Cap (Biscuit, Left)
4	End Cap (White, Right)
4	End Cap (Biscuit, Right)
4	End Cap (Left Hand) (White)
5	WP4159387 Whirlpool Compactor Screw
8	WP9750372FC Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
21	Switch, Infinite (1700W, RF)
21	WP9755175 Whirlpool Infinite Switch
21	Switch, Infinite (1250-1500W, LR)
21	Switch, Infinite (2100-2600W, LF)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	8212471 Whirlpool Oven Paint
23	Wire (12 Ga. 150 c Black)
23	18 Ga. 80~c Rating (Red)
23	1
23	Wire (14 Ga. 200 c Brown)
23	Grease
23	Seal, Switch (4)
23	WPL 9751868
23	WPL 9782118
23	WPL 9781767
23	WPL 9781655
23	WPL 9781769
23	WPL 9782183
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	350942 Whirlpool Spray Paint
23	SCREW
23	WP90016 Whirlpool Clip
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WA906B Whirlpool Cooktop Glass Scraper
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Clip, Ground Wire
23	WPL 9750376
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	8528351 Whirlpool Clip
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	350930 Whirlpool White Spray Paint
