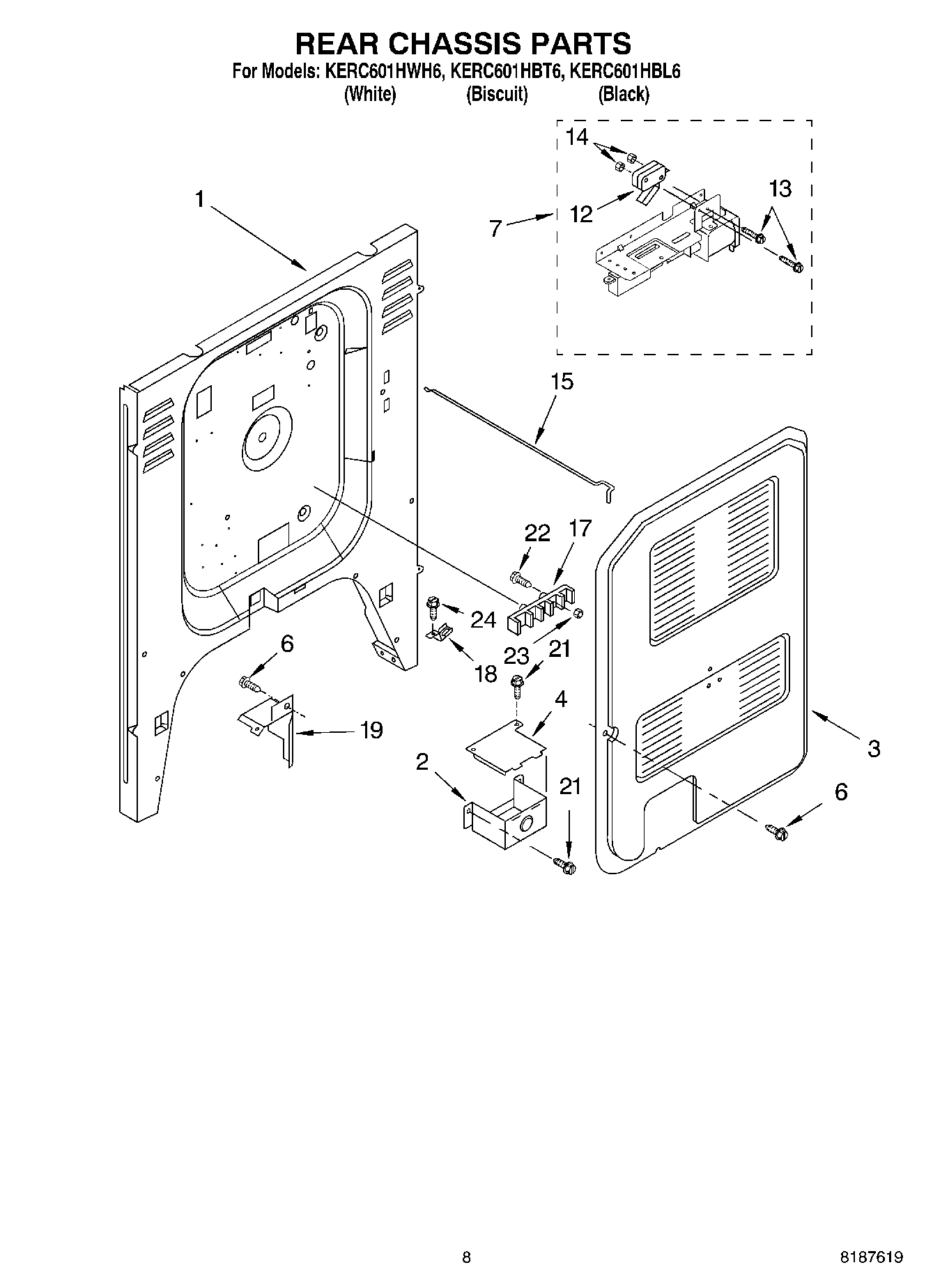

KERC601HBT6 05 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
4	Cover, Terminal Box
6	WP4159387 Whirlpool Compactor Screw
7	Oven Lock Assembly
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
19	WPL 9751798
21	Screw (4) 10 x 1/2
22	Screw, (2) 10-16 x 1
23	WP112432 Whirlpool Nut Assembly
24	SCREW
