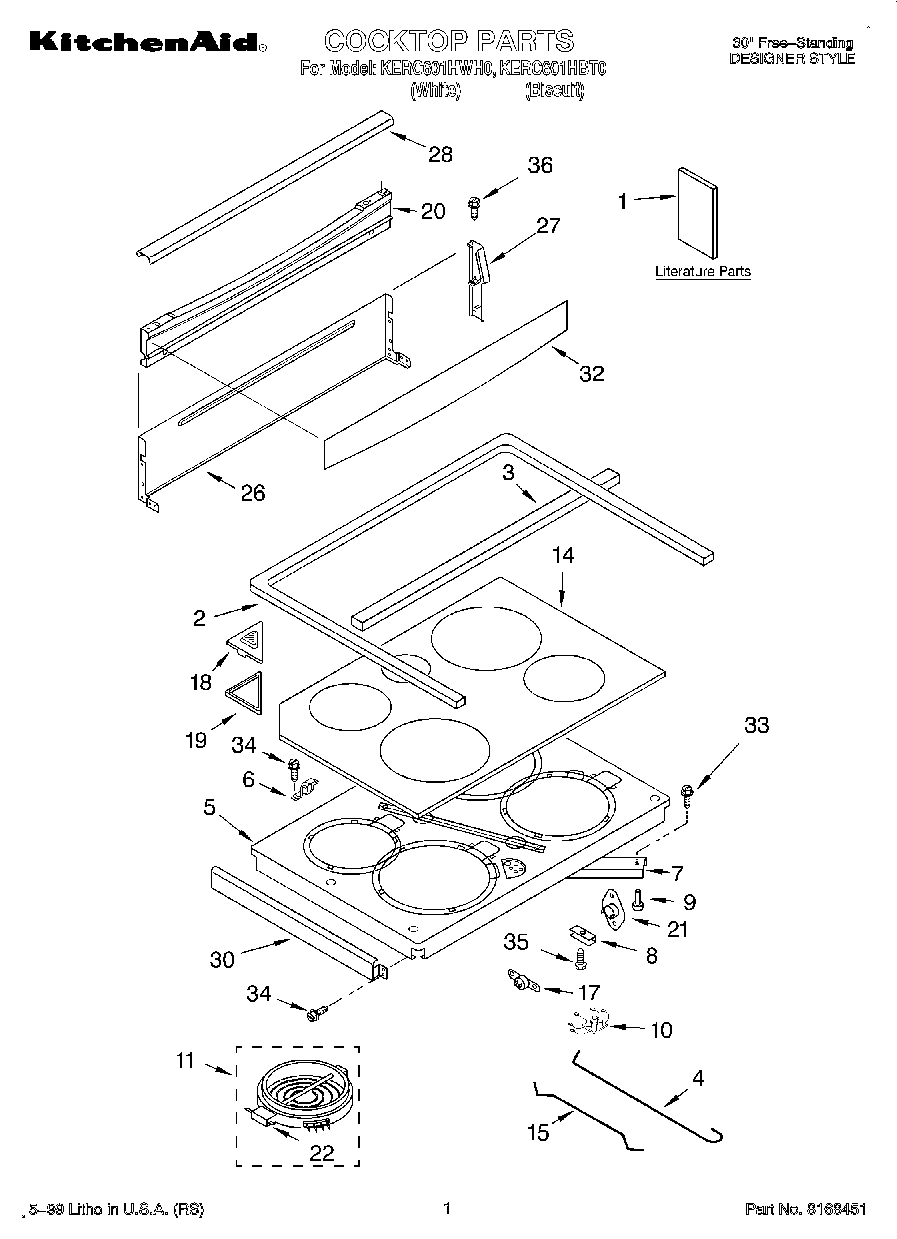

KERC601HWH0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1WPL LIT9753027
1WPL LIT9752775
1Literature Parts (Smart & Easy Guide)
1WPL LIT9753028
1WPL LIT9752043
1Literature Parts (Use & Care Guide)
2Rear Gasket
2WP9780939 Whirlpool Cooktop Gasket
3Gasket, Console
4Rod, Large Ceran Element
5Support, Element
6Bracket, Pivot
6Washer, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823698 Whirlpool Surface Element Right Rear
11Element, Surface (2200W – RR)
11W10823692 Whirlpool Dual Radiant Element
11W10823699 Whirlpool Right Front Surface Element
14Cooktop, Ceran (White)
14Cooktop, Ceran (Biscuit)
15Rod, Small Ceran Element
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (White)
20Backsplash (Biscuit)
21WP9759944 Whirlpool Thermostat
22Limiter, Temp. (LF)
22Limiter, Temp. (LR-RF-RR)
26Cover, Backsplash
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (Biscuit, Left)
28Cover, Light (Biscuit)
28Cover, Light (White)
30WPL 9751275PC
30(Trim, Cooktop (Left Hand)) (White)
30WPL 9751276PC
30Trim, Cooktop (White (Right))
32WPL 9753910CC
32WPL 9753910C
33Screw (4) 10 x 1/2
34WP4159387 Whirlpool Compactor Screw
35Screw, 10-16 x 1
36Back Splash (Screw (4) 10AB x 1/2“)
