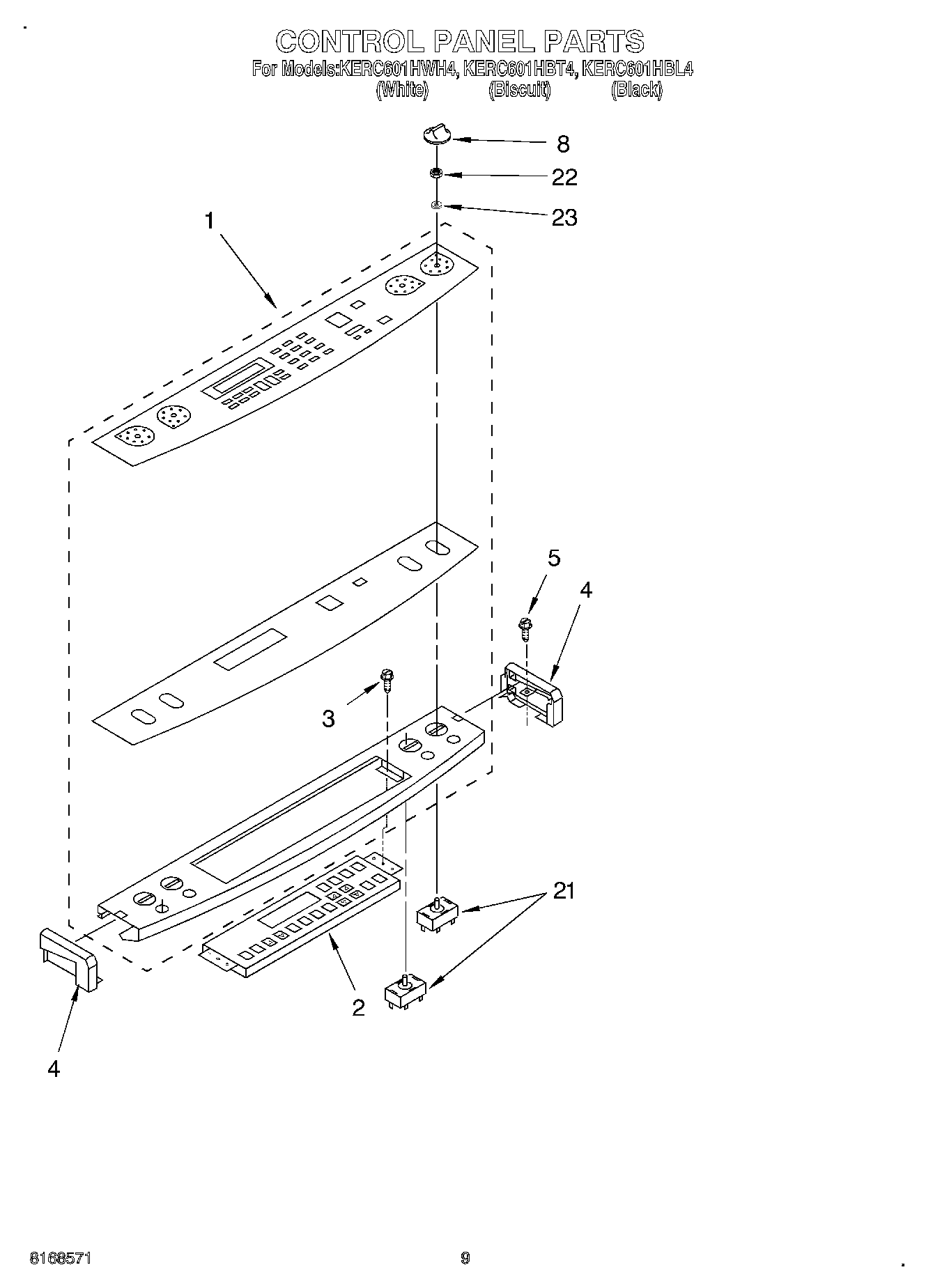

KERC601HWH4 06 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	Console, Glass (White)
1	Console, Glass (Spacer)
1	Console, Glass (Black)
1	Console, Glass (Biscuit)
2	Timer, Electronic
3	Screw
4	End Cap (Biscuit, Right)
4	End Cap (Left Hand) (White)
4	End Cap (Black, Left)
4	End Cap (Black, Right)
4	End Cap (Biscuit, Left)
4	End Cap (White, Right)
5	WP4159387 Whirlpool Compactor Screw
8	WP9750372FF Whirlpool Knob
8	WP9750372FC Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Dual Element)
22	Nut, Mounting (Single Element)
23	WPL 9752954
23	WPL 9781932
23	WPL 9781769
23	WPL 9781767
23	511873 Whirlpool Refrigerator Paint
23	WPL 9751868
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	Seal, Switch (4)
23	Grease
23	WPL 799832
23	8212471 Whirlpool Oven Paint
23	WPL 9781655
23	4392901 Whirlpool Biscuit Spray Paint
23	350930 Whirlpool White Spray Paint
23	350956 Whirlpool Spray Assembly
23	72017 Whirlpool Appliance Touch-Up Paint White
23	799344 Whirlpool Refrigerator Paint
23	WP72107 Whirlpool Touchup
23	Almond (Uncut)
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	SCREW
23	Golden Harvest (Uncut)
23	Golden Harvest
23	350942 Whirlpool Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Wire (14 Ga. 150 c Green)
23	3400964 Whirlpool Oven Clip
23	WPL 9751745
23	WPL 9750376
23	Wire, 25` Roll (Red 14 Ga.)
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	8528351 Whirlpool Clip
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	Clip, Ground Wire
23	242831 Whirlpool Oven Wire
23	Insulation, Rear
23	Insulation, Wrap
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	WA906B Whirlpool Cooktop Glass Scraper
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
