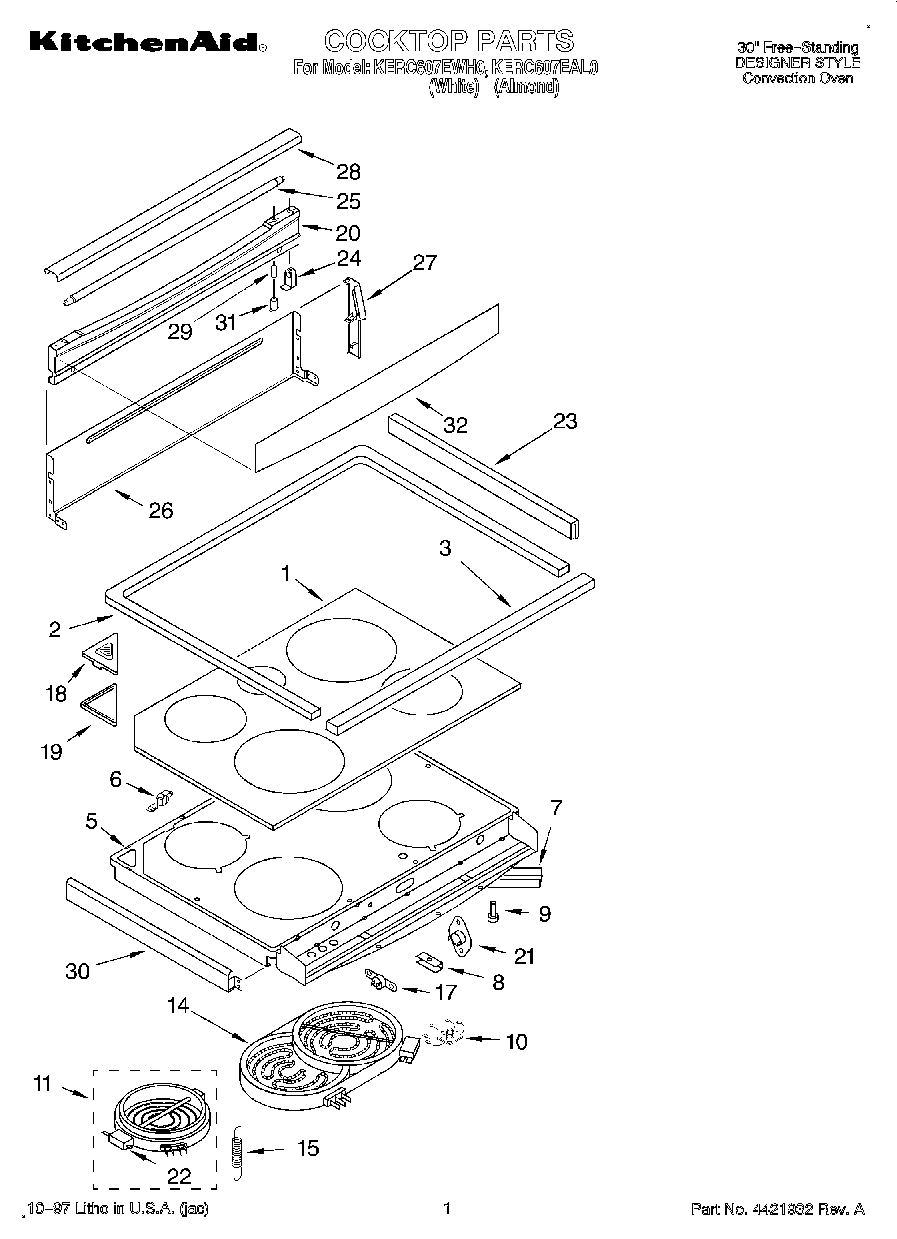

| 1 | Cooktop, Ceran (Almond) |
| 1 | Cooktop, Ceran (White) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Gasket, Console |
| 5 | Support, Element |
| 6 | Bracket, Pivot |
| 6 | WP4159387 Whirlpool Compactor Screw |
| 7 | Brace, Support |
| 8 | Support Clip (4) |
| 8 | Screw, 10-16 x 1 |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | Element, Surface (6`` L.R. 1400W) |
| 11 | Element, Surface (7`` R.F. 1700W) |
| 11 | Element, Surface (9`` L.F. 2400W) |
| 14 | 2500W - RR |
| 15 | Spring (15) |
| 17 | Thermostat SPST (205) |
| 18 | Cover, Vent |
| 19 | Gasket, Vent Cover |
| 20 | Backsplash (Almond) |
| 20 | Backsplash (White) |
| 21 | WP9759944 Whirlpool Thermostat |
| 22 | Limiter, Temp. (1400 W - LR) |
| 22 | Limiter, Temp. (2400 W - LF) |
| 22 | Limiter, Temp (1700W - RF) |
| 23 | Seal, Rubber |
| 24 | Receptacle, Lamp |
| 25 | WP95292 Whirlpool Fluorescent Light Bulb |
| 26 | Cover, Backsplash |
| 27 | Endcap, Backsplash (White (Right)) |
| 27 | (Endcap, Backsplash (Left Hand)) (White) |
| 27 | Endcap, Backsplash (Almond (Right)) |
| 27 | (Endcap, Backsplash (Left Hand)) (Almond) |
| 28 | Cover, Light (White) |
| 28 | Cover, Light (Almond) |
| 29 | Starter, Light |
| 30 | (Trim, Cooktop (Left Hand)) (White) |
| 30 | Trim, Cooktop (Left Hand) (Almond) |
| 30 | Trim, Cooktop (White (Right)) |
| 30 | Trim, Cooktop (Almond (Right)) |
| 31 | Starter, Holder |
| 32 | Glass, Backsplash |
