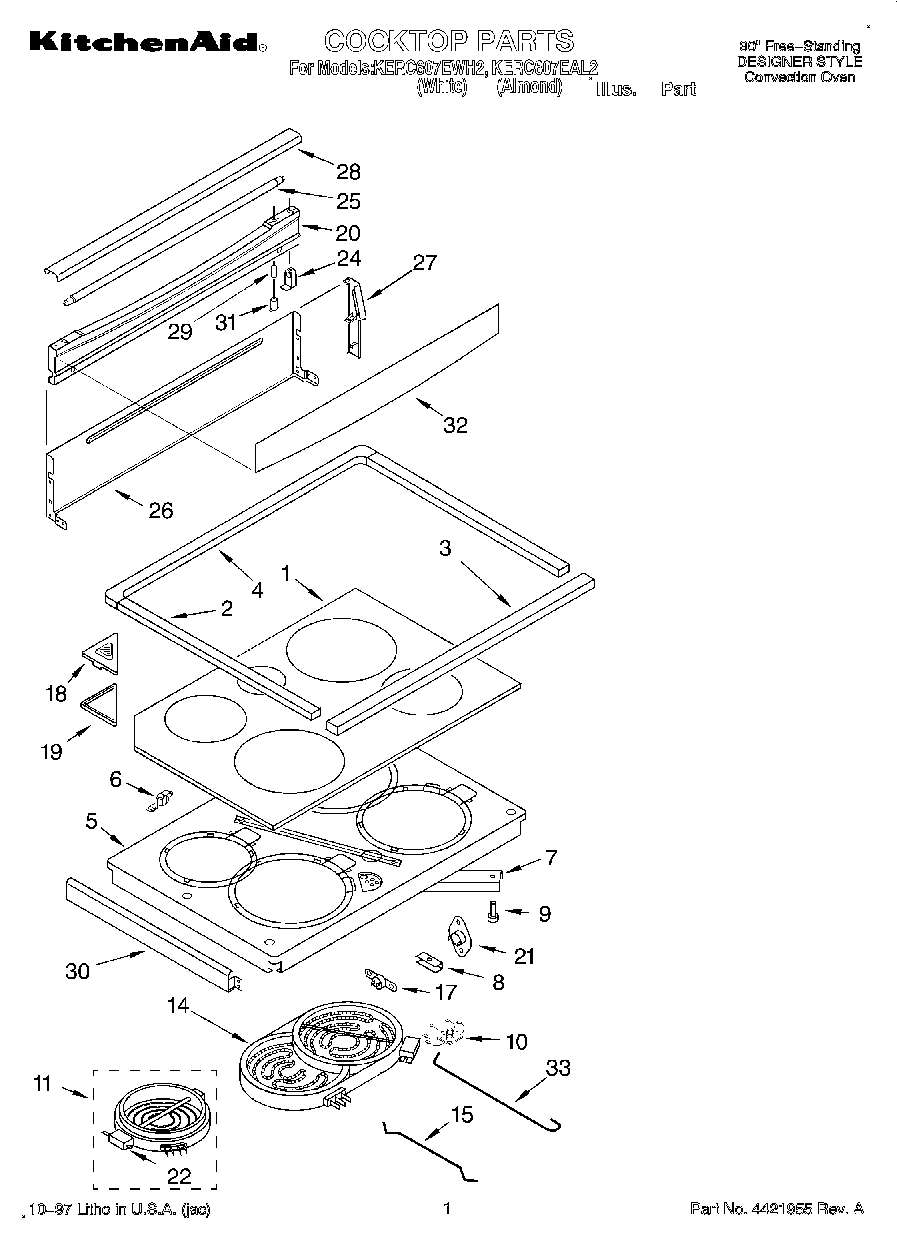

KERC607EAL2 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (White)
1Cooktop, Ceran (Almond)
2WP9780939 Whirlpool Cooktop Gasket
3Gasket, Console
4Rear Gasket
5Support, Element
6Bracket, Pivot
6WP4159387 Whirlpool Compactor Screw
7Brace, Support
8Support Clip (4)
8Screw, 10-16 x 1
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (9“ L.F. 2400W)
11Element, Surface (6“ L.R. 1400W)
142500W – RR
15Rod, Large Ceran Element
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (White)
20Backsplash (Almond)
21WP9759944 Whirlpool Thermostat
22Limiter, Temp. (2400 W – LF)
22Limiter, Temp. (1400 W – LR)
22Limiter, Temp (1700W – RF)
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Back Splash (Screw (4) 10AB x 1/2“)
26Cover, Backsplash
27Endcap, Backsplash (Almond (Right))
27Endcap, Backsplash (White (Right))
27(Endcap, Backsplash (Left Hand)) (White)
27(Endcap, Backsplash (Left Hand)) (Almond)
28Cover, Light (White)
28Cover, Light (Almond)
29Starter, Light
30Trim, Cooktop (Left Hand) (Almond)
30(Trim, Cooktop (Left Hand)) (White)
30Trim, Cooktop (Almond (Right))
30Trim, Cooktop (White (Right))
31Starter, Holder
32Glass, Backsplash
33Rod, Small Ceran Element
