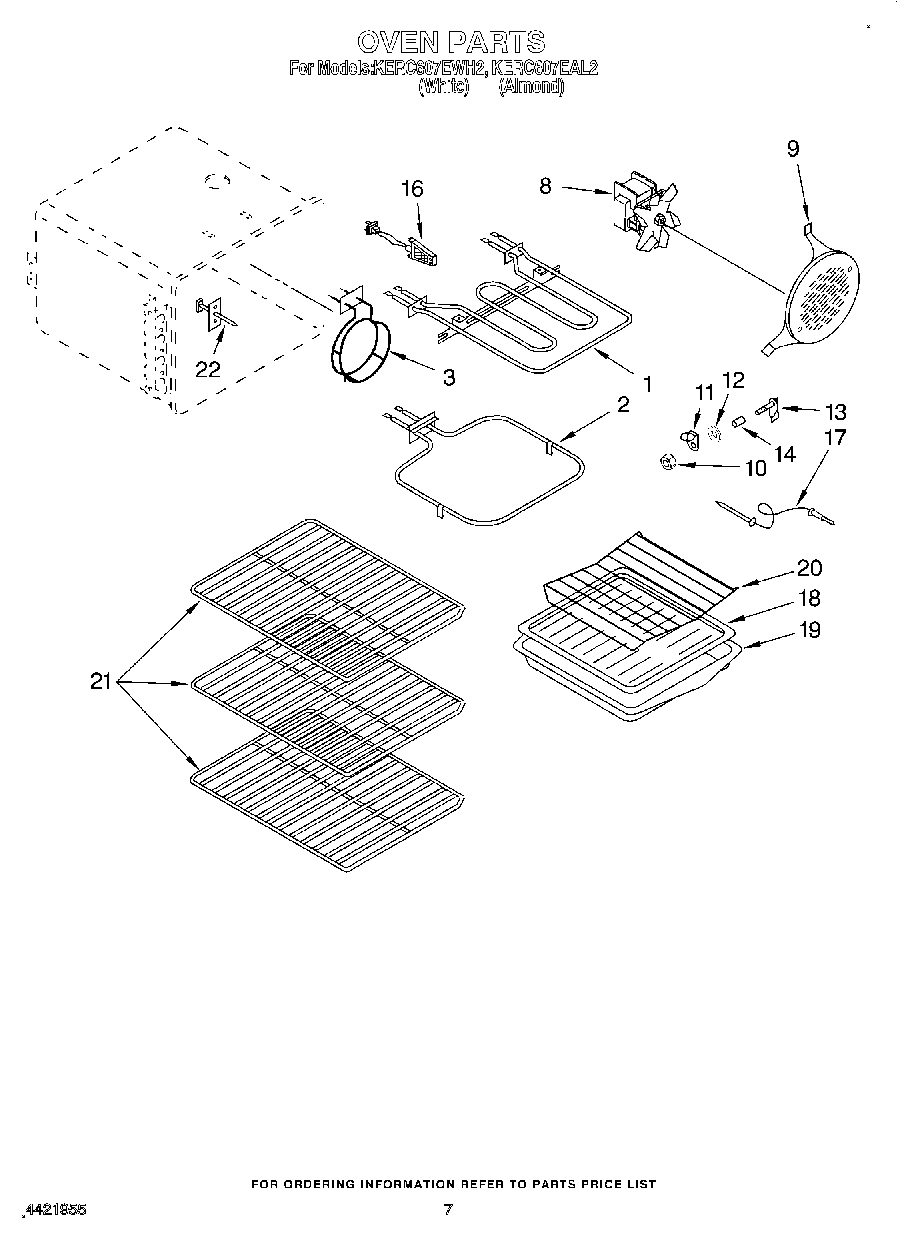

KERC607EAL2 05 – OVEN

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	340184 Whirlpool Screw
3	Screw
3	WPW10280189 Whirlpool Element
8	Fan Assembly
8	Screw (4) 10 x 1/2
9	Baffle, Convection
9	Panel, Control (Screw, (2) 8 x 3/8)
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Gasket, Meat Probe
13	Receptacle, Probe
14	Spacer – Tubing
16	WP4448972 Whirlpool Oven Light
16	WPL 9780806
17	Probe
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Sensor, Heat
