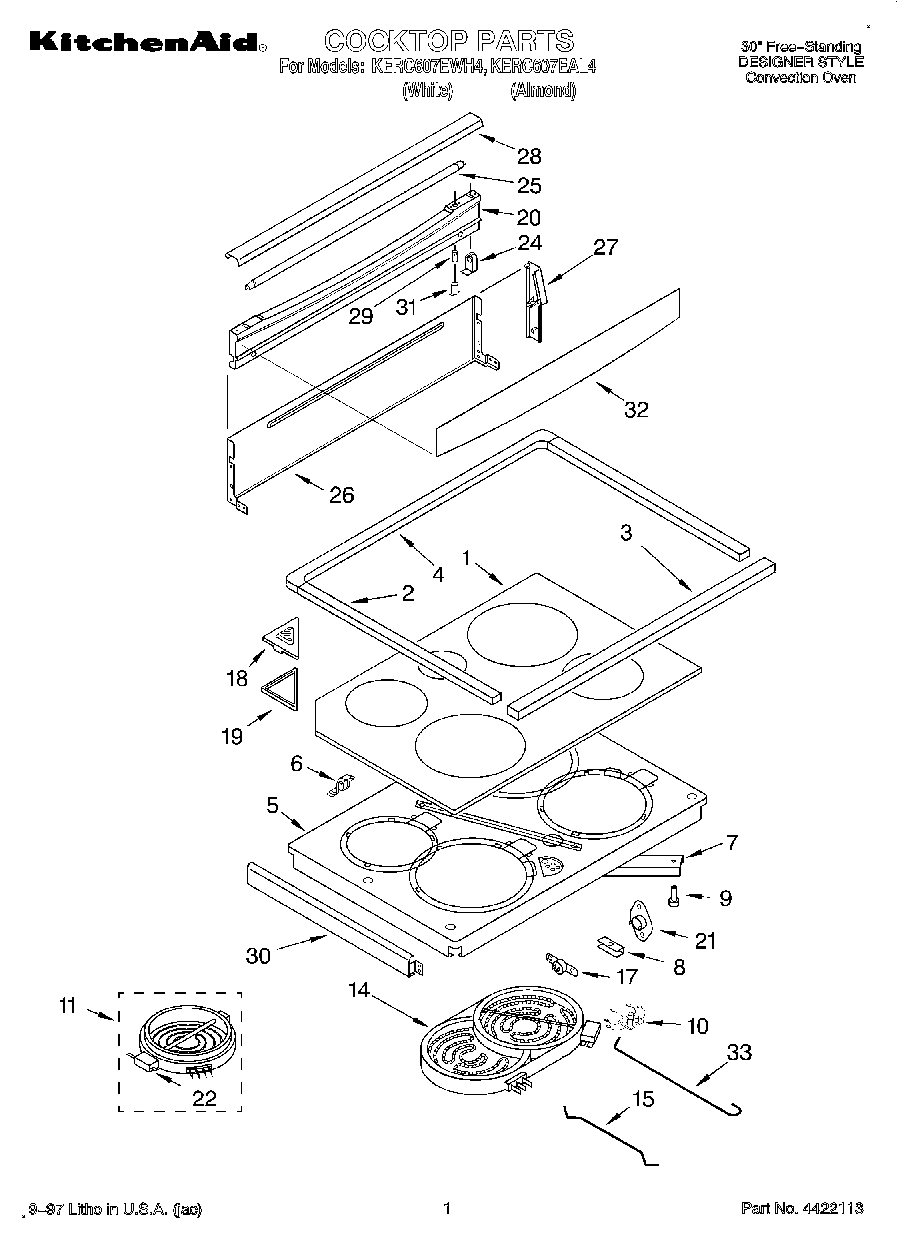

KERC607EAL4 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Almond)
2	WP9780939 Whirlpool Cooktop Gasket
3	Gasket, Console
4	Rear Gasket
5	Support, Element
6	Bracket, Pivot
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, 10-16 x 1
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (9“ L.F. 2400W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
14	2500W – RR
15	Rod, Large Ceran Element
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (Almond)
20	Backsplash (White)
21	WP9759944 Whirlpool Thermostat
22	Limiter, Temp. (2400 W – LF)
22	Limiter, Temp. (1400 W – LR)
22	Limiter, Temp (1700W – RF)
24	Receptacle, Lamp
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Back Splash (Screw (4) 10AB x 1/2“)
26	Cover, Backsplash
27	(Endcap, Backsplash (Left Hand)) (White)
27	Endcap, Backsplash (White (Right))
27	Endcap, Backsplash (Almond (Right))
27	(Endcap, Backsplash (Left Hand)) (Almond)
28	Cover, Light (White)
28	Cover, Light (Almond)
29	Starter, Light
30	Trim, Cooktop (Left Hand) (Almond)
30	(Trim, Cooktop (Left Hand)) (White)
30	WP4159387 Whirlpool Compactor Screw
30	Trim, Cooktop (Almond (Right))
30	Trim, Cooktop (White (Right))
31	Starter, Holder
32	Glass, Backsplash
33	Rod, Small Ceran Element
